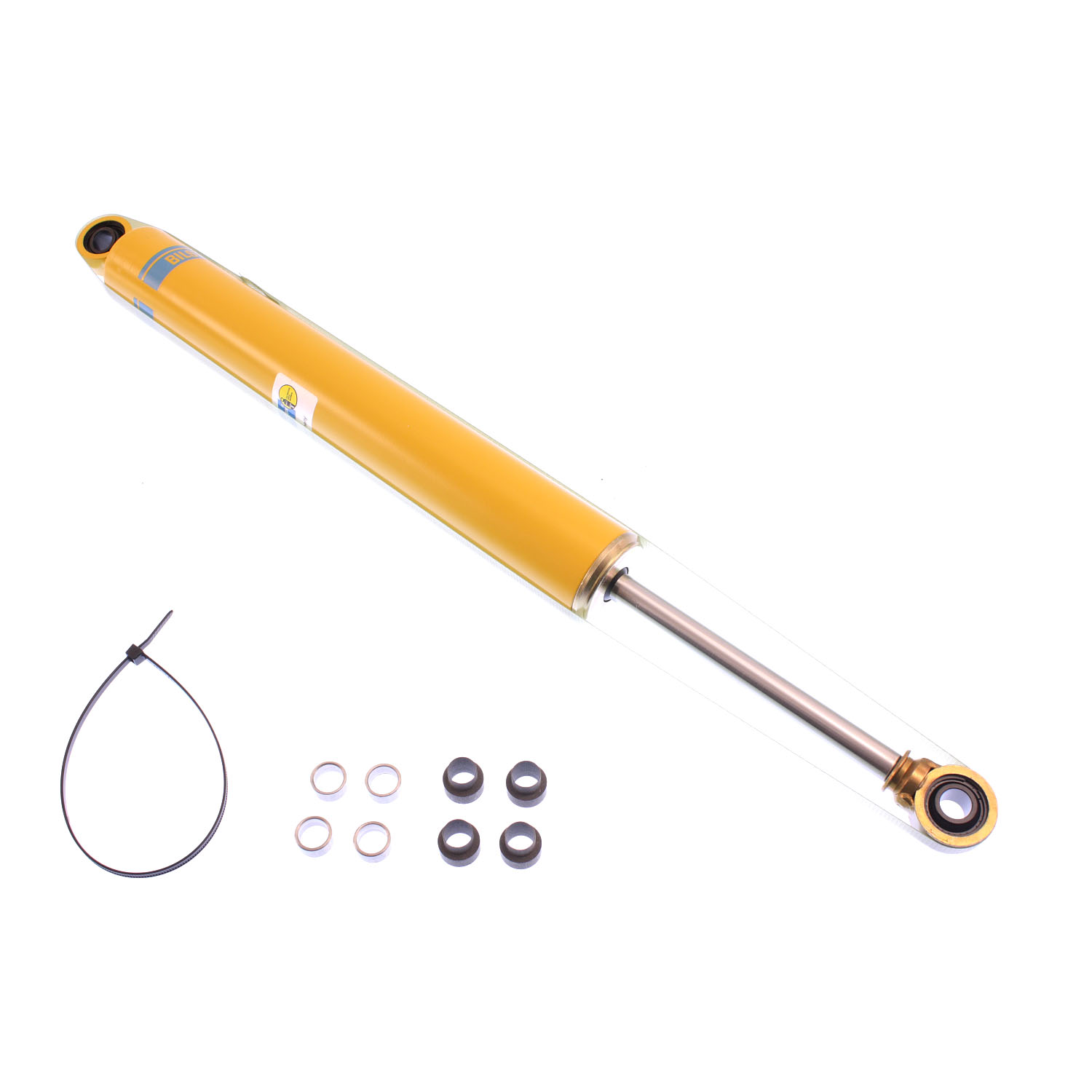

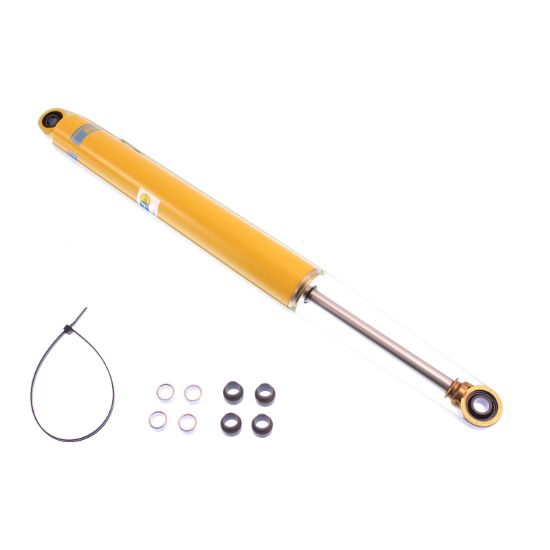

Bilstein Suspension Shock Absorber - F4-B46-0360-H1

M 7100 Classic - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0360-H1
Old price: $130.20
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Products specifications

Attribute name Attribute value
Extended Length (mm) 653.5
Upper Mount Type 1/2in Heim
Reservoir No
Optional Reservoir Clamp N/A
Collapsed Length (IN) 16.06
Collapsed Length (mm) 407.9
Mount Type Eye-to-Eye
Finish Yellow Paint
Series M 7100 Classic
Internal Design Monotube
Body Design Smooth Body (Non-Coilover)
Lower Mount Type 1/2in Heim
Extended Length (IN) 25.73
Compression @0.52m/s 980
Rebound @0.52m/s 2710
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 245.6
Stroke/Travel Length (IN) 9.67
Country of Origin DE
Condition New
Quantity per Application 2
