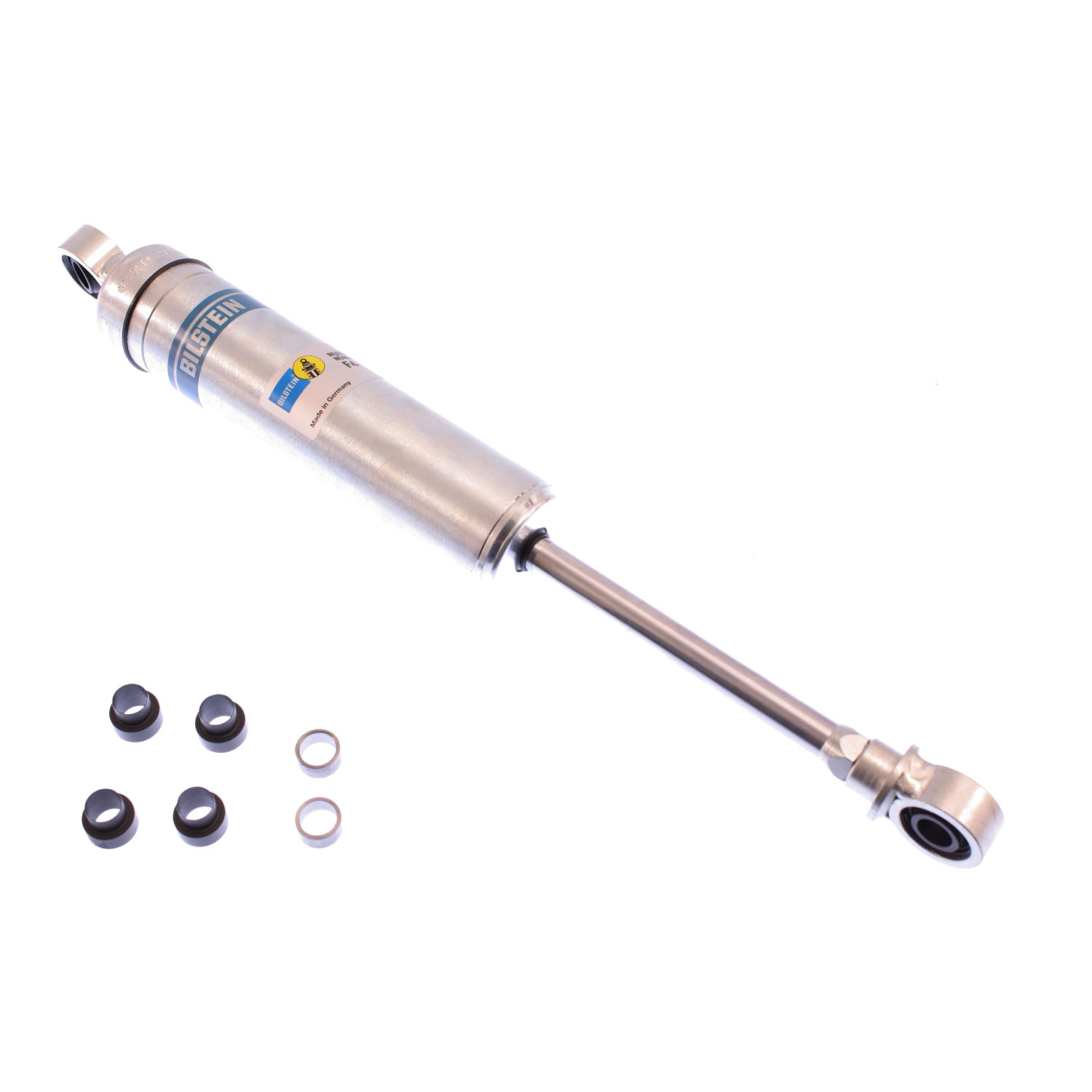

Bilstein Suspension Shock Absorber - F4-B46-0930-H0

M 7100 Classic - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0930-H0
$177.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Application: No Applications

Products specifications

Attribute name Attribute value
Compression @0.52m/s 1600
Series M 7100 Classic
Lower Mount Type 1/2in Heim
Extended Length (mm) 412.5
Collapsed Length (mm) 285.5
Optional Reservoir Clamp N/A
Upper Mount Type 1/2in Heim
Rebound @0.52m/s 3500
Reservoir No
Internal Design Monotube
Extended Length (IN) 16.24
Finish Zinc Plated
Mount Type Eye-to-Eye
Body Design Smooth Body (Coilover)
Collapsed Length (IN) 11.24
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Stroke/Travel Length (mm) 127.0
Shaft Diameter (mm) 14.0
Stroke/Travel Length (IN) 5.00
Country of Origin US
Condition New
Quantity per Application 2
