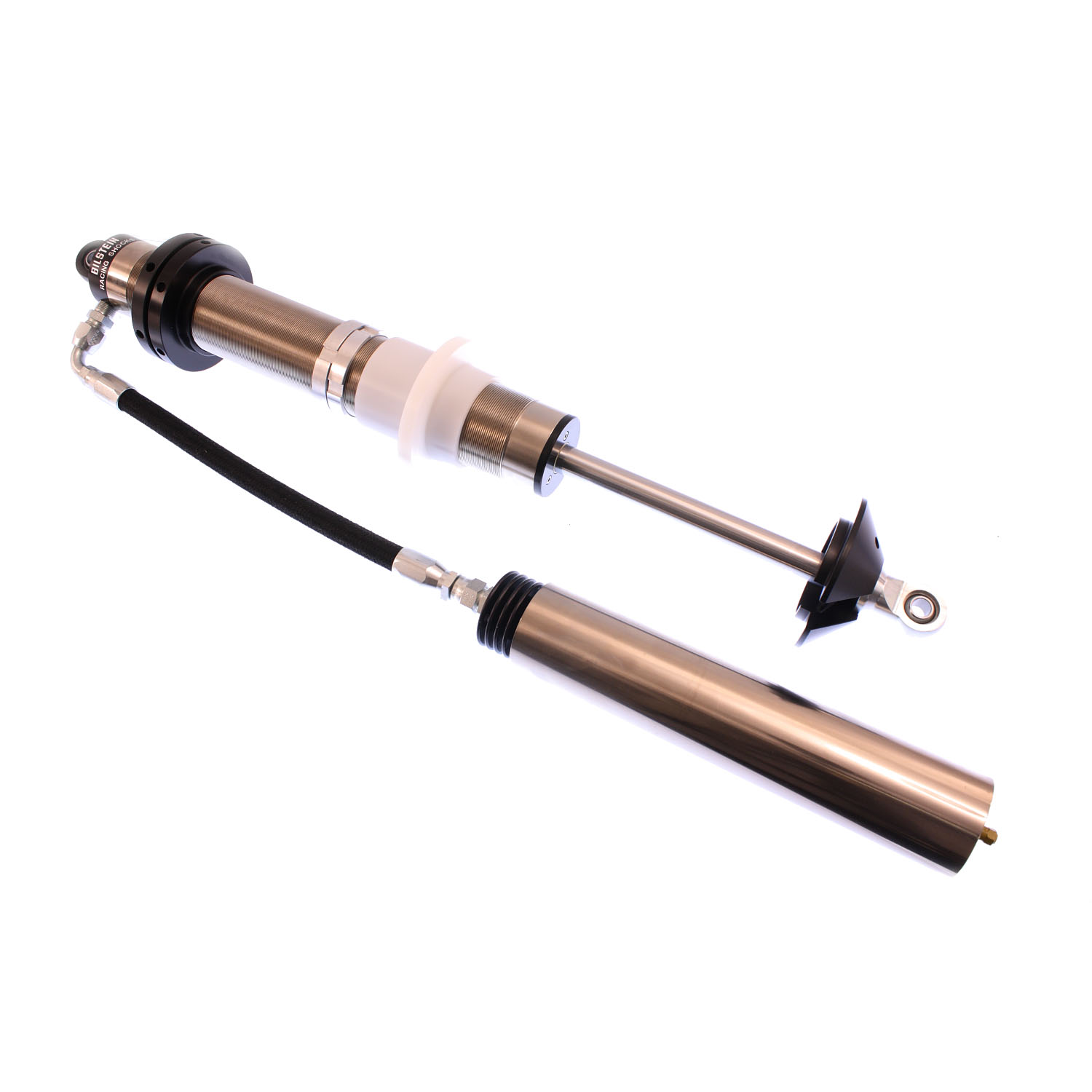

Bilstein Suspension Shock Absorber - F4-BOA-0000355

Name: Bilstein Suspension Shock Absorber - F4-BOA-0000355
SKU: F4-BOA-0000355
Price: 0.01 USD
Availability: OutOfStock

M 9100 (Coilover) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BOA-0000355

Old price: $520.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 9100 (Coilover) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

Products specifications

Attribute name	Attribute value
Body Design	Threaded Body Screw Top (Coilover)
Series	M 9100 (Coilover)
Collapsed Length (IN)	25.47
Collapsed Length (mm)	646.9
Optional Reservoir Clamp	N/A
Extended Length (IN)	38.88
Lower Mount Type	1/2in Heim
Extended Length (mm)	987.6
Finish	Nickel Plated
Mount Type	Eye-to-Eye
Rebound @0.52m/s	Custom
Compression @0.52m/s	Custom
Upper Mount Type	1/2in Heim
Internal Design	Monotube
Reservoir	Yes
Spring Seat Included	Yes
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter	60mm
Stroke/Travel Length (IN)	13.41
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	340.6
Country of Origin	US
Condition	New
Quantity per Application	2
