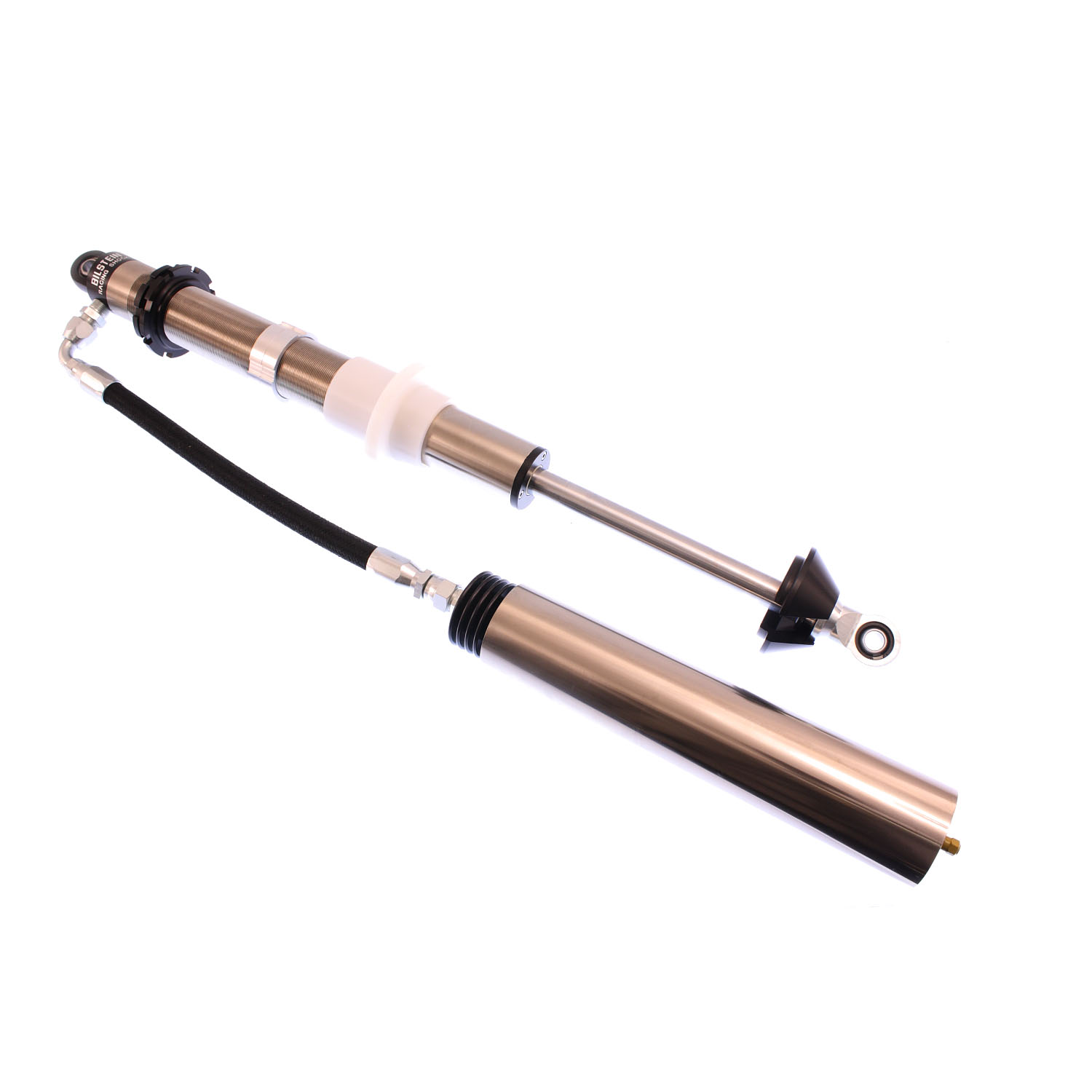

Bilstein Suspension Shock Absorber - F4-BOA-0000394

Name: Bilstein Suspension Shock Absorber - F4-BOA-0000394
SKU: F4-BOA-0000394
Price: 0.01 USD
Availability: OutOfStock

M 9100 (Coilover) - Suspension Shock Absorber

Manufacturer: Bilstein

Manufacturer part number: F4-BOA-0000394

Old price: $468.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein M 9100 (Coilover) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

Products specifications

Attribute name	Attribute value
Body Design	Threaded Body Screw Top (Coilover)
Rebound @0.52m/s	Custom
Lower Mount Type	1/2in Heim
Optional Reservoir Clamp	N/A
Extended Length (IN)	43.37
Reservoir	Yes
Upper Mount Type	1/2in Heim
Collapsed Length (IN)	26.97
Finish	Nickel Plated
Internal Design	Monotube
Compression @0.52m/s	Custom
Mount Type	Eye-to-Eye
Series	M 9100 (Coilover)
Extended Length (mm)	1101.6
Spring Seat Included	Yes
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm)	685.0
Piston Diameter	46mm
Stroke/Travel Length (IN)	16.40
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	416.6
Country of Origin	US
Condition	New
Quantity per Application	2
