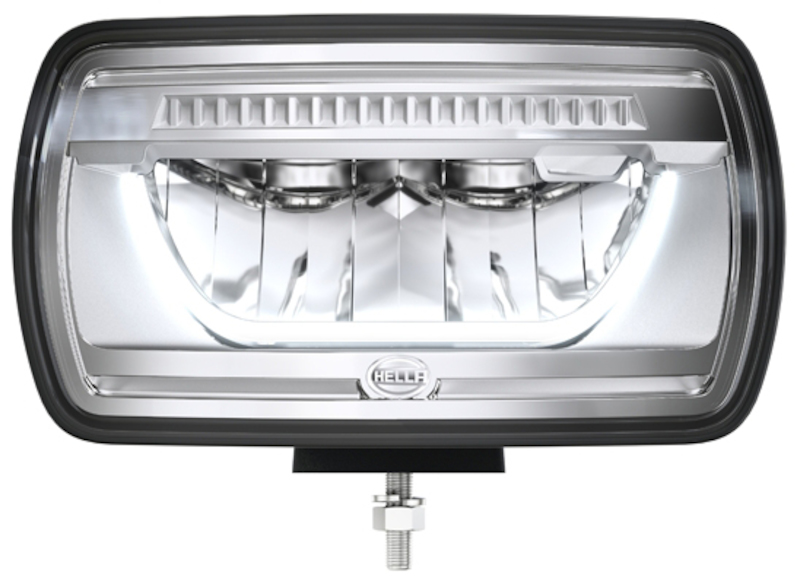

Hella Auxiliary Light - 016773001

HELLA Auxiliary Light 016773001
Manufacturer: Hella
Manufacturer part number: 016773001
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Auxiliary headlights from HELLA are not only technical highlights, but also outstanding design elements that give every off-road vehicle an individual look. Reason enough to provide the headlights with special protection when they are switched off in order to preserve their function and appearance in the long term. With the precisely fitting protective caps with HELLA logo, you kill two birds with one stone: when switched off, they protect the headlights from dirt and thus serve safety, because the light output can be better brought onto the track later.

Products specifications

Attribute name Attribute value

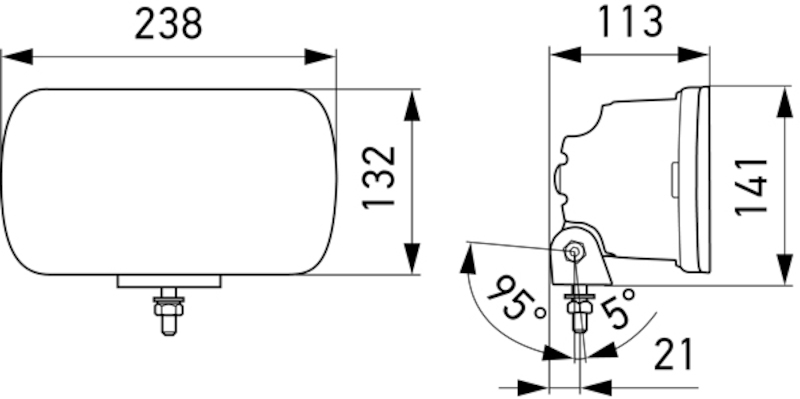

Overall Height [mm] 141
California Proposition 65 Required No
Depth [mm] 113
Supplementary Article/Supplementary Info with LED
Mounting Type Mounting
Cable Length [mm] 800
Diffusing Lens Type Clear Diffusing Lens
Fastening Type Swiveling Mounting Bracket
Height [mm] 132
Housing Material Synthetic
Lens Color Crystal Clear
Grade Type Standard Replacement
Electromagnetic Compatibility (EMC) ECE R149/R10/R148
Fitting Depth [mm] 23
Housing Color Black
Bulb Technology LED
Light Design LED
Shape Rectangle
Width [mm] 238
Assy/Disassy by Qualified Personnel Required! .
Depth (in.) 4.45
Length [inch] 5
Height (in.) 5.2
Overall Height [in] 5.55
Color Temperature [K] 6000
Weight [g] 680
Voltage from [VDC] 9
Width [in] 9.37
Test Mark ECE-R148
IP Rating IP67
Lamp Type LED
Fitting Position Left
Diffusing Lens Material Plastic
ECE Regulation R149
Housing Type Synthetic Material Housing
Light Function with High Beam (LED)
Supplementary Article/Supplementary Info 2 without Cap
Fitting Depth [in] 0.91
Wattage (W) 1.3
Number of light functions 2
Weight [oz] 23.99
Voltage [VDC] 24
Cable Length [in] 31.5
Voltage to [VDC] 32
Voltage 12.00, 24.00
Country of Origin RO
