Hella Fuse Box - 005993112

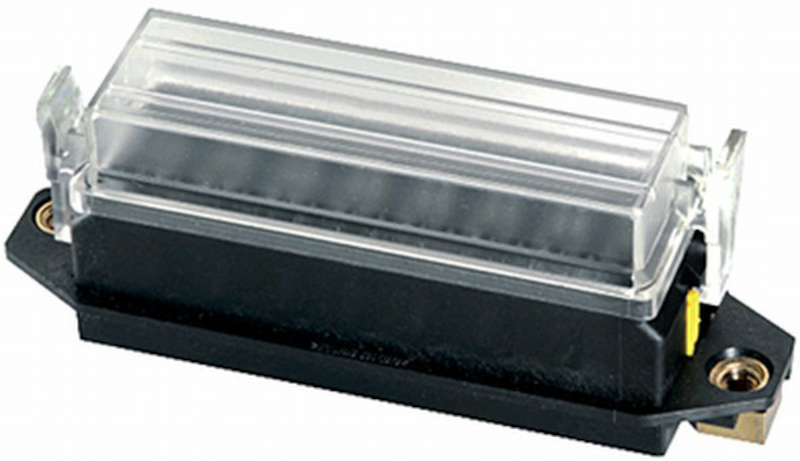

HELLA Fuse Box 005993112
Manufacturer: Hella
Manufacturer part number: 005993112
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

Products specifications

Attribute name Attribute value
California Proposition 65 Required No
Temperature range from [°F] -22
Temperature range from [°C] -30
Assy/Disassy by Qualified Personnel Required! .
Depth (in.) 1.26
Quantity 10
Bolt Distance [mm] 103
Length [mm] 115
Current Strength to [A] 135
Number of connectors 16
Plug Type ID 16 x Axial (6.3 x 0.8)
Temperature range to [°F] 185
Depth [mm] 32
Voltage to [VDC] 32
Bolt Distance [in] 4.06
Length (in.) 4.53
Height [mm] 42.5
Socket Width [mm] 6.3
Number of pins 8
Temperature range to [°C] 85
Color Black
Housing Color Black
Plug Type Blade Terminal
Gender Female
Terminal Gender Female
Fuse Type for ATO Fuse
IP Rating IP23
Housing Material PA 66 GF 30
Shape Rectangular
Contact Surface Tin-Plated
Terminal Quantity 12
Terminal Type Blade
Country of Origin SK
