ICON Vehicle Dynamics Coilover Set - 58615

Name: ICON Vehicle Dynamics Coilover Set - 58615
SKU: 58615
Price: 1518.35 USD
Availability: OutOfStock

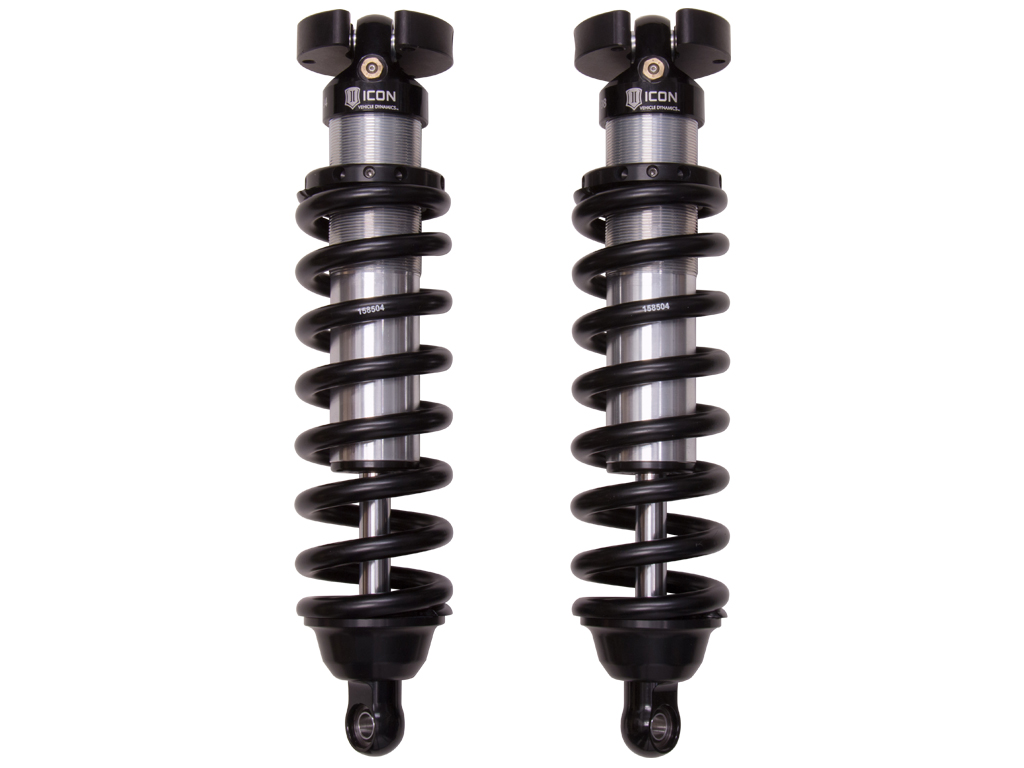

96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58615

Old price: $1,594.27

Price: $1,518.35

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
AAP_UDA_12	EA
AAP_UDA_22	1
Adjustable Compression	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
Add-On Part	58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 158508 - COIL SPRING 1400.0300.0700 BLACK, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	19.85
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252004 - ECONOMY NEEDLE CHARGING TOOL, 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252010 - 2.5 IFP REBUILD KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 611019 - COILOVER HARDWARE KIT PAIR, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.36
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Damping	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	14.5
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Country of Origin	US
Condition	New
