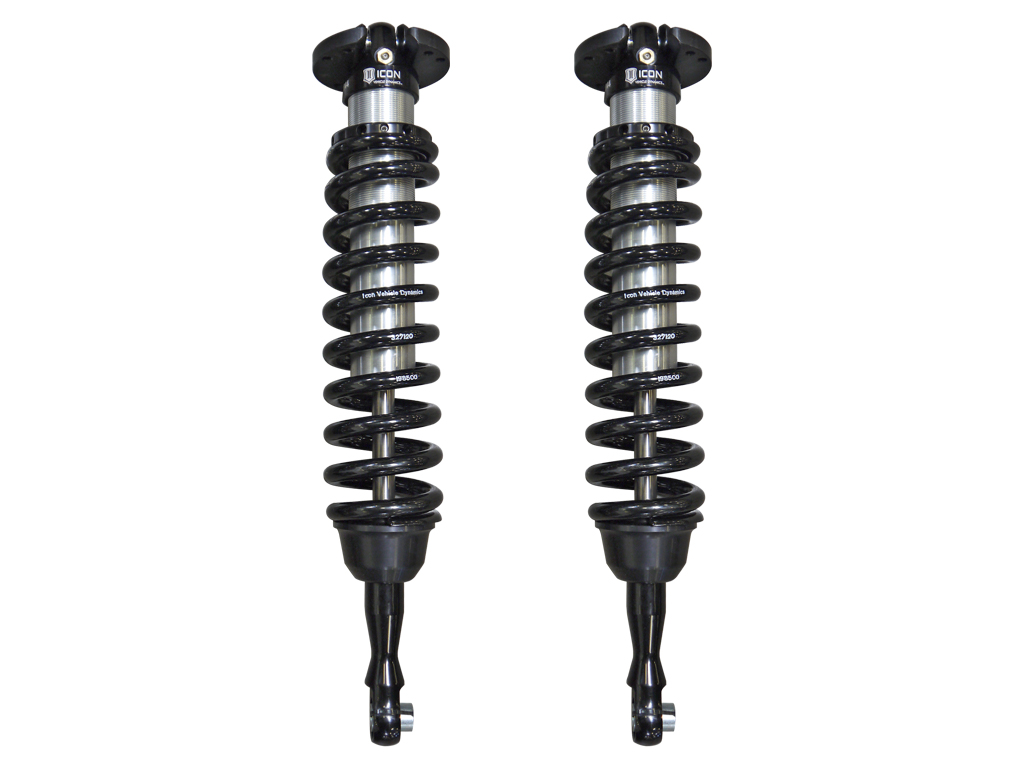

ICON Vehicle Dynamics Coilover Set - 58650

Name: ICON Vehicle Dynamics Coilover Set - 58650
SKU: 58650
Price: 1559.95 USD
Availability: OutOfStock

07-21 TUNDRA/08-22 SEQUOIA 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58650

Old price: $1,637.95

Price: $1,559.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 51046 - 07-21 TUNDRA/08-21 LC200/08-22 SEQUOIA BUMP STOP SPACER KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	18.88
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	25.43
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	1
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	611025 - 07 TUNDRA CO HARDWARE KIT PAIR, 252010 - 2.5 IFP REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	6.55
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
