ICON Vehicle Dynamics Coilover Set - 58716C

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
96-02 4RUNNER 2.5 VS EXT TRAV RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58716C
Old price: $2,314.99
$2,204.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

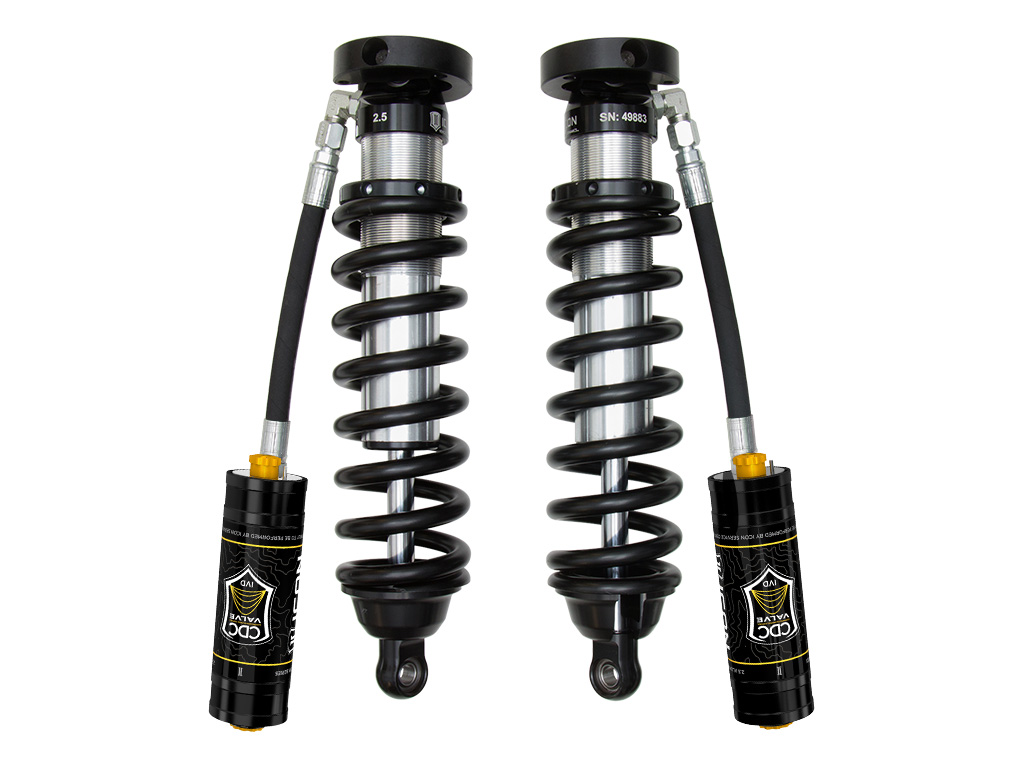

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 1996-2002 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Cylinder Finish Cadmium Plated
Dust Shield Included No
Active or Passive Suspension Passive
Cylinder Material Steel
Add-On Part 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 158508 - COIL SPRING 1400.0300.0700 BLACK, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 14.5
Cylinder Color Silver
Damping Adjustment Type Manual
Damping Type Oil
Extended Length 19.85
Front Spring Rate 650
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum, Steel
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 611019 - COILOVER HARDWARE KIT PAIR, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate 650
Spring Rate Type Linear
Travel Length 5.36
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
🚗 Compatible with
7 vehicles are compatible with this product · 1996–2002
