ICON Vehicle Dynamics Coilover Set - 58735E

Name: ICON Vehicle Dynamics Coilover Set - 58735E
SKU: 58735E
Price: 2785.07 USD
Availability: OutOfStock

05-23 TACOMA EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58735E

Old price: $2,924.32

Price: $2,785.07

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

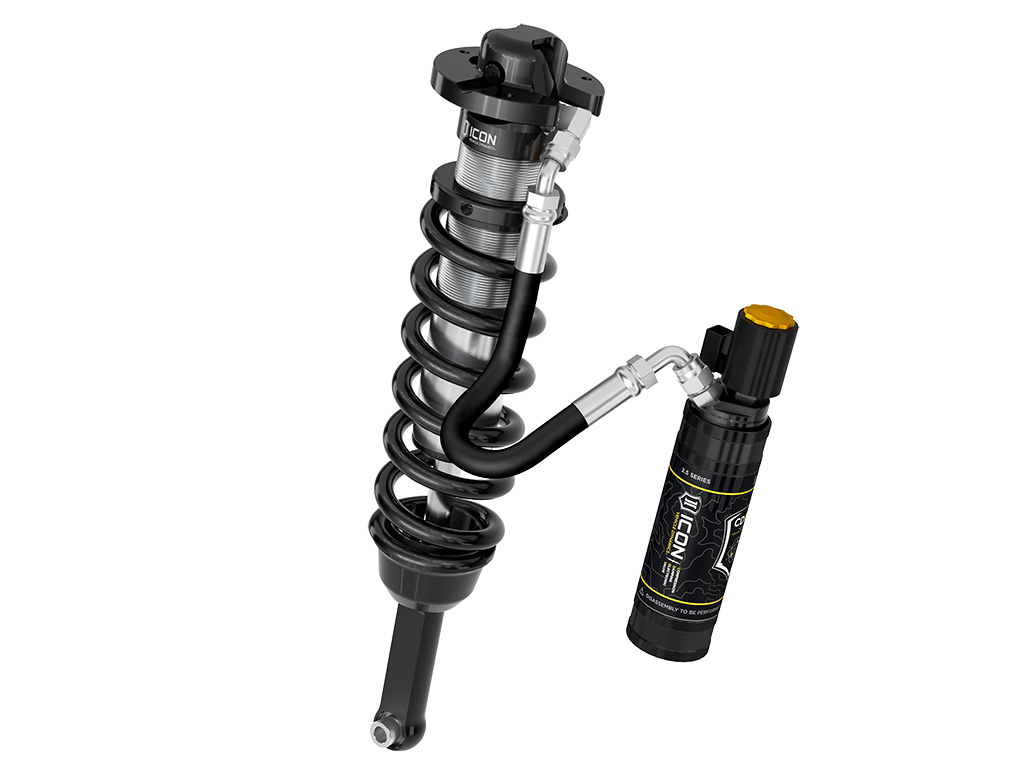

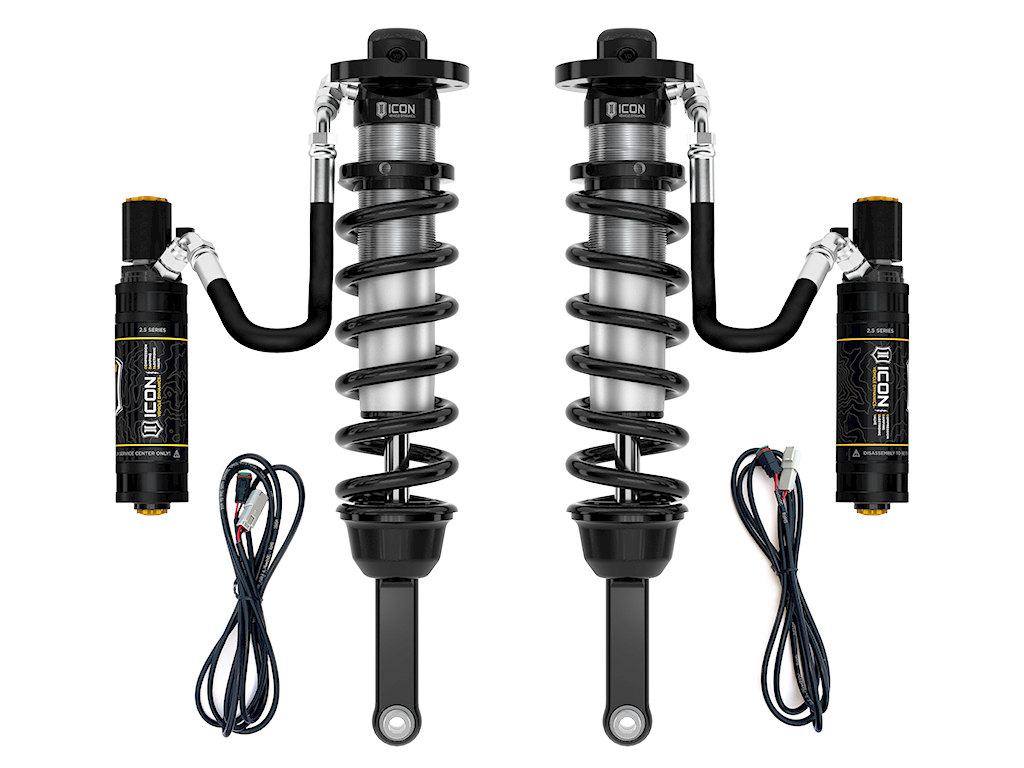

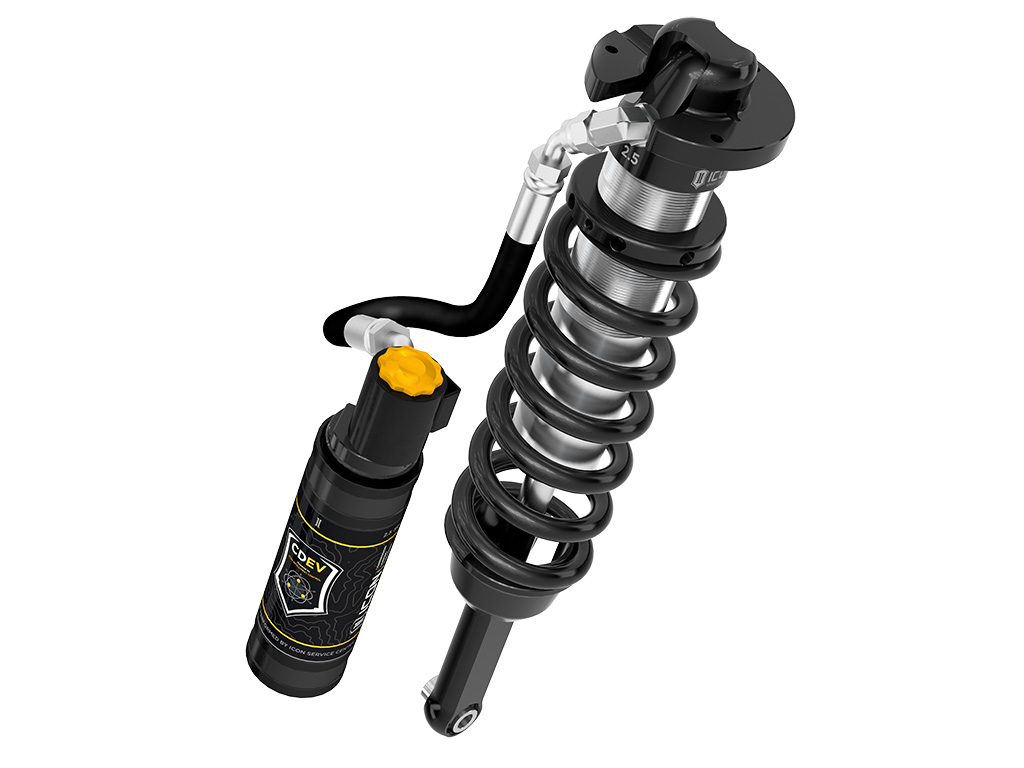

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Active
Add-On Part	51045 - TOYOTA .25” BUMP STOP SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 53507 - 05-15 TACOMA IIC INSTALL KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 53502 - 16-23 TACOMA IIC INSTALL KIT, 57826EP - 05-23 TACOMA RXT REAR 2.5 VS RR CDEV PAIR, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 611019 - COILOVER HARDWARE KIT PAIR, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.16
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.42
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Electronic
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.57
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Country of Origin	US
Condition	New
