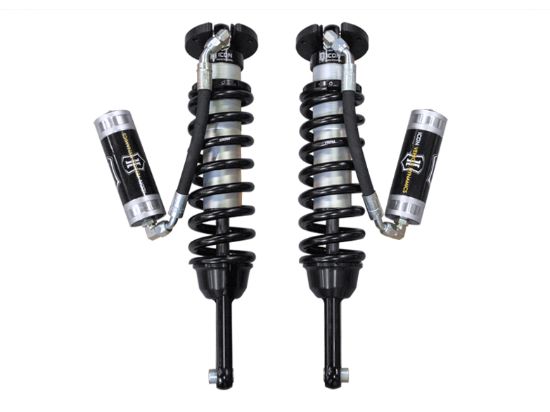

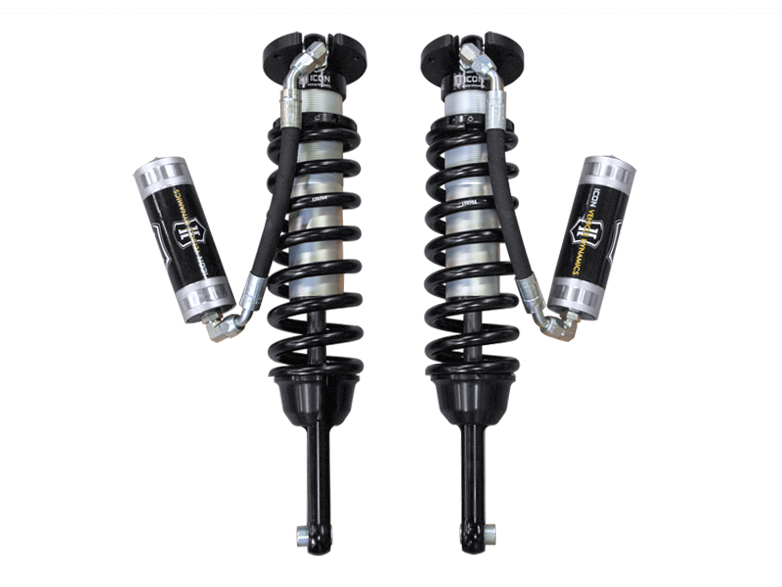

ICON Vehicle Dynamics Coilover Set - 58747

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS RR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58747
Old price: $1,998.31
$1,903.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_4 55
AAP_UDA_12 EA
AAP_UDA_22 1
Active or Passive Suspension Passive
Add-On Part 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 158508 - COIL SPRING 1400.0300.0700 BLACK, 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 17.42
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Extended Length 22.57
Front Spring Rate 650
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum
Maximum Lift 3.5
Maximum Ride Height Raising Distance 3.5
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 191016 - 7.5" FINNED RESI UPGRADE KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611019 - COILOVER HARDWARE KIT PAIR, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.16
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
