ICON Vehicle Dynamics Coilover Set - 58747E-700

Name: ICON Vehicle Dynamics Coilover Set - 58747E-700
SKU: 58747E-700
Price: 2972.27 USD
Availability: OutOfStock

10-24 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT 700LB

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58747E-700

Old price: $3,120.88

Price: $2,972.27

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

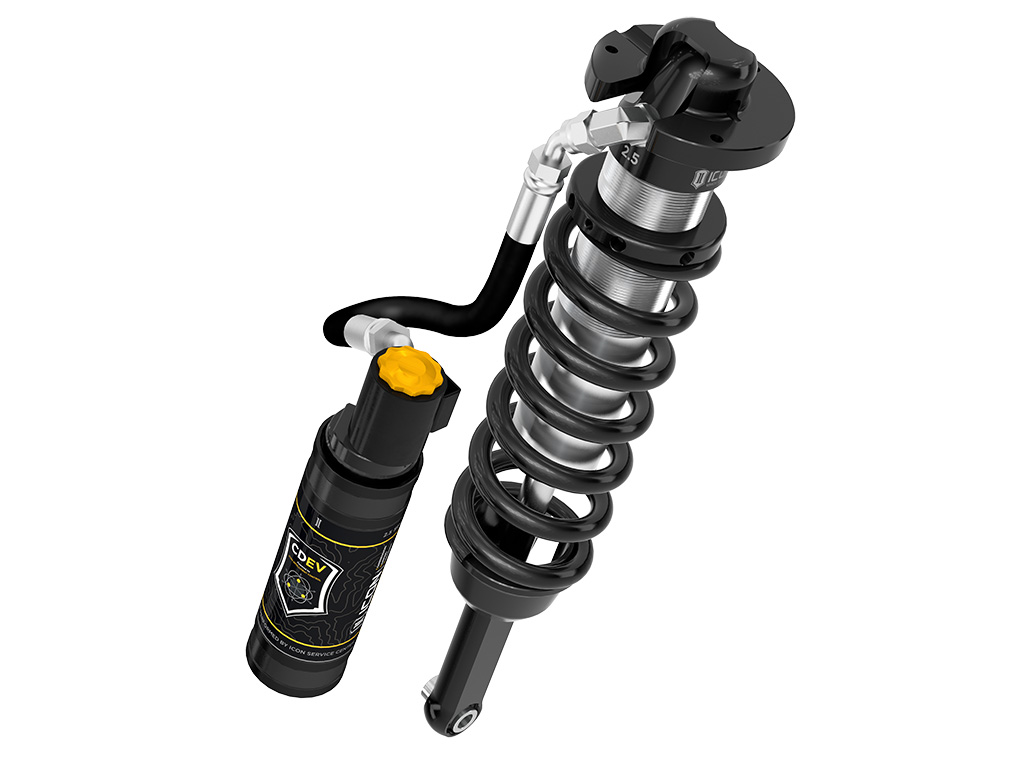

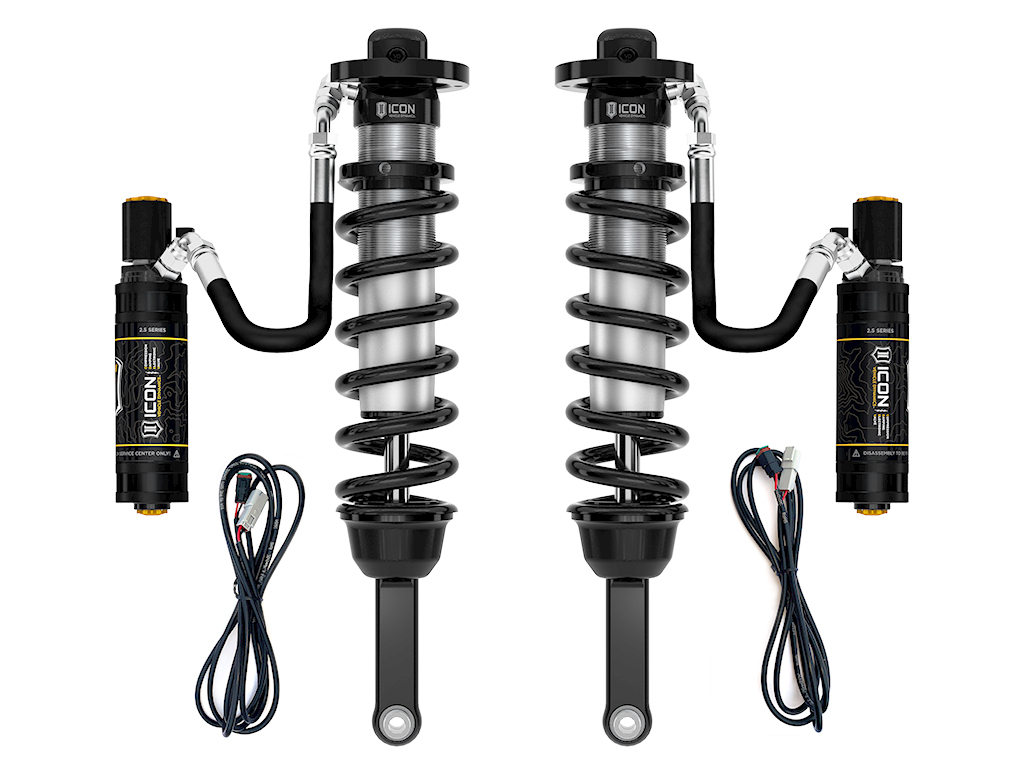

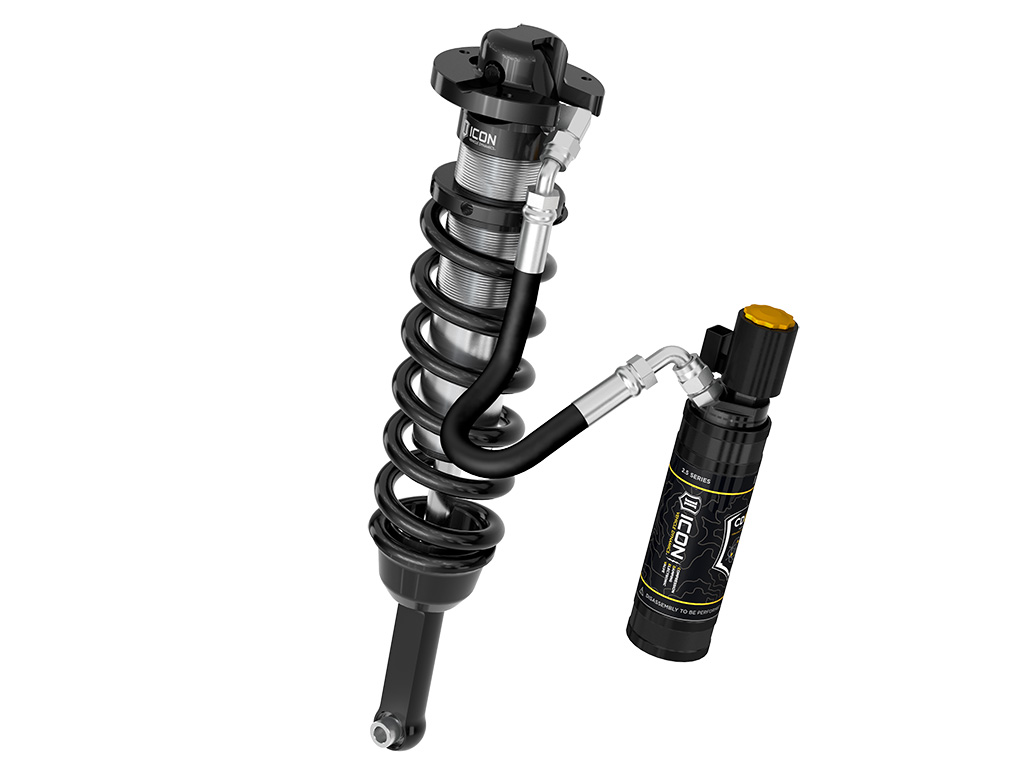

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Active
Add-On Part	53504 - 10-24 4RUNNER IIC INSTALL KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 57810EP - 10-24 4RUNNER 1-3" REAR 2.5 VS RR CDEV PAIR, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 252012 - -4 TO -10 HOSE SHIELD KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.42
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Electronic
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.57
Front Spring Rate	700
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.16
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
