ICON Vehicle Dynamics Coilover Set - 58761C

22-23 LC 300 2.5 VS RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58761C
Old price: $2,511.55
$2,391.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

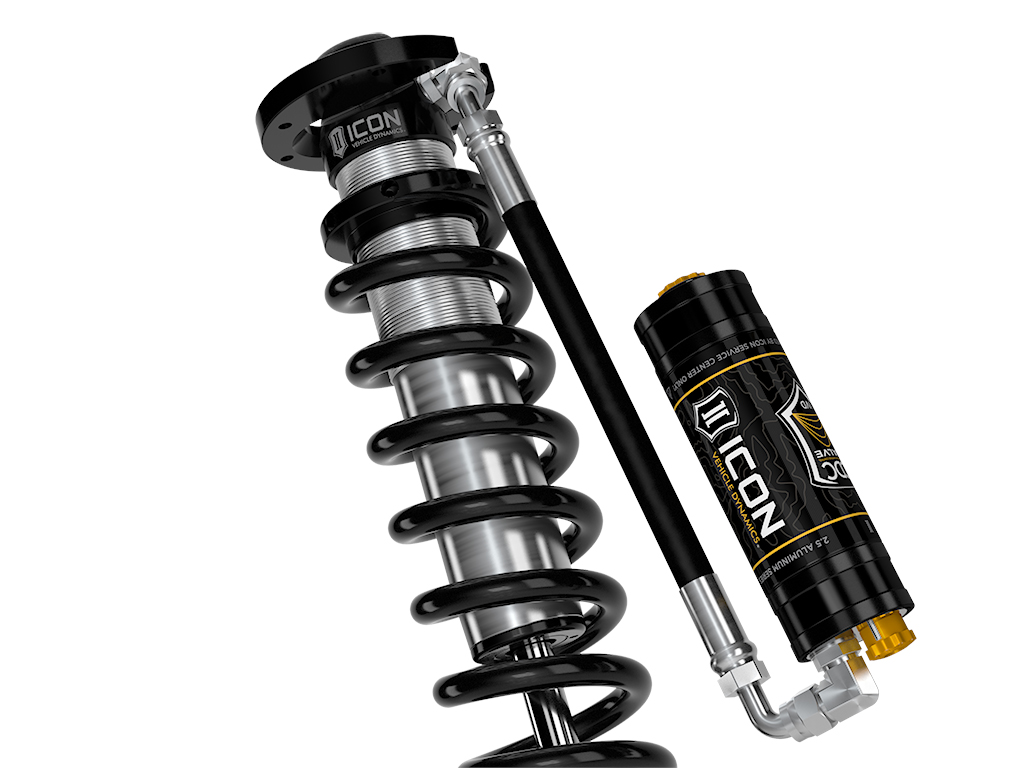

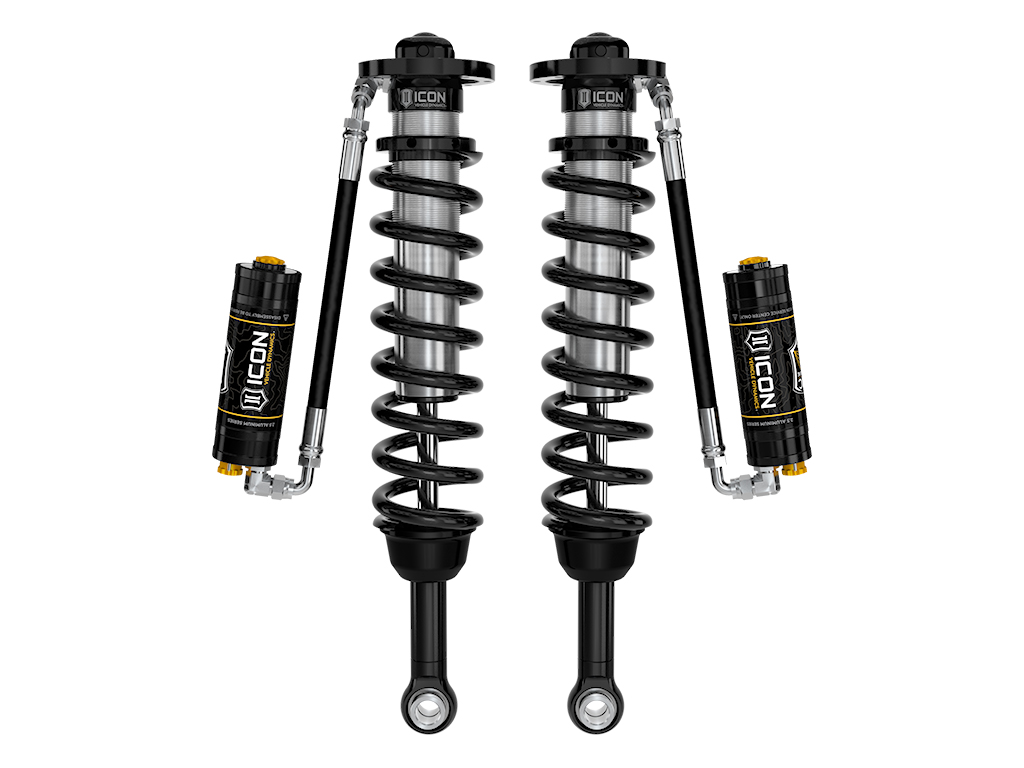

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.

Application: ICON 22-23 LC 300 2.5 VS RR CDCV COILOVER KIT

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Add-On Part 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 19
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Adjustment Type Manual
Damping Type Oil
Dust Shield Included No
Extended Length 25.56
Front Spring Rate 550
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 1
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point CENTER OF EYELET
Shock Absorber Rod End Measuring Point Top of Mounting Plate
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 6.56
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
