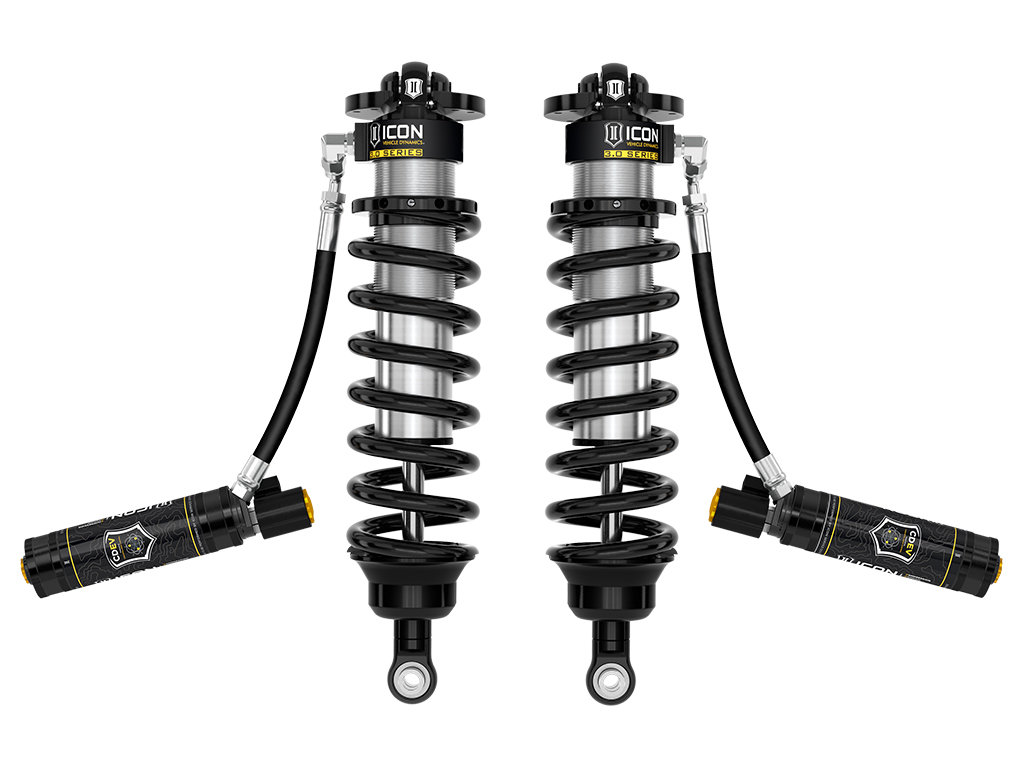

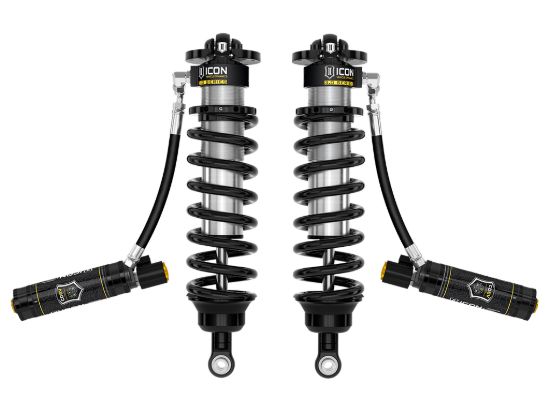

ICON Vehicle Dynamics Coilover Set - 58775E

22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58775E

Old price: $4,149.55

Price: $3,951.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON's 3.0 Series Coilovers with CDEV for 2022-2025 Toyota Tundra and 2023-2025 ToyotaSequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Dust Shield Included	No
Add-On Part	57845EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR, 53508 - 22-25 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT, 57840EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.5 VS CDEV RR PAIR, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	3
Compressed Length	16.38
Cylinder Color	Gray
Cylinder Finish	Ceramic Coated
Cylinder Material	Steel
Damping Adjustment Type	Electronic
Damping Type	Oil
Extended Length	22.04
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3.25
Maximum Ride Height Raising Distance	3.25
Minimum Lift	1.25
OEM Wheels & Tires Fitment	Yes
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Spring Color	Black
Coil-Over Springs Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Adjustable Compression	Yes
Active or Passive Suspension	Active
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.67
Upper Mount Type	Mounting Plate
Valving Type	Linear, Digressive
Country of Origin	US
Condition	New
