ICON Vehicle Dynamics Coilover Set - 61721

05-25 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 61721

Old price: $2,581.59

Price: $2,458.66

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

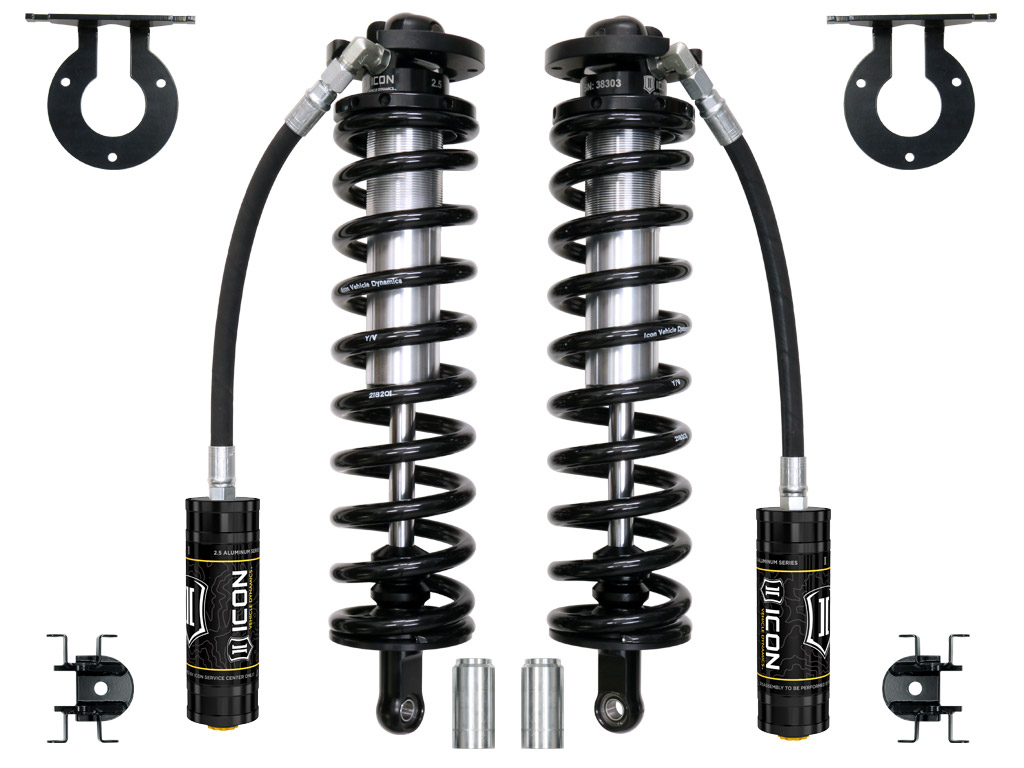

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2025 F-250 and F-350 Super Duty pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Dust Shield Included	No
Adjustable Damping	No
Adjustable Compression	No
Add-On Part	64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 64035 - 05-16 FSD ADJ TRACK BAR W/FK ROD END, 198001 - BILLET SPANNER WRENCH KIT, 64038 - 17-25 FSD ADJ TRACK BAR KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Active or Passive Suspension	Passive
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Adjustable Rebound	No
Damping Type	Oil
Extended Length	22.56
Front Spring Rate	400
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	5.5
Maximum Ride Height Raising Distance	5.5
Minimum Lift	4
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611019 - COILOVER HARDWARE KIT PAIR, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter	0.875
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Compressed Length	14.6
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Valving Type	Digressive
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	7.96
Upper Mount Type	Mounting Plate
Country of Origin	US
Condition	New
