ICON Vehicle Dynamics Coilover Set - 61723

Name: ICON Vehicle Dynamics Coilover Set - 61723
SKU: 61723
Price: 2382.95 USD
Availability: OutOfStock

23-25 F250/F350 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 61723

Old price: $2,502.10

Price: $2,382.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

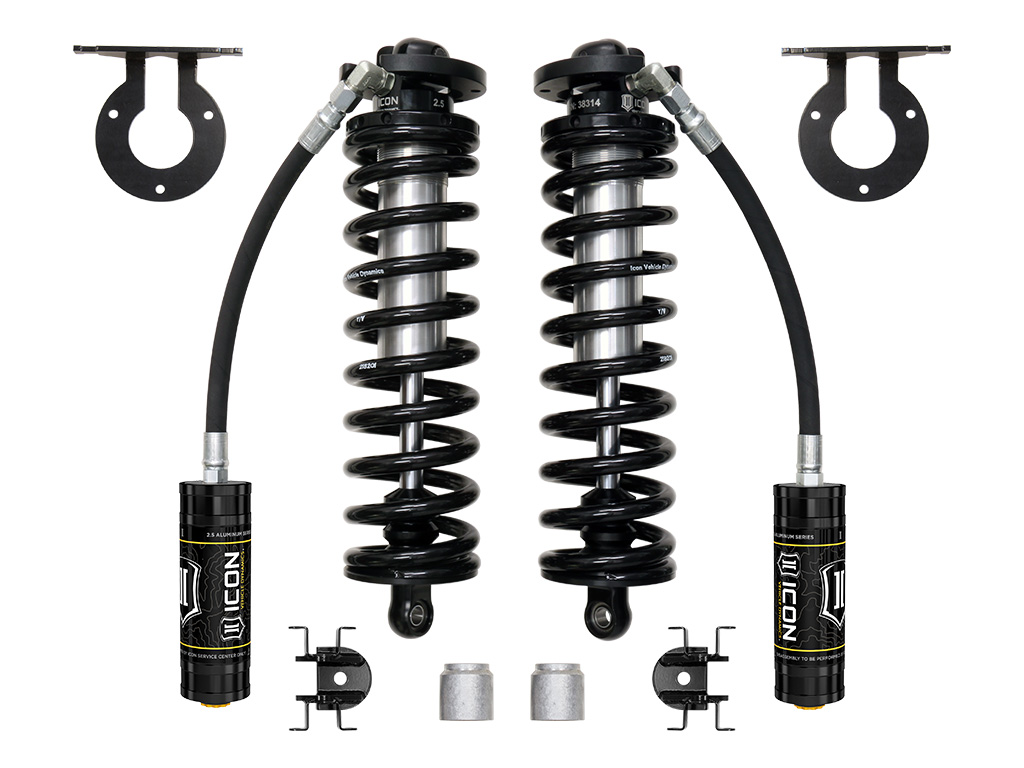

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2023-2025 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Add-On Part	61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT, 64038 - 17-25 FSD ADJ TRACK BAR KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Maximum Lift	3.75
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611019 - COILOVER HARDWARE KIT PAIR, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	6.96
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Height	Yes
Adjustable Ride Height	Yes
Alignment Cams Included	No
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	12.75
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Maximum Ride Height Raising Distance	3.75
Minimum Lift	2.5
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	19.71
Front Spring Rate	400
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Country of Origin	US
Condition	New
