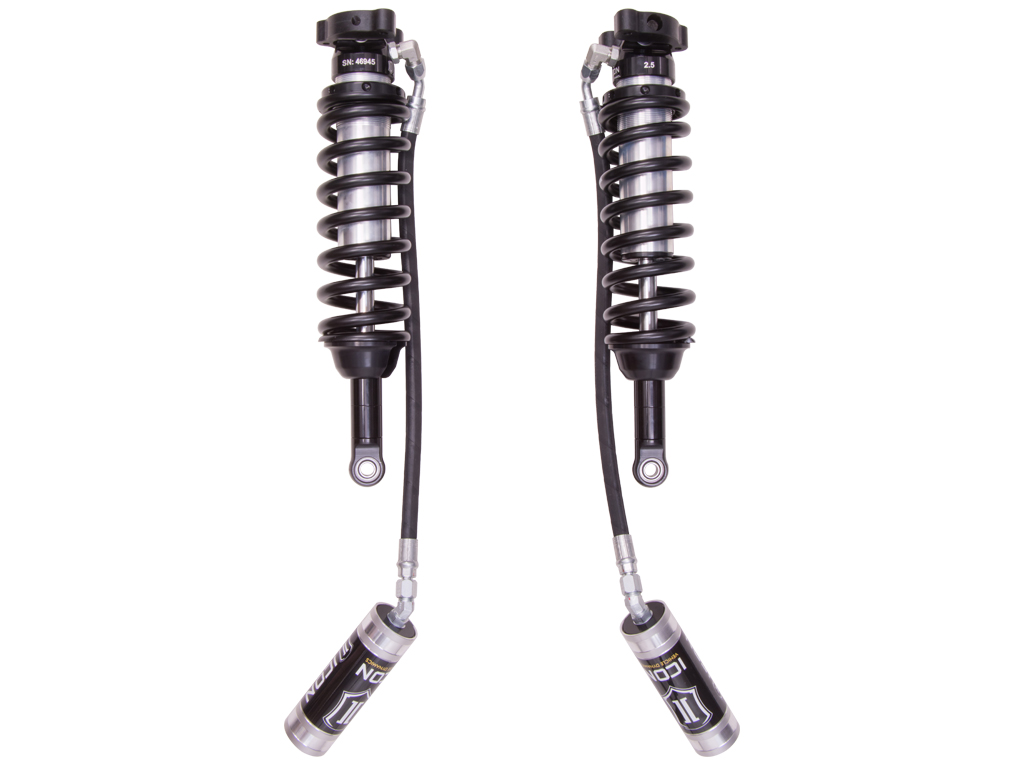

Picture of ICON Vehicle Dynamics Coilover Set - 71510
Picture of ICON Vehicle Dynamics Coilover Set - 71510 Picture of ICON Vehicle Dynamics Coilover Set - 71510

ICON Vehicle Dynamics Coilover Set - 71510

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
15-23 COLORADO 2.5 VS RR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 71510
Old price: $2,024.51
$1,928.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

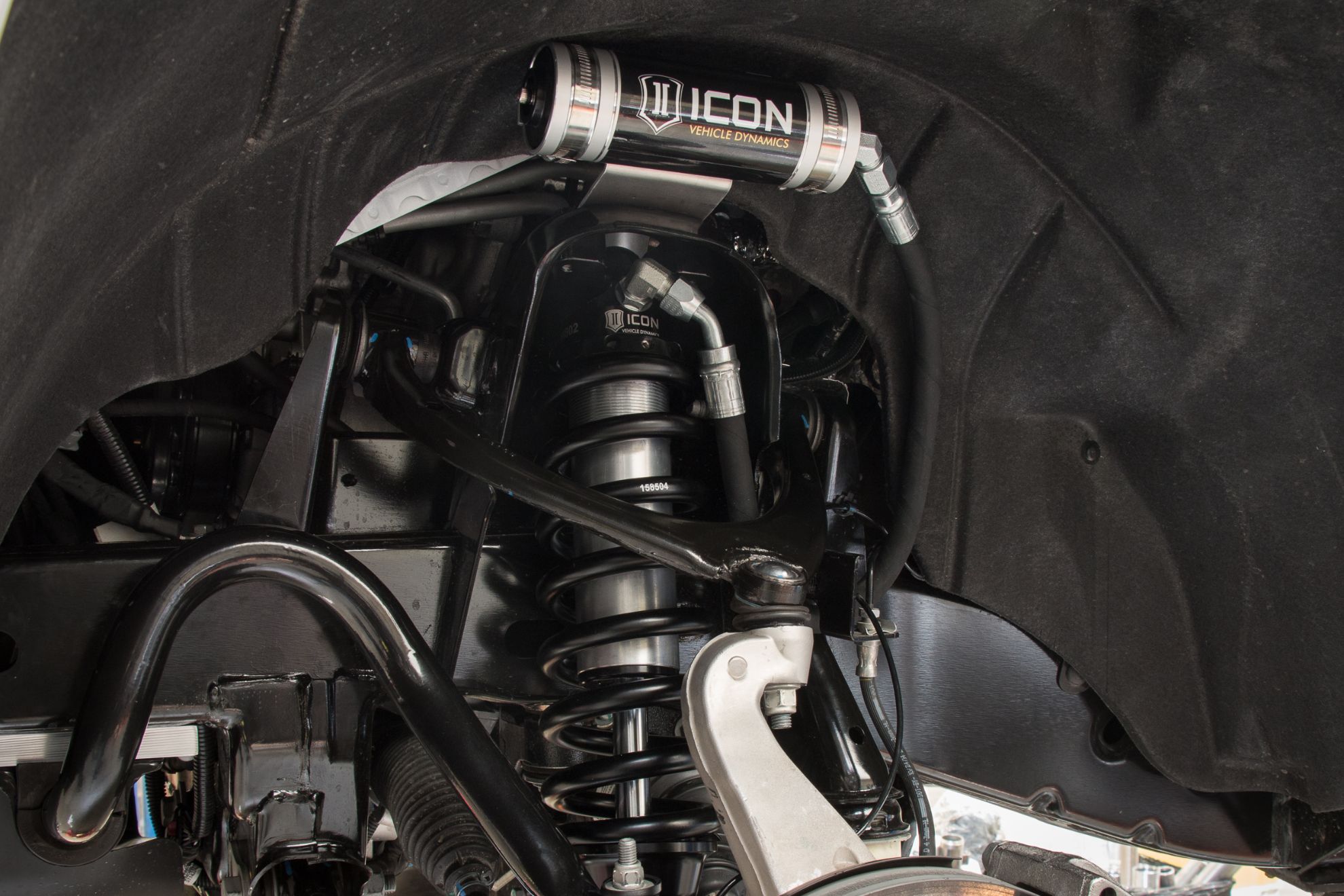

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2015-2022 Chevrolet Colorado/GMC Canyon truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoir ensures optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Recommended Aftermarket Tires 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 611019 - COILOVER HARDWARE KIT PAIR, 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate 650
Spring Rate Type Linear
Travel Length 4.95
Upper Mount Type Mounting Plate
Valving Type Digressive
Active or Passive Suspension Passive
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 16.05
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Extended Length 21
Front Spring Rate 650
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum, Steel
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift .75
OEM Wheels & Tires Fitment Yes
Country of Origin US
Condition New
