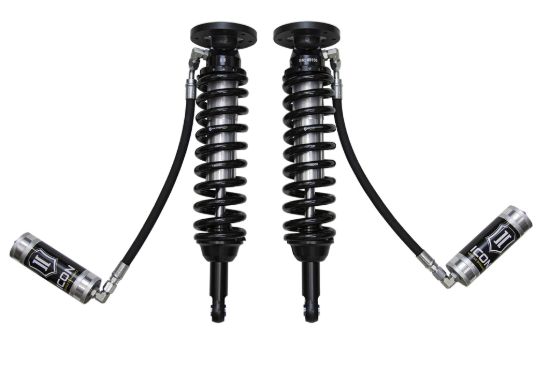

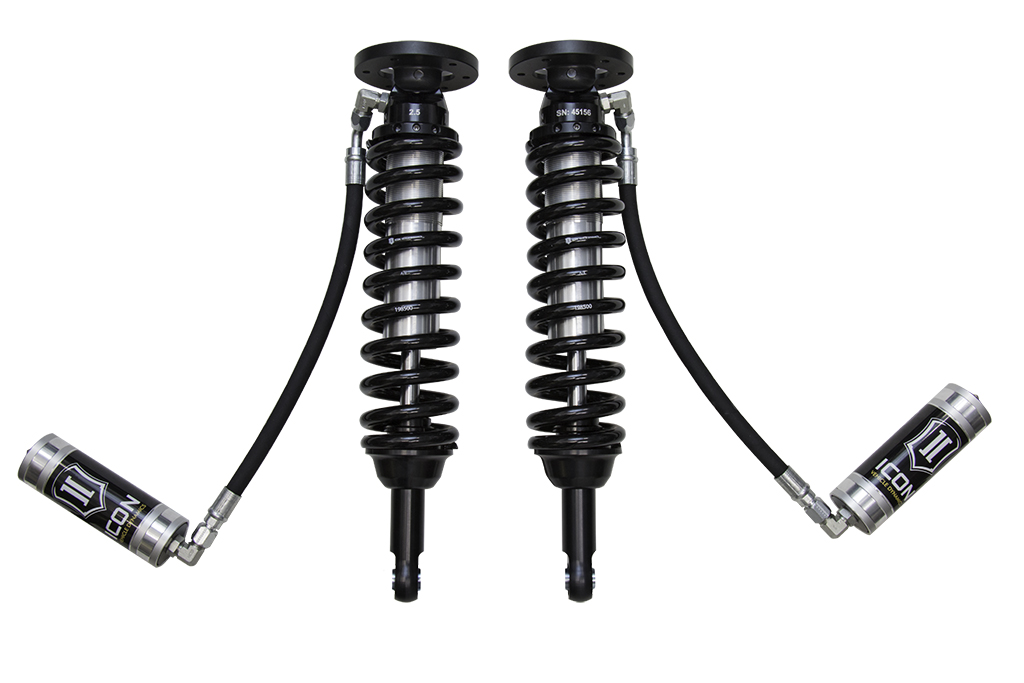

ICON Vehicle Dynamics Coilover Set - 91805

Name: ICON Vehicle Dynamics Coilover Set - 91805
SKU: 91805
Price: 1929.15 USD
Availability: InStock

09-13 F150 2WD 1.75-2.63" 2.5 VS RR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91805

Old price: $2,025.61

Price: $1,929.15

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2009-2013 Ford F150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 2WD.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Material	Steel
Maximum Lift	2.63
Active or Passive Suspension	Passive
Internal Construction Type	Single Tube
Add-On Part	98505DJ - 09-20 F150/14-20 EXPEDITION BILLET UCA DJ KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 98500DJ - 04-20 F150/14-UP EXPEDITION TUBULAR UCA DJ KIT
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Lower Mount Type	Eyelet
Maximum Ride Height Raising Distance	2.63
Minimum Lift	1.75
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252001 - 2.5 FIXED SPANNER WRENCH, 611019 - COILOVER HARDWARE KIT PAIR, 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.37
Upper Mount Type	MOUNT PLATE
Valving Type	Digressive
Adjustable Compression	No
Country of Origin	US
Condition	New
