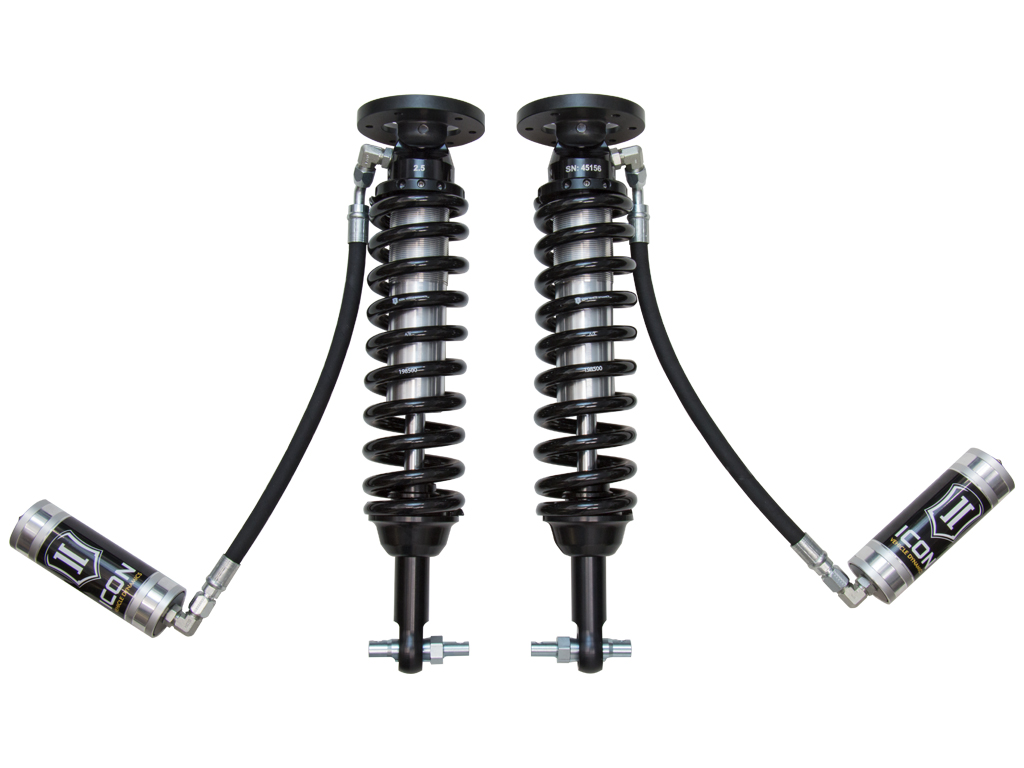

ICON Vehicle Dynamics Coilover Set - 91815

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
2014 F150 2WD 1.75-2.63" 2.5 VS RR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 91815
Old price: $2,074.75
$1,975.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

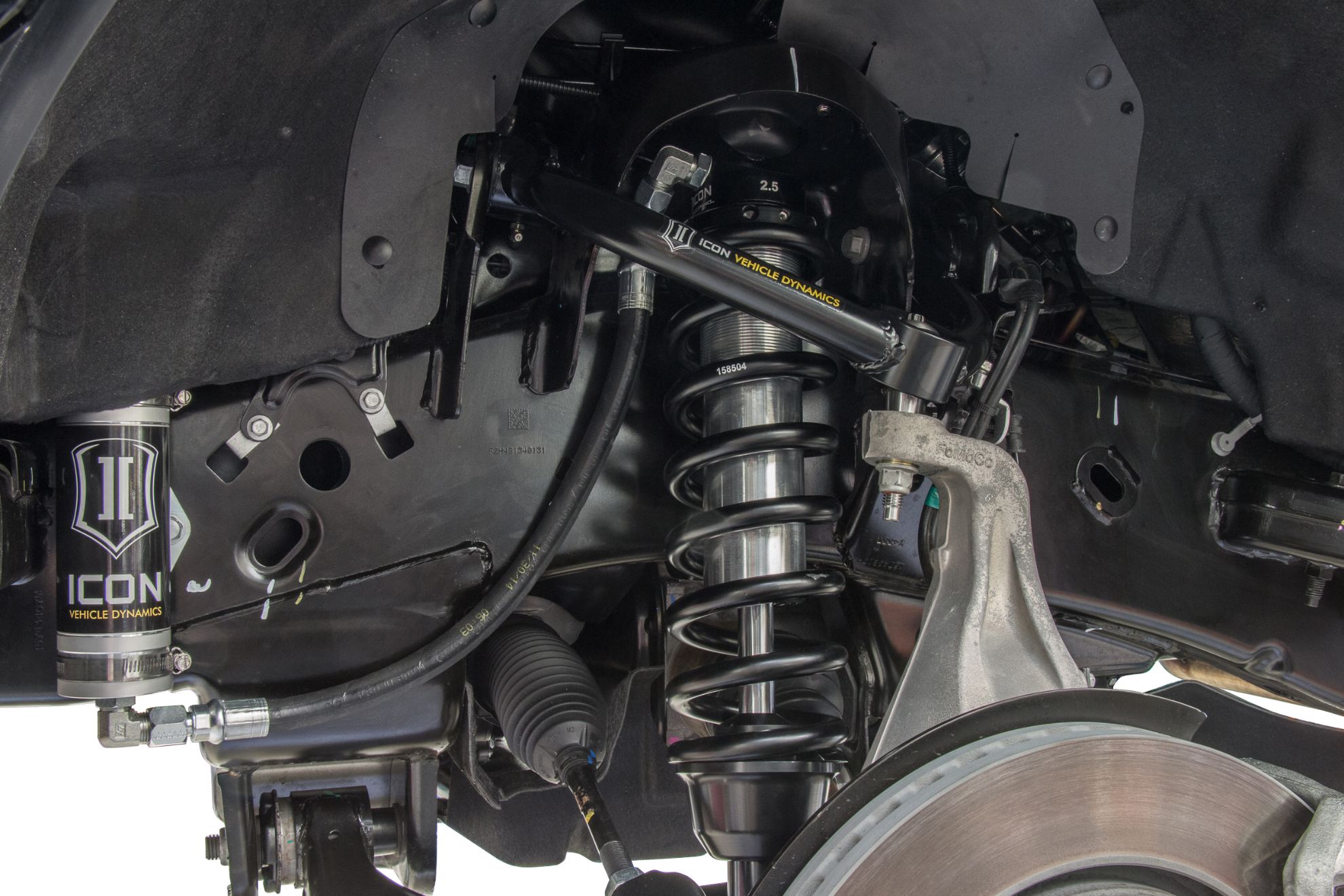

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2014 Ford F150 2WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 17.24
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Extended Length 22.61
Front Spring Rate 600
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Aluminum, Steel
Maximum Lift 2.63
Maximum Ride Height Raising Distance 2.63
Minimum Lift 1.75
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Active or Passive Suspension Passive
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.37
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
🚗 Compatible with
1 vehicles are compatible with this product · 2014–2014
