ICON Vehicle Dynamics Coilover Set - 91818C

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-23 F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 91818C
Old price: $2,463.17
$2,345.88
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

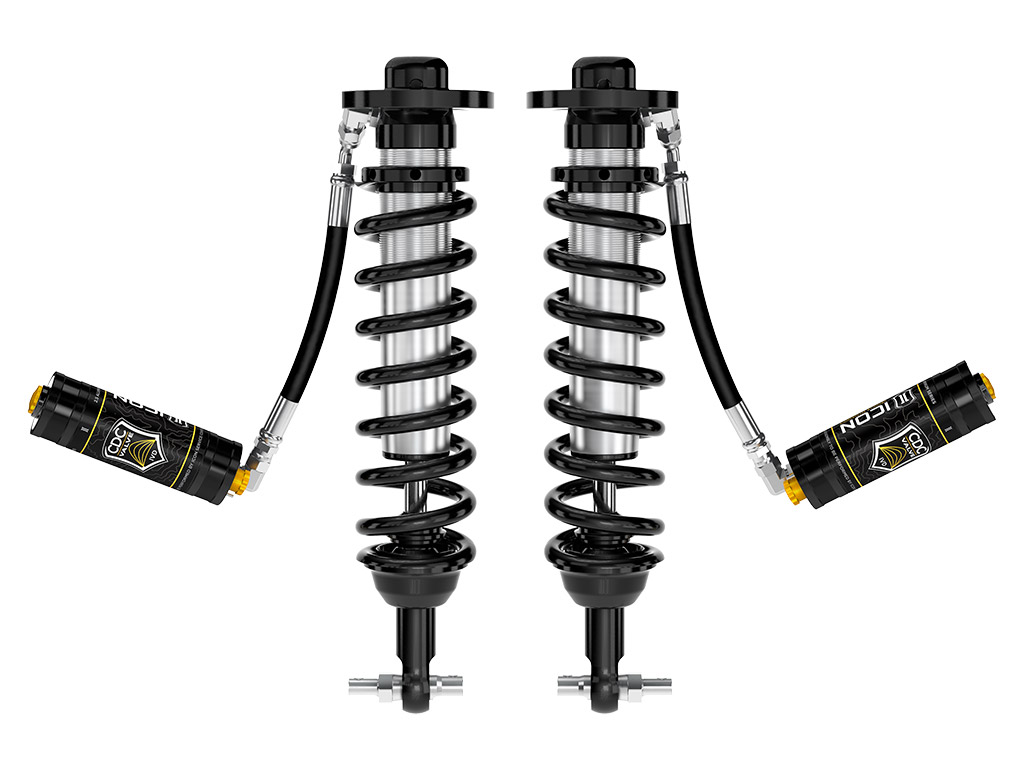

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2023 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2023 F-150 2WD.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
Cylinder Material Steel
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Active or Passive Suspension Passive
Damping Type Oil
Damping Adjustment Type Manual
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 17.42
Cylinder Color Silver
Dust Shield Included No
Extended Length 22.18
Front Spring Rate 550
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252001 - 2.5 FIXED SPANNER WRENCH, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 252003 - SEAL INSTALL TOOL 2.5/3.0
Cylinder Finish Cadmium Plated
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 4.77
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
