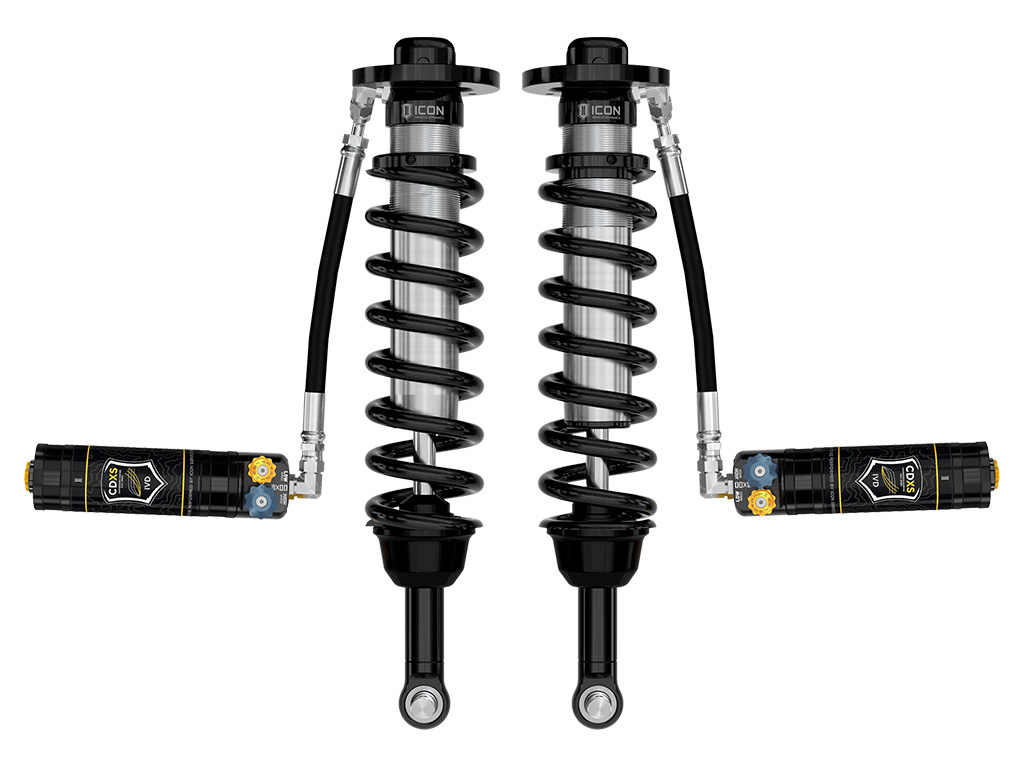

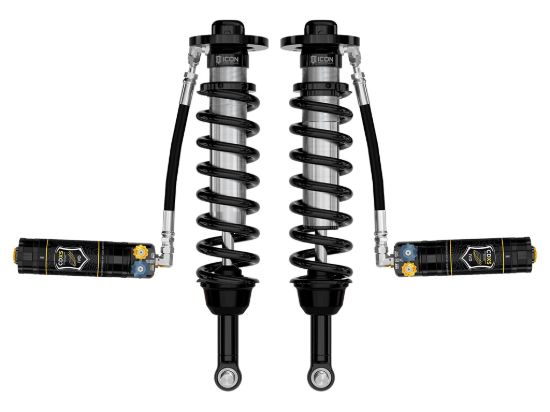

ICON Vehicle Dynamics Coilover Set - 91825X

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-25 F150 4WD 3" LIFT 2.5 VS RR CDXS COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 91825X
Old price: $2,620.75
$2,495.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

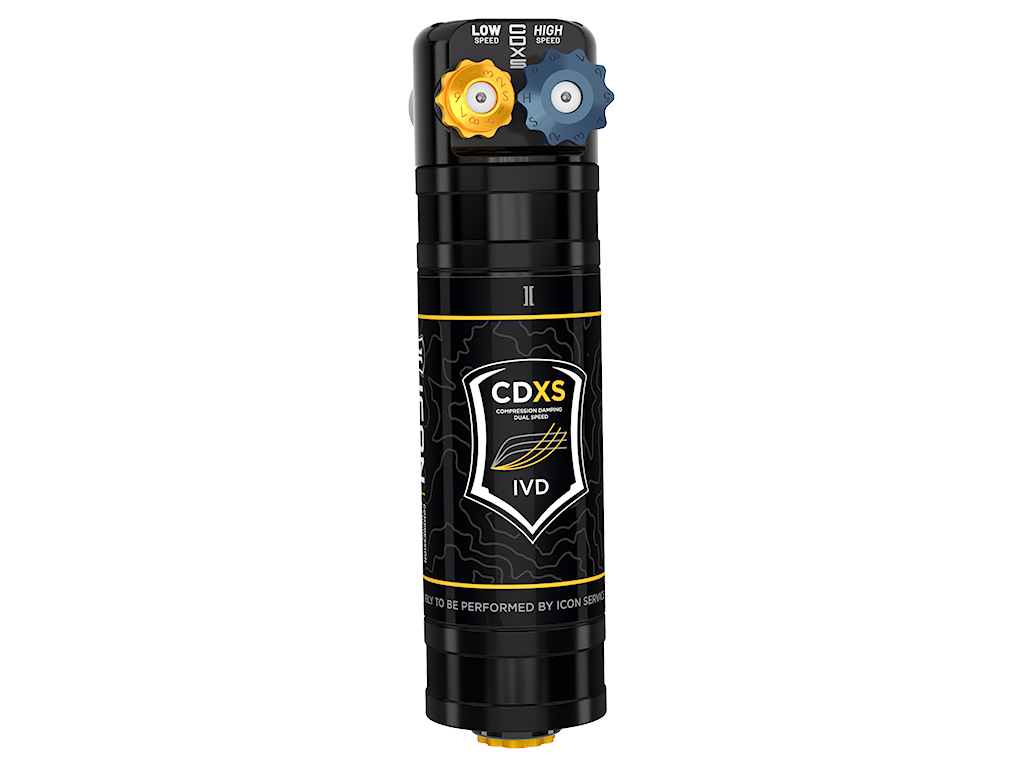

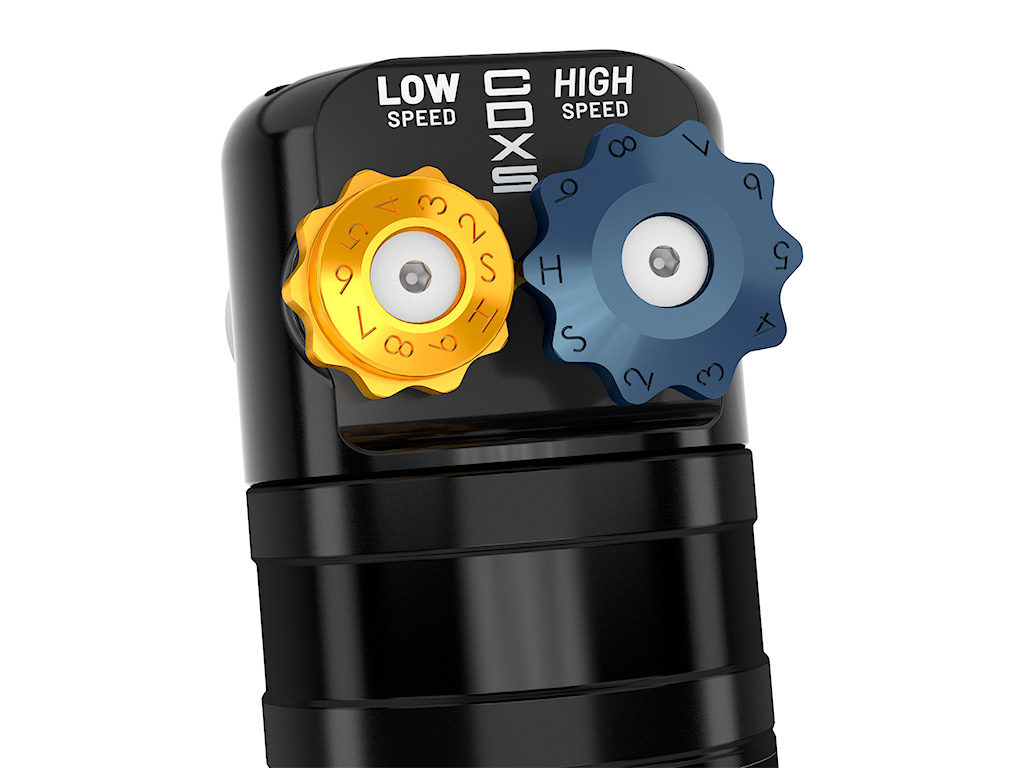

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Note: Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Adjustable Compression Yes
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Add-On Part 97720XP - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDXS PAIR, 98523DJ - 21-24 F150 BILLET UCA DJ PRO KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 98522DJ - 21-24 F150 TUBULAR UCA DJ PRO KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Compressed Length 18.66
Cylinder Color Silver
Front Spring Rate 550
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Steel, Aluminum
Maximum Lift 3.5
Maximum Ride Height Raising Distance 3.5
Minimum Lift 2.75
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.22
Upper Mount Type Mounting Plate
Valving Type Digressive
Extended Length 23.88
Dust Shield Included No
Dust Shield NO
Damping Type Oil
Damping Adjustment Type Dual Speed/Manual
Cylinder Material Steel
Cylinder Finish Cadmium Plated
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
Recommended Aftermarket Tires 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Country of Origin US
Condition New
