ICON Vehicle Dynamics Suspension Lift Kit - K214524P

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

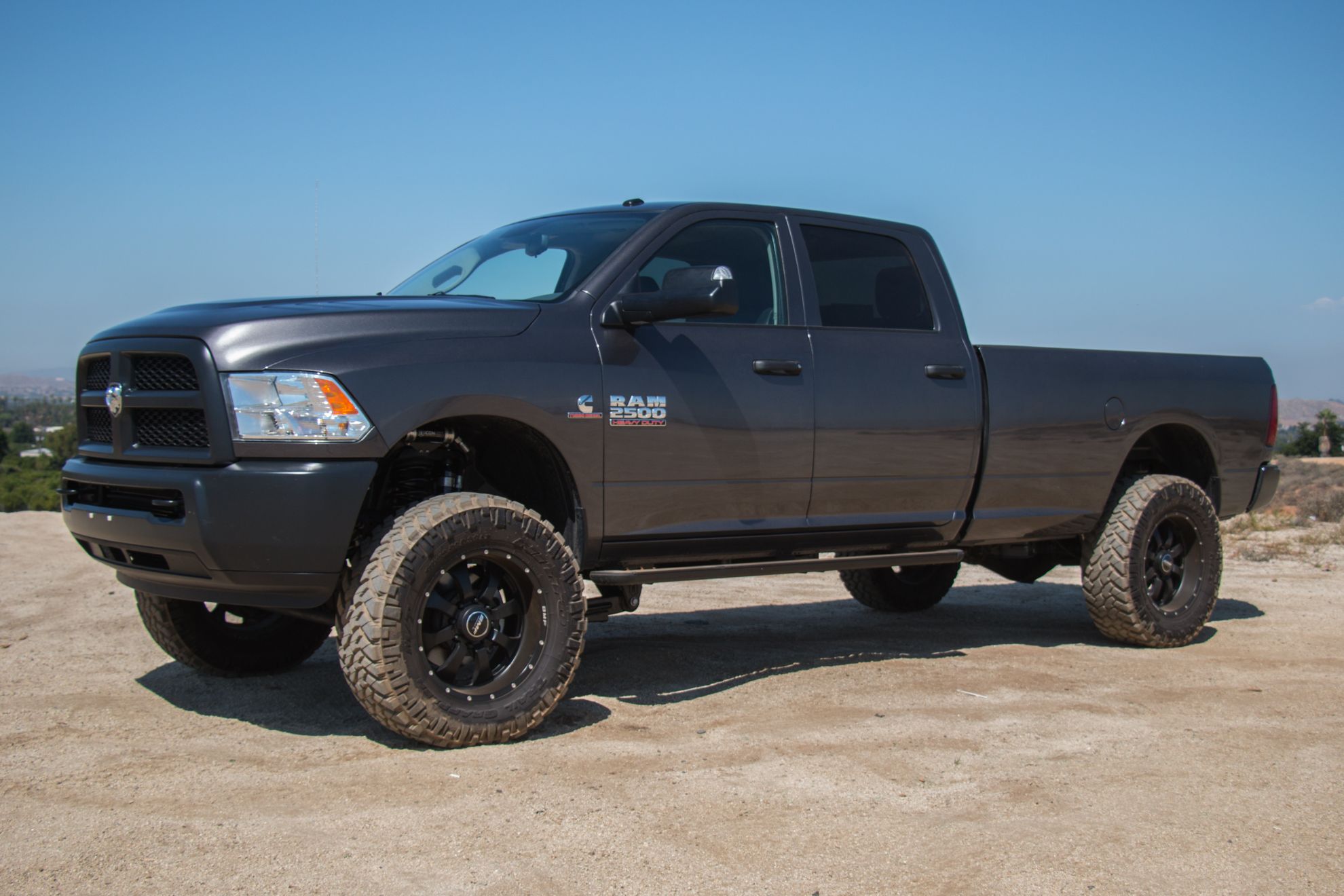

14-18 DODGE RAM 2500 4WD 4.5" STAGE 4 SUSPENSION SYSTEM (PERFORMANCE)
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K214524P
Old price: $6,965.59
$6,633.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

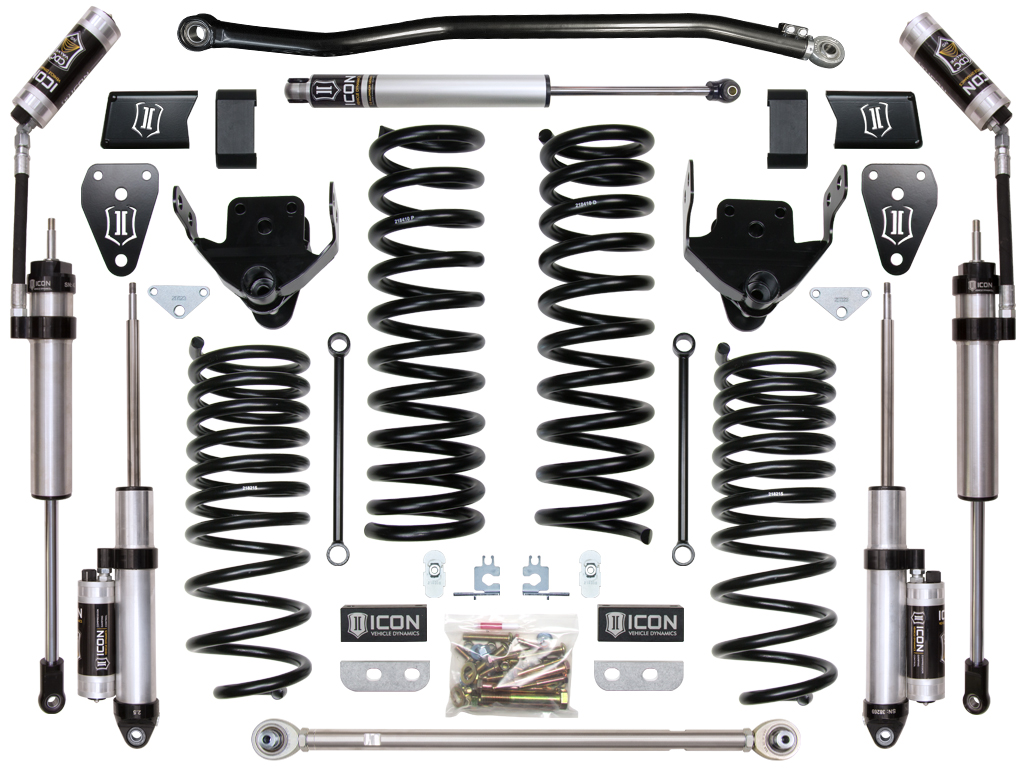

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
Coils Quantity Front 2
Coils Quantity Rear 2
Recommended Aftermarket Tires 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Maximum Lift 4.5
Spring Color Black
AAP_UDA_12 EA
Shocks Included Yes
California Prop 65 Warning Yes
Dual Rate Coil Springs Yes
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset, ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset, ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Add-On Part 214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 216520 - 09-UP RAM HD 2.0 STEERING STABILIZER, 191014 - .25" COLLAR SPANNER PIN WRENCH
AAP_UDA_22 1
AAP_UDA_4 55
Bushings Included Yes
Grade Type Performance
Spring Material Steel
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Country of Origin US
Condition New
