ICON Vehicle Dynamics Suspension Lift Kit - K40002

Name: ICON Vehicle Dynamics Suspension Lift Kit - K40002
SKU: K40002
Price: 3582.14 USD
Availability: OutOfStock

21-23 BRONCO HOSS 1.0 PKG 1.375-3" LIFT STAGE 2 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K40002

Old price: $3,761.27

Price: $3,582.14

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

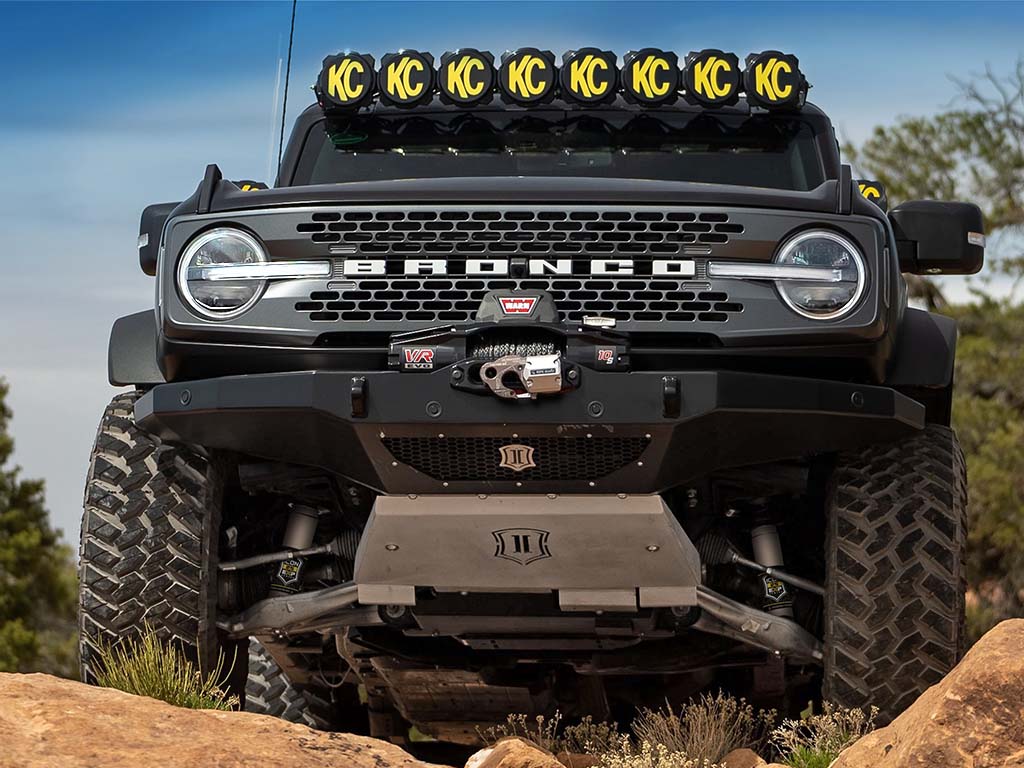

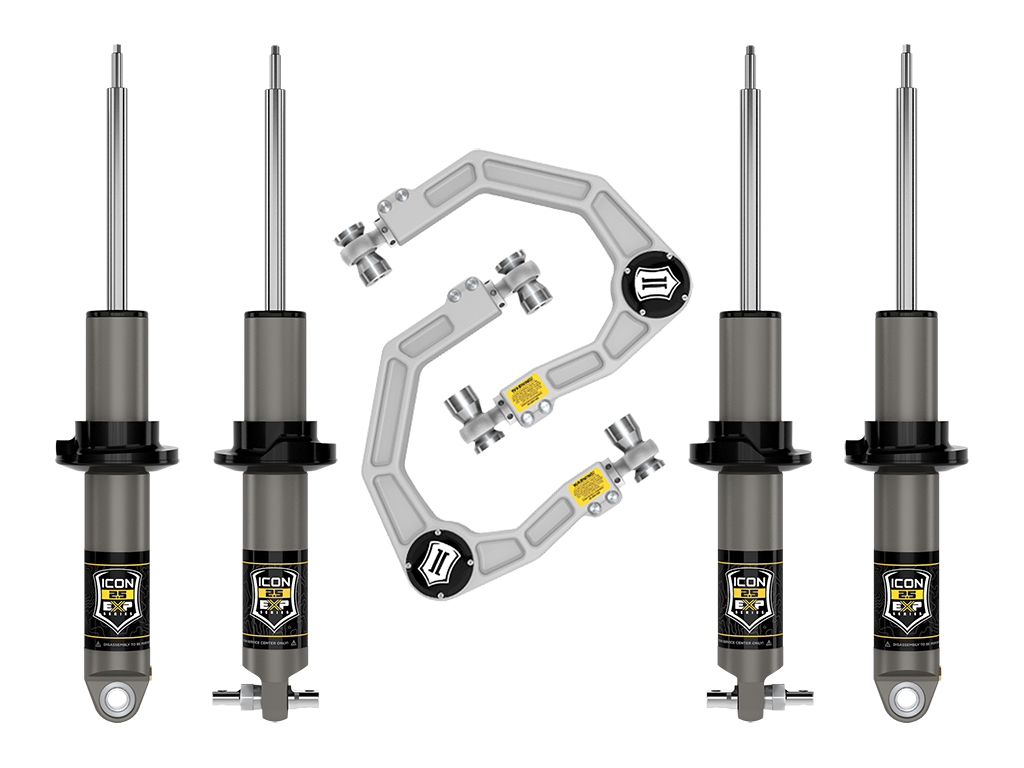

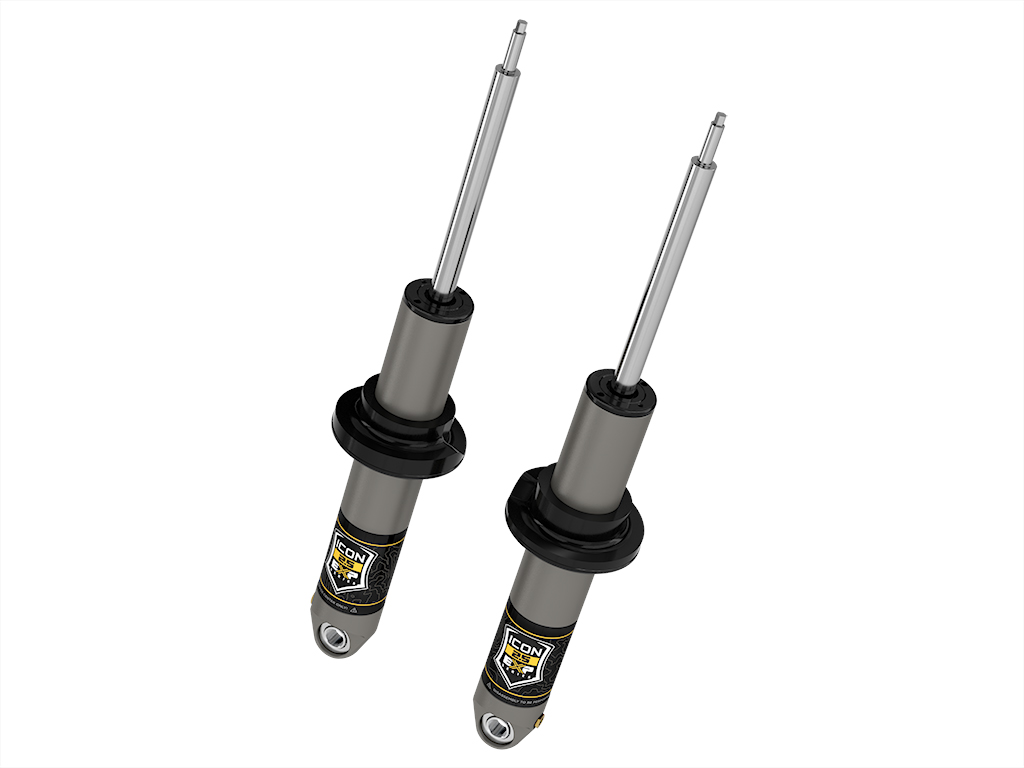

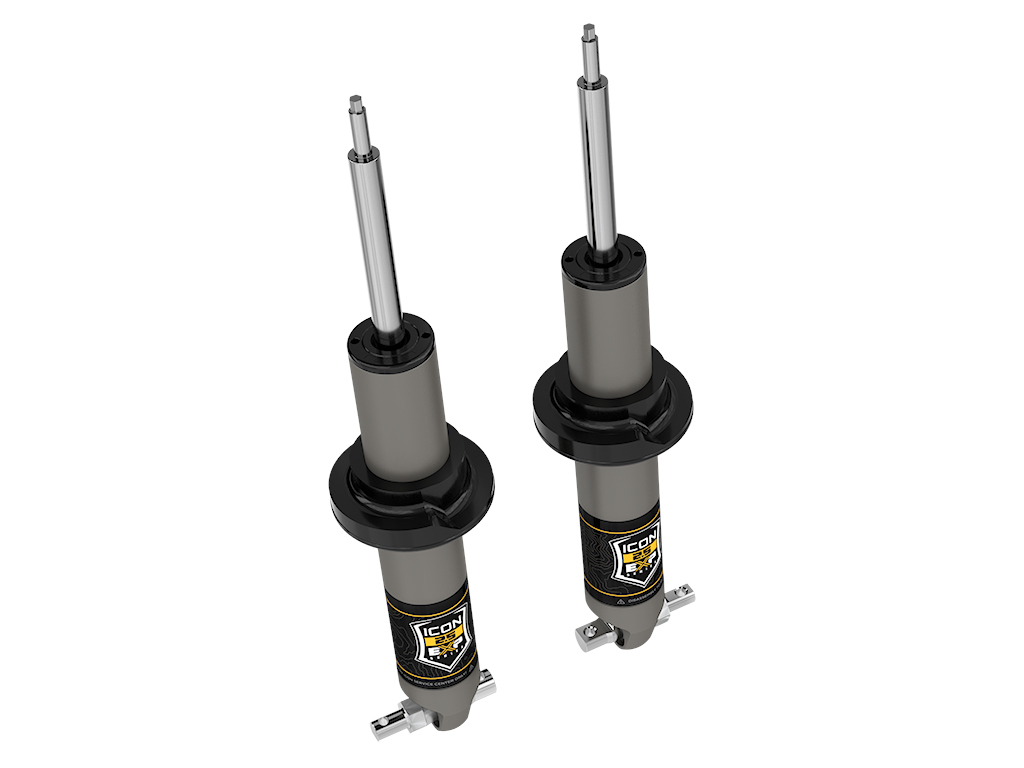

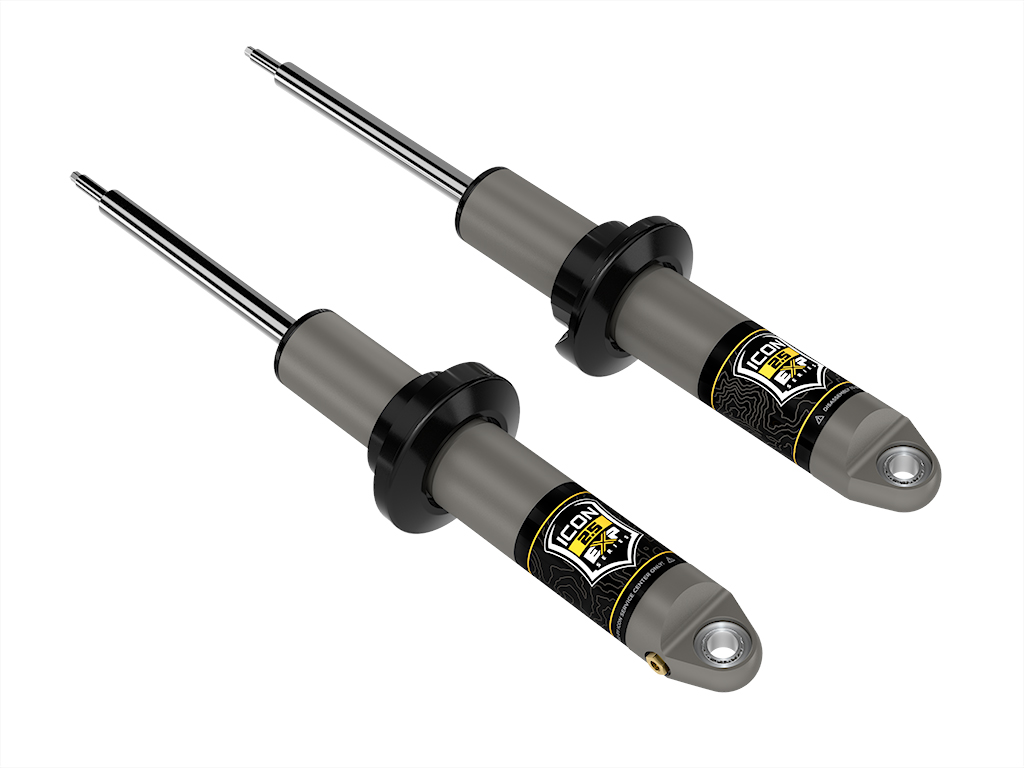

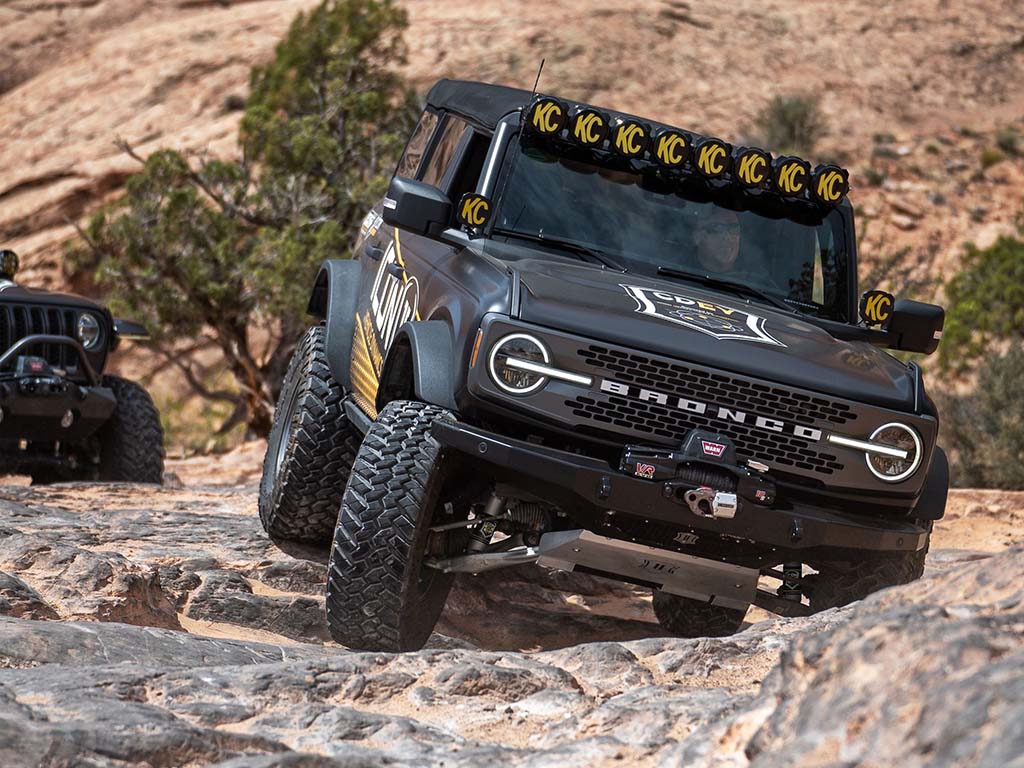

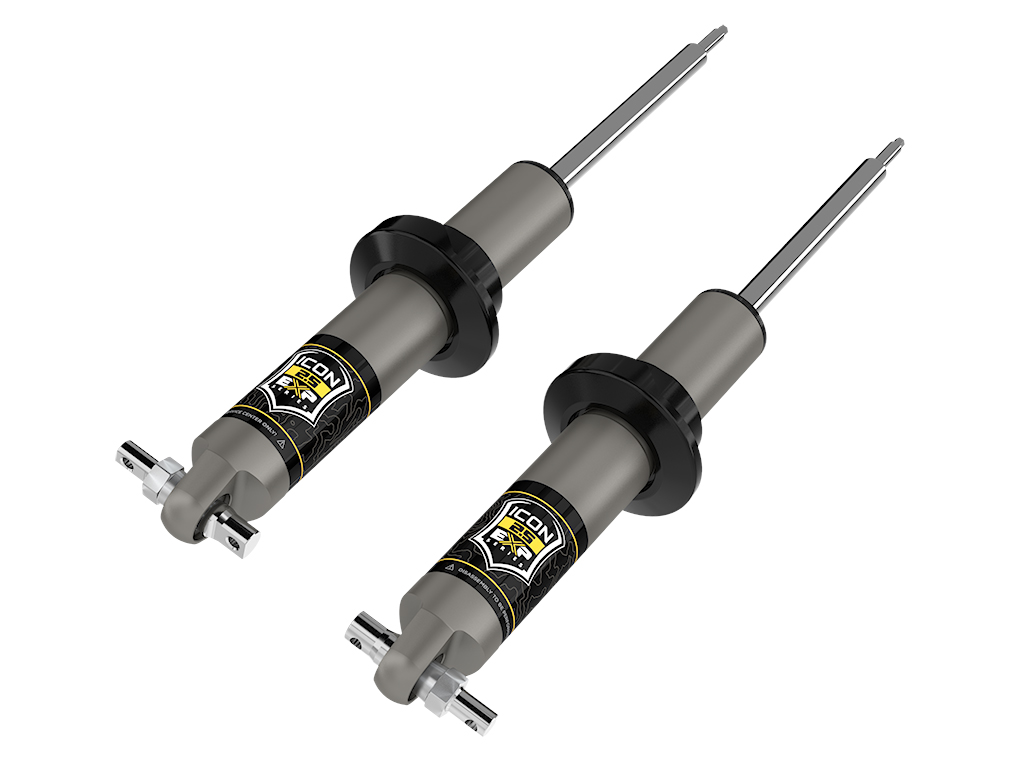

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable easily-selectable ride height adjustment from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.

Note: OEM Wheels & Tires Fitment: No

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Minimum Lift Front	1.375
Minimum Lift Rear	1.5
Maximum Lift Rear	2.25
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3
Maximum Lift Front	3
Recommended Aftermarket Tires	35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Add-On Part	45212 - 21-23 BRONCO XD TIE ROD KIT, 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 611082 - EXP 1" SHAFT BUMP EXTENSION, 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT
Recommended Aftermarket Wheels	ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset
Reservoir Style	Internal
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
OEM Wheels & Tires Fitment	No
Active or Passive Suspension	Passive
Grade Type	Performance
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes

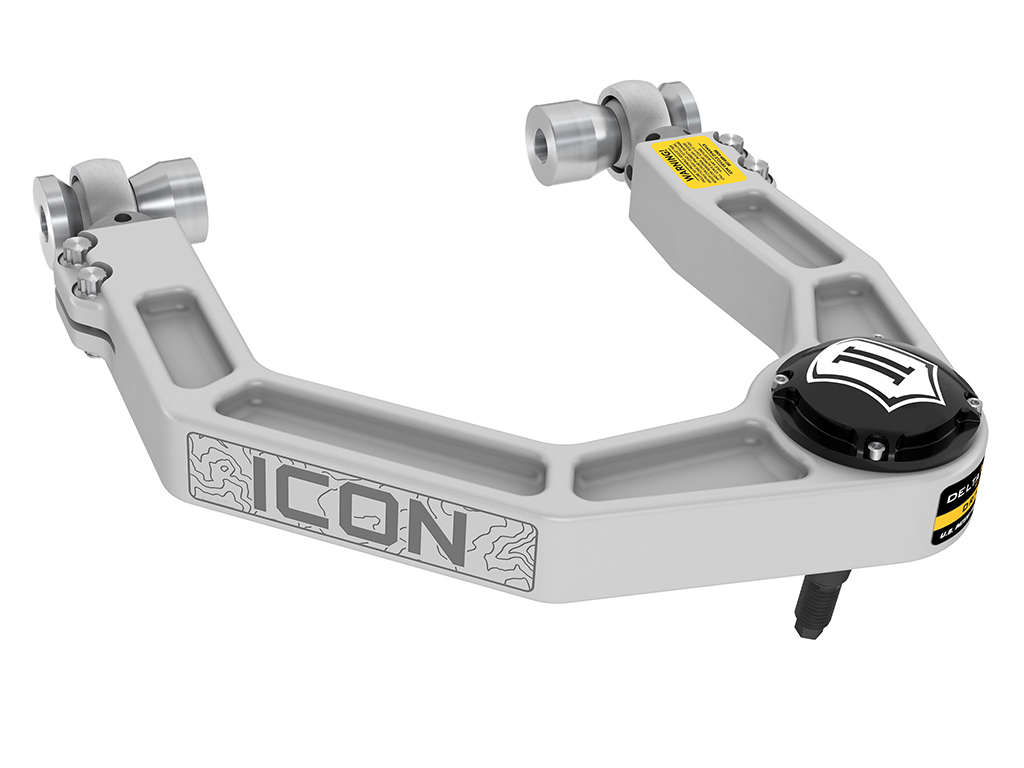

Adjustable Control Arm	yes
California Prop 65 Warning	Yes
Country of Origin	US
Condition	New
