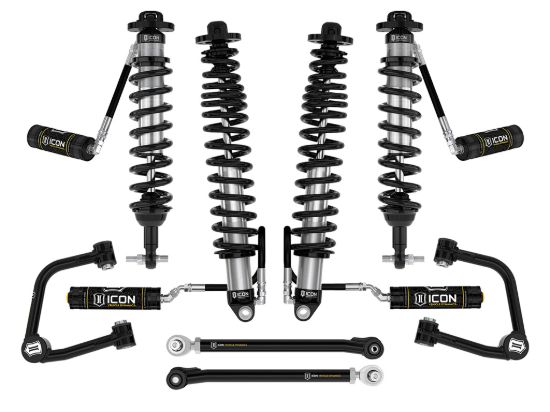

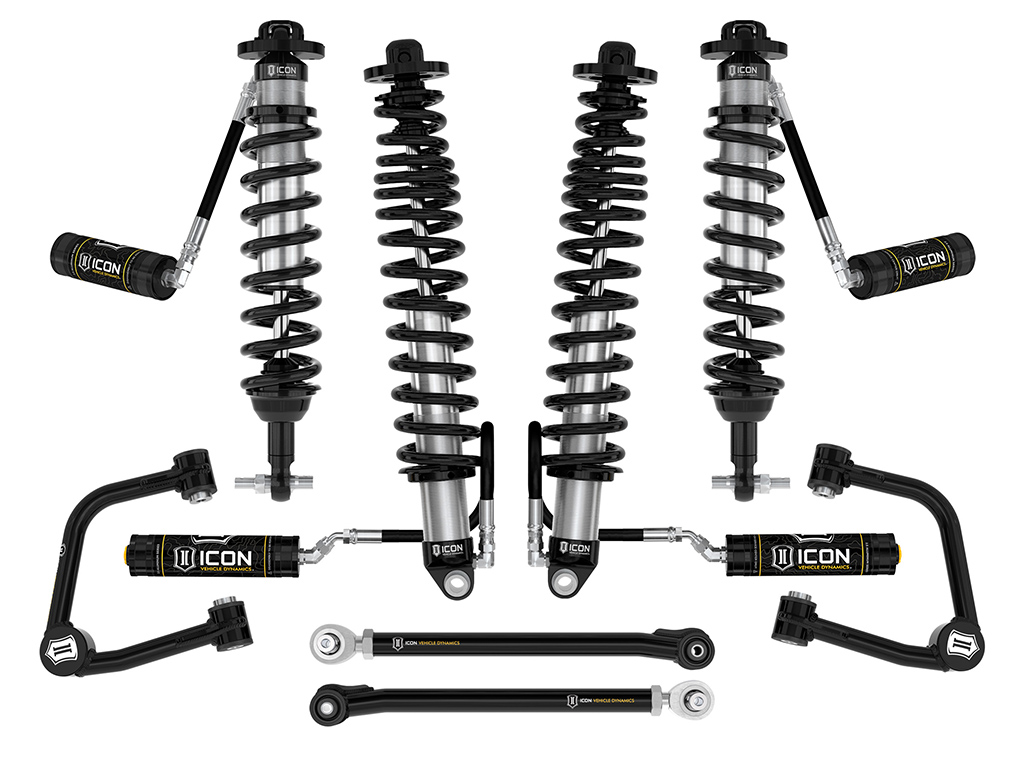

ICON Vehicle Dynamics Suspension Lift Kit - K40005T

Name: ICON Vehicle Dynamics Suspension Lift Kit - K40005T
SKU: K40005T
Price: 6094.64 USD
Availability: InStock

21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K40005T

Old price: $6,399.37

Price: $6,094.64

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The ICON Vehicle Dynamics Stage 5 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Coils Quantity Front	2
Coils Quantity Rear	2
Minimum Lift Rear	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift Rear	3
Minimum Lift Front	3
Recommended Aftermarket Tires	35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Maximum Lift	4
Maximum Lift Front	4
Spring Color	Black
Adjustable Compression	No
Adjustable Damping	No
Active or Passive Suspension	Passive
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
OEM Wheels & Tires Fitment	Yes
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Reservoir Style	Remote
Coil Spring End 1 Type	Square
Coil Spring End 2 Type	Square
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT, 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT, 45212 - 21-23 BRONCO XD TIE ROD KIT, 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT, 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
Front Spring Rate Type	Linear
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Country of Origin	US
Condition	New
