ICON Vehicle Dynamics Suspension Lift Kit - K53010

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53010
SKU: K53010
Price: 6913.51 USD
Availability: InStock

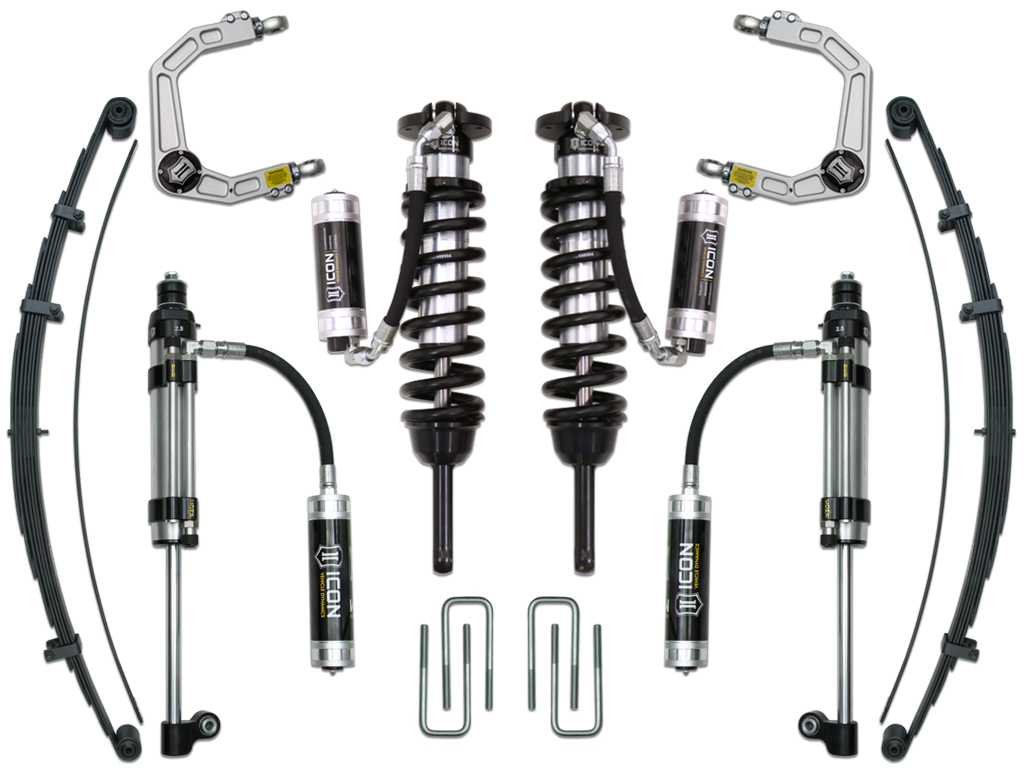

05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 10 SUSPENSION SYSTEM W BILLET UCA

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53010

Old price: $7,259.20

Price: $6,913.51

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics 2005-2023 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 10 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Aluminum Series shock.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Add-On Part	56103 - 05-23 TACOMA REAR HYD BUMP STOP KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable Damping	Yes
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coils Quantity Front	2
Damping Adjustment Type	Manual
Front Spring Rate 1	650
Front Spring Rate Type	Linear
Grade Type	Performance
Leaf Spring Leaf Quantity	8
Maximum Lift Front	3.5
Maximum Lift Rear	2.625
Minimum Lift Front	0
Minimum Lift Rear	1.875
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Spring Rate Type	Variable
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset, ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Country of Origin	US
Condition	New
