ICON Vehicle Dynamics Suspension Lift Kit - K53011

95.5-04 TACOMA 0-3" STAGE 1 SUSPENSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53011

Old price: $2,005.13

Price: $1,909.65

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

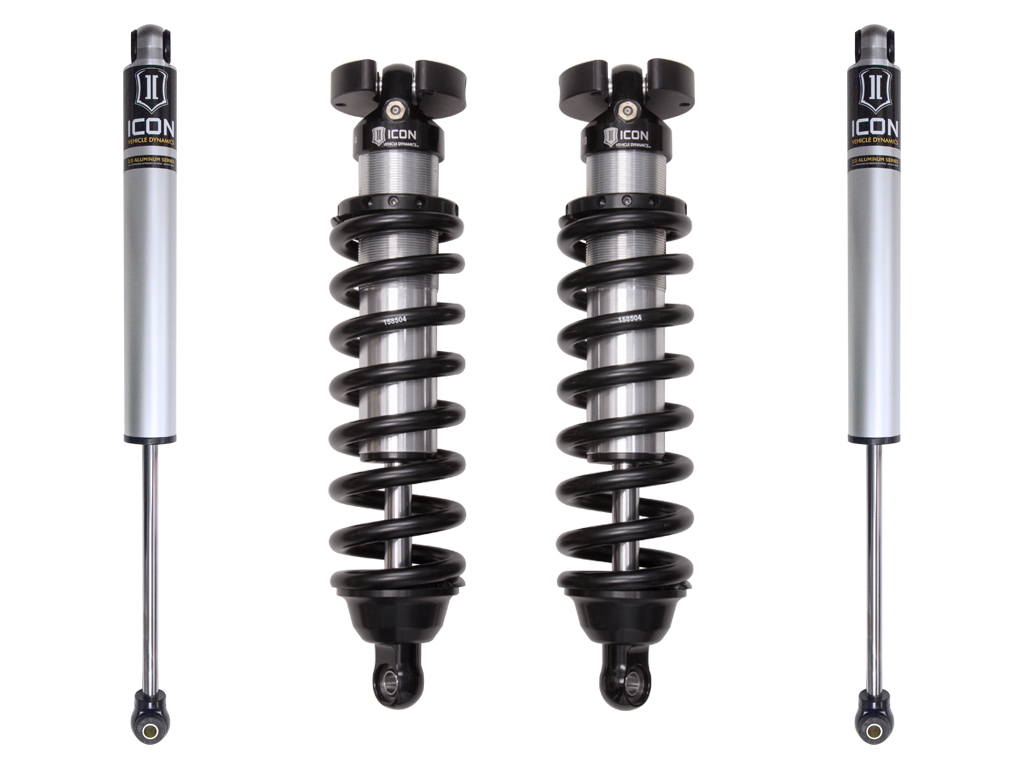

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics '96-'04 Toyota Tacoma 4WD/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Maximum Lift Front	3
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Spring Rate	650
Spring Color	Black
Reservoir Style	Emulsion
Recommended Aftermarket Wheels	ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset, ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset
Front Reservoir Style	Internal
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
Grade Type	Performance
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
California Prop 65 Warning	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 158508 - COIL SPRING 1400.0300.0700 BLACK
Minimum Lift Front	0
Coils Quantity Front	2
Rear Shock Body Diameter	2
Front Shock Body Diameter	2.5
Maximum Lift	3
Country of Origin	US
Condition	New
