ICON Vehicle Dynamics Suspension Lift Kit - K53196

22-25 TUNDRA 1.25-3.5" STAGE 6 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53196

Old price: $4,383.52

Price: $4,174.77

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

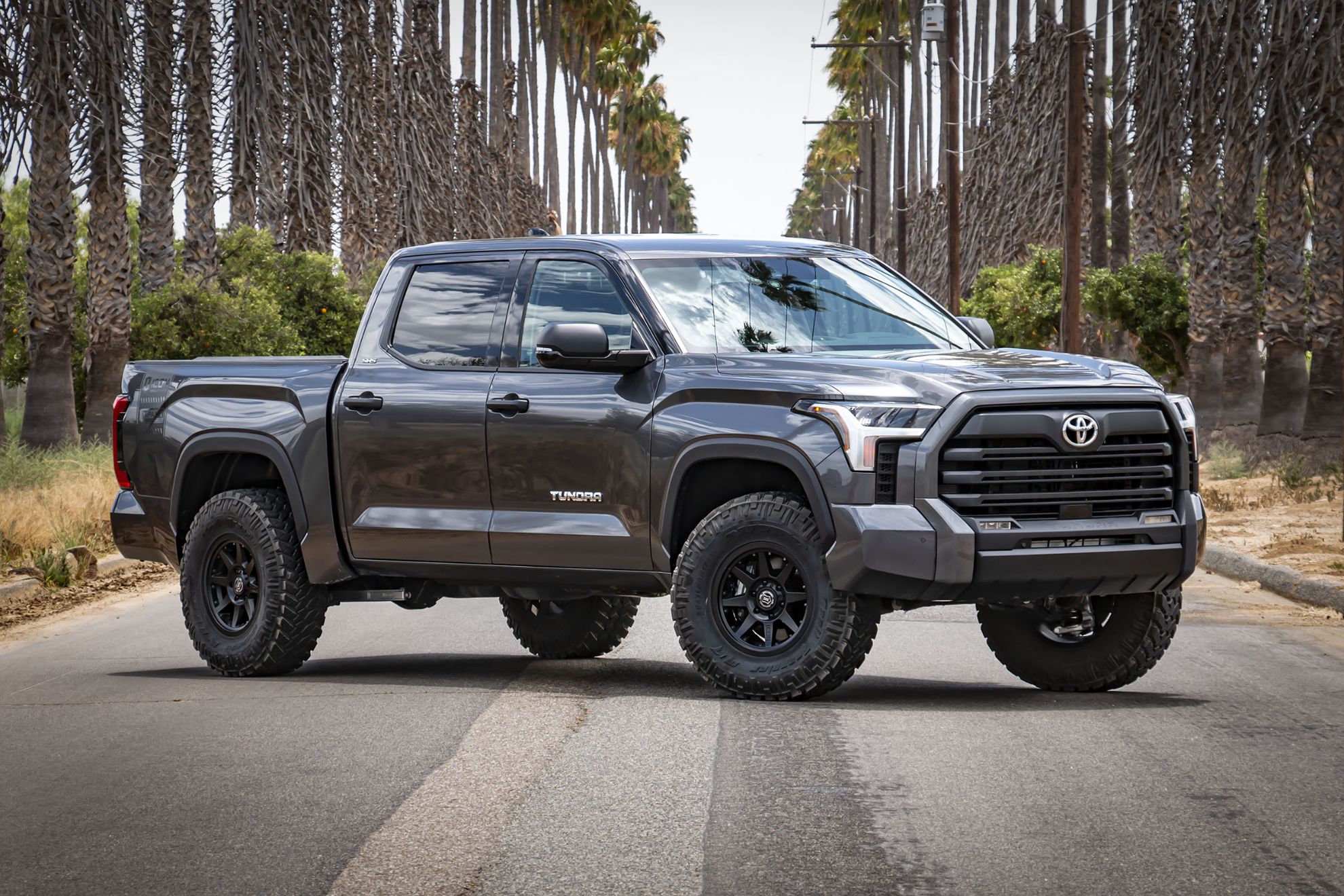

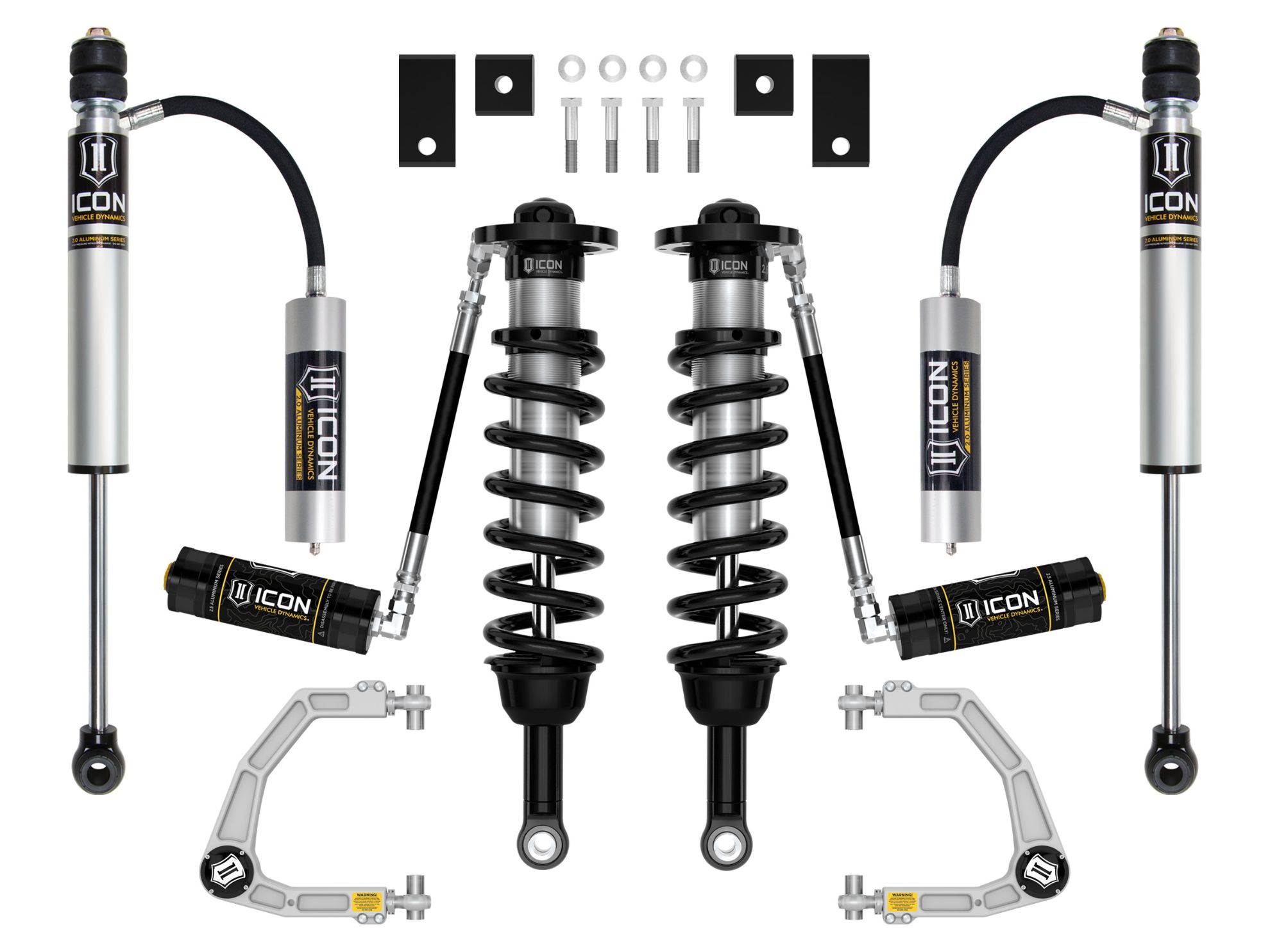

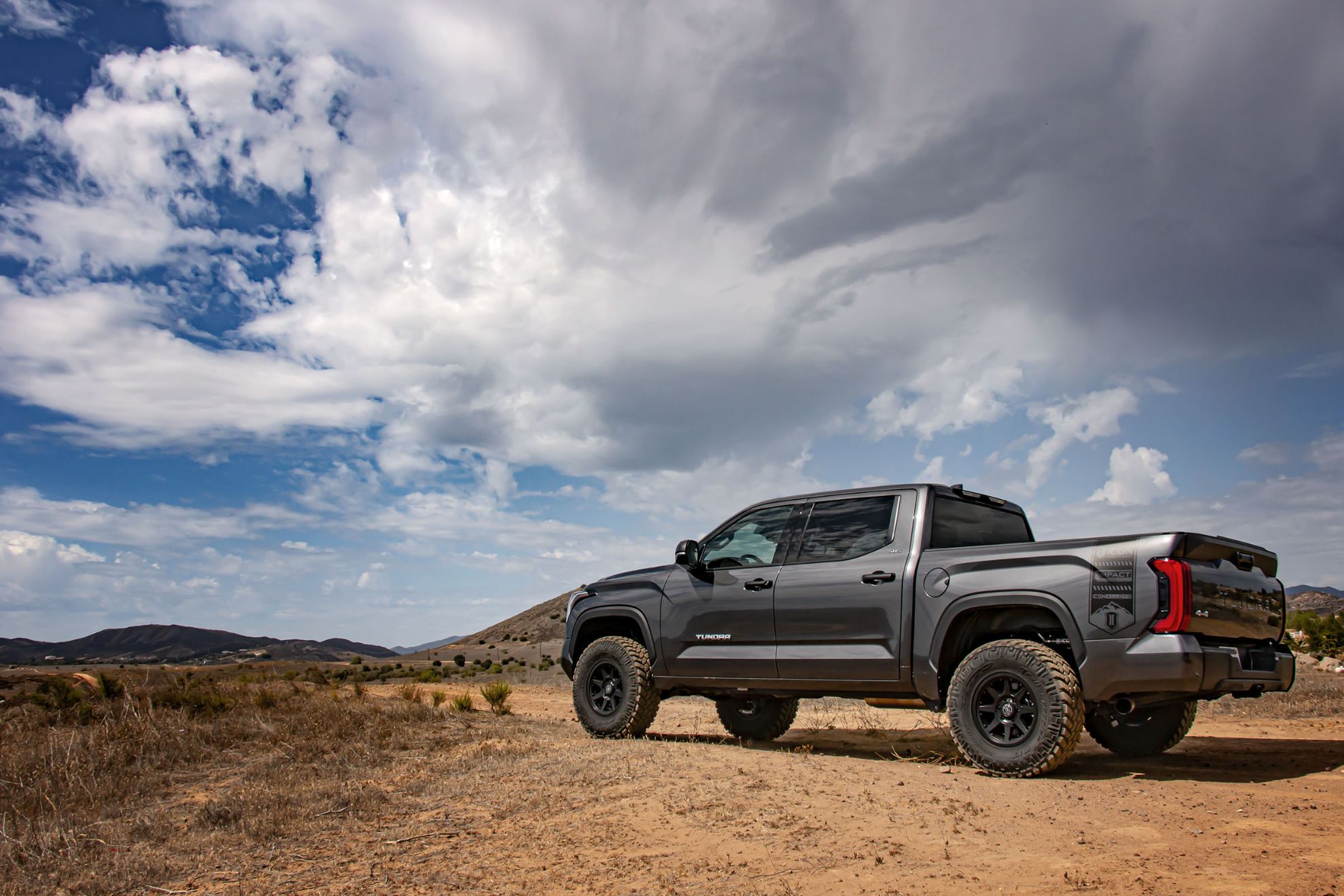

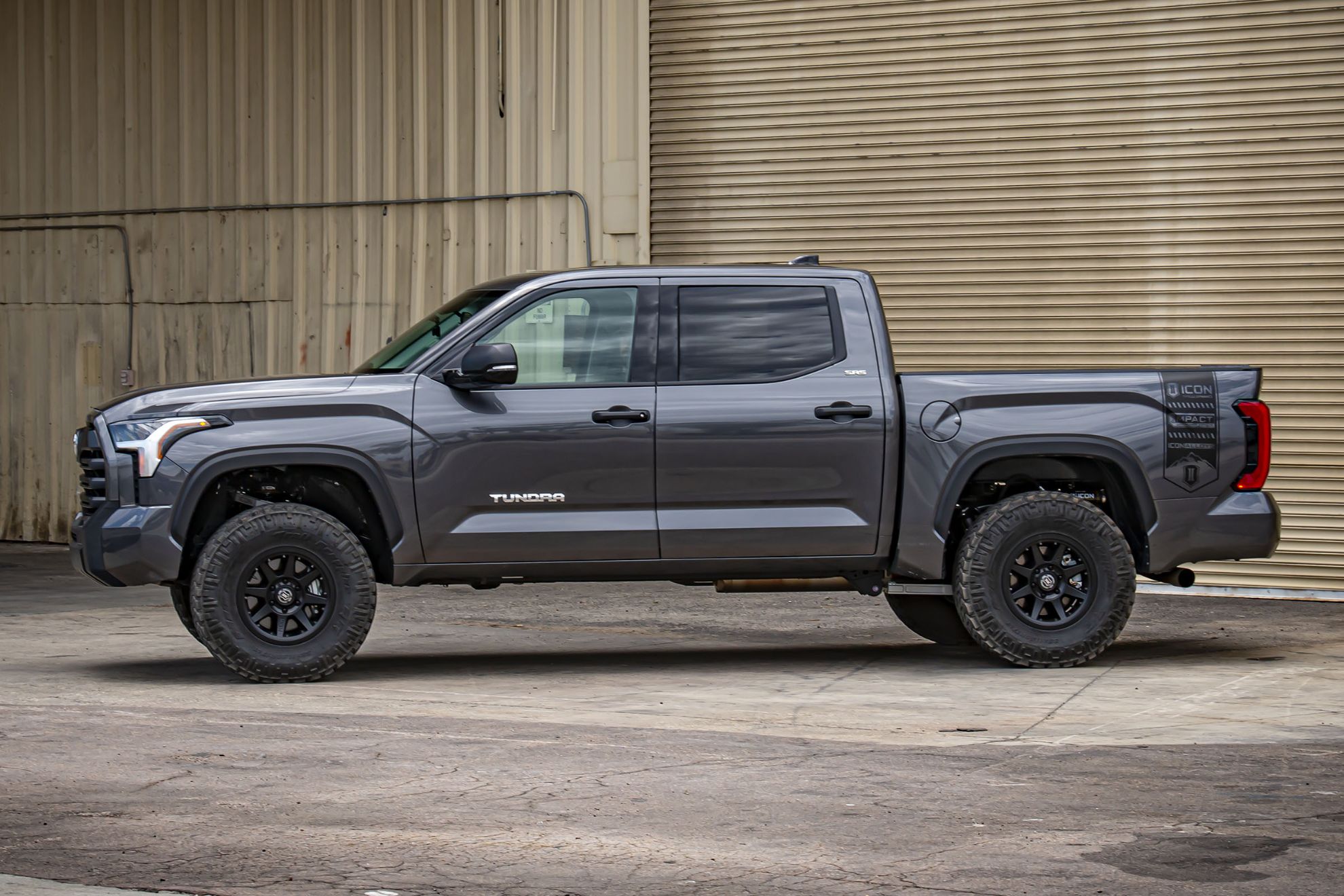

The ICON Vehicle Dynamics Stage 6 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 5 system with the upgrade of the 2.5 Series front coilovers to remote reservoir versions. This system offers improved on- and off-road performance, with greater front and rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the remote reservoir coilover shock and billet aluminum upper control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with remote reservoirs for the rear.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Bushings Included	Yes
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Minimum Lift Front	.75
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Coils Quantity Front	2
Coil Quantity Front	2
Rear Shock Body Diameter	2
Front Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Spring Color	Black
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Grade Type	Performance
Front Reservoir Style	Remote
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 252012 - -4 TO -10 HOSE SHIELD KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
