ICON Vehicle Dynamics Suspension Lift Kit - K53197

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53197
SKU: K53197
Price: 4864.82 USD
Availability: OutOfStock

22-25 TUNDRA 1.25-3.5" STAGE 7 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53197

Old price: $5,108.06

Price: $4,864.82

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

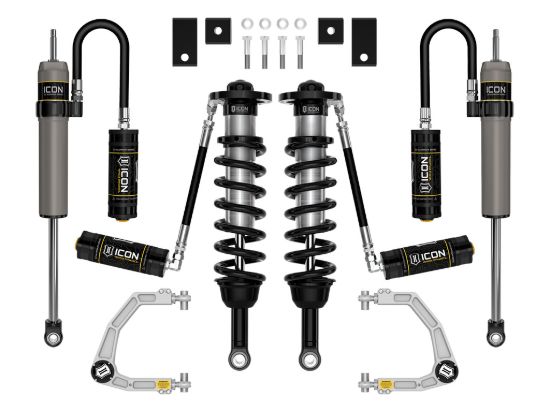

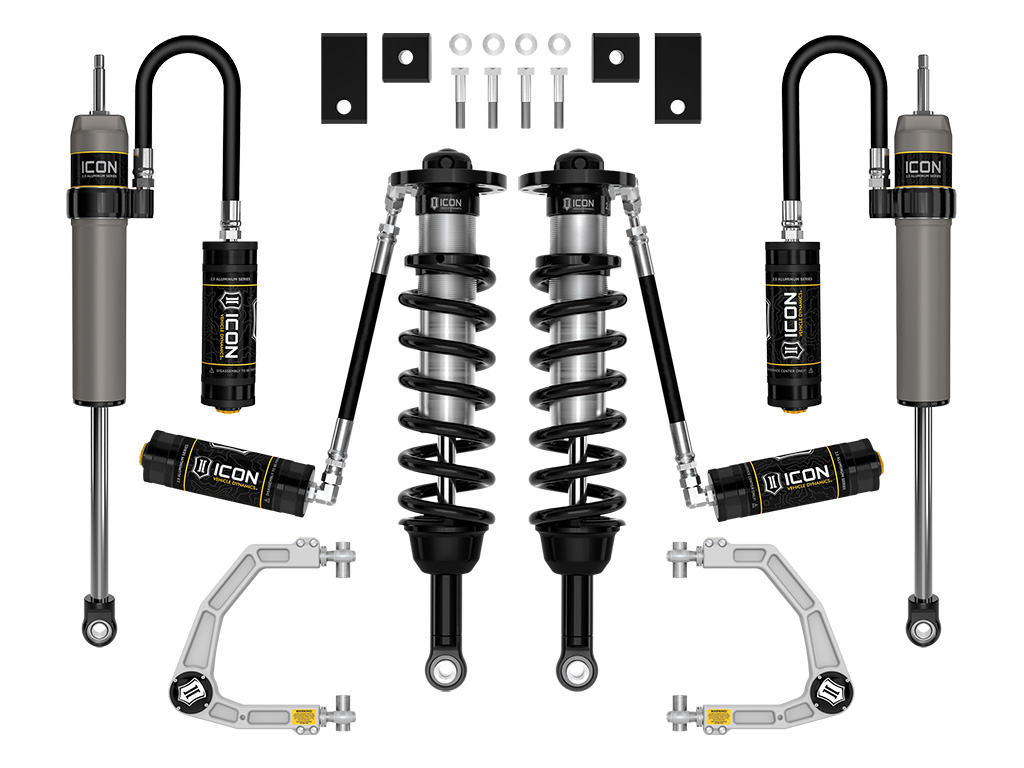

The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.5 Aluminum Series remote reservoir rear shocks, a 2.5 Series remote reservoir front coilover shock and billet front upper control arm combo is included along with a front sway bar drop kit.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Minimum Lift Front	.75
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Coils Quantity Front	2
Coil Quantity Front	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Grade Type	Performance
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
AAP_UDA_12	EA
AAP_UDA_22	1
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
