ICON Vehicle Dynamics Suspension Lift Kit - K53201DS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53201DS
SKU: K53201DS
Price: 9425.94 USD
Availability: OutOfStock

22-25 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET CDXS (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53201DS

Old price: $9,897.24

Price: $9,425.94

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

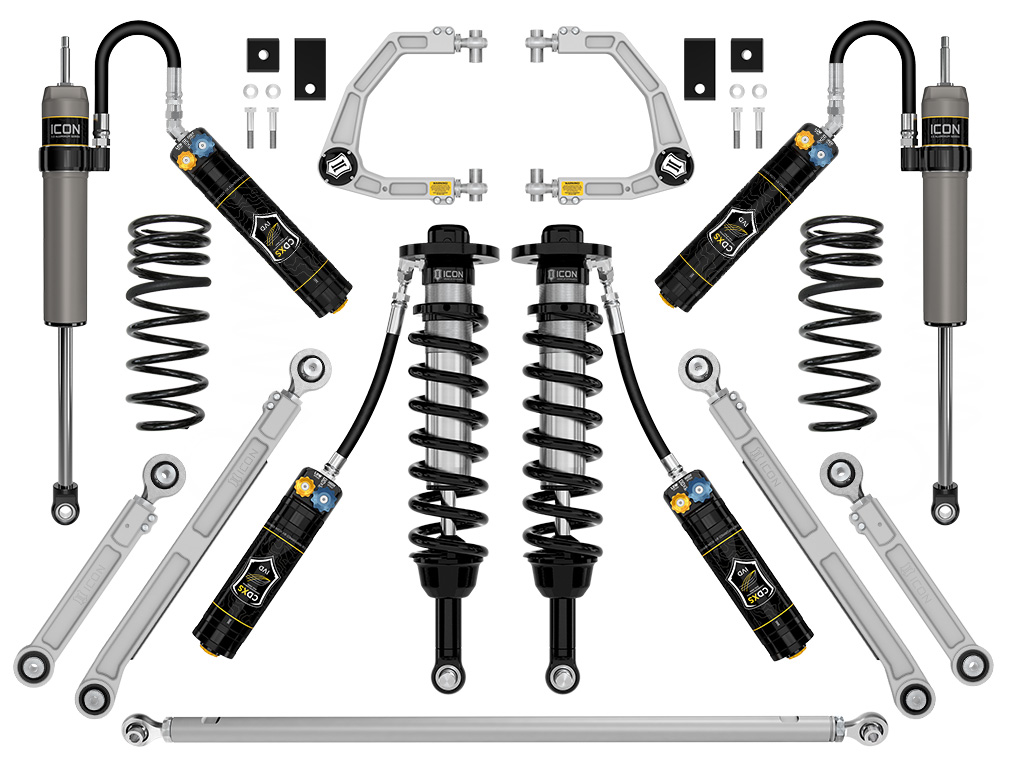

The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDXS remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDXS rear remote reservoir shocks with billet upper and lower rear links.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Dual Speed/Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3.5
Maximum Lift Front	3.5
Maximum Lift Rear	1.25
Minimum Lift Front	.75
Mounting Hardware Included	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Triple Rate
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH
Country of Origin	US
Condition	New
