ICON Vehicle Dynamics Suspension Lift Kit - K53211

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53211
SKU: K53211
Price: 9335.81 USD
Availability: OutOfStock

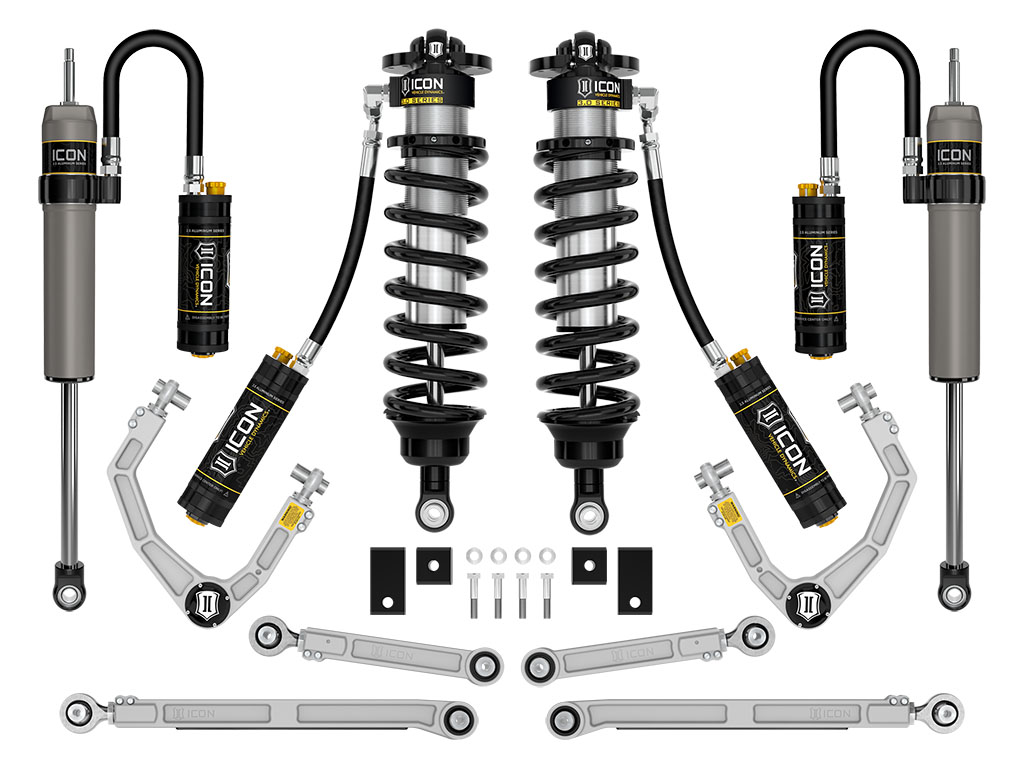

22-25 TUNDRA 1.25-3.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDCV

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53211

Old price: $9,802.59

Price: $9,335.81

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

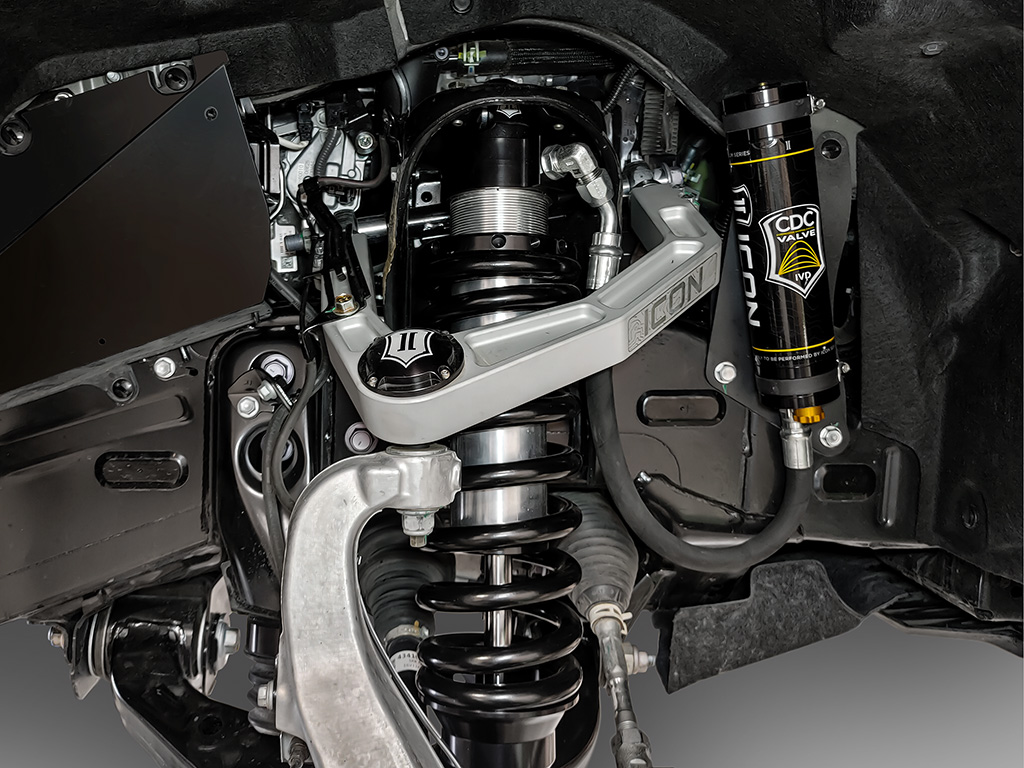

The ICON Vehicle Dynamics Stage 1 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 2.5 suspension system with the upgrade to 3.0 Series front coilovers. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDCV rear remote reservoir shocks are included along with billet aluminum front upper control arms and a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Minimum Lift Front	.75
Coils Quantity Front	2
Coil Quantity Front	2
Rear Shock Body Diameter	2.5
Front Shock Body Diameter	3
Maximum Lift	3.25
Maximum Lift Front	3.25
Spring Color	Black
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
Damping Adjustment Type	Manual
Grade Type	Performance
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT, 198001 - BILLET SPANNER WRENCH KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
