ICON Vehicle Dynamics Suspension Lift Kit - K53213D

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53213D
SKU: K53213D
Price: 11148.05 USD
Availability: InStock

22-25 TUNDRA 1.25-3.25" STAGE 3 3.0 SUSPENSION SYSTEM BILLET CDXS

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53213D

Old price: $11,705.46

Price: $11,148.05

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

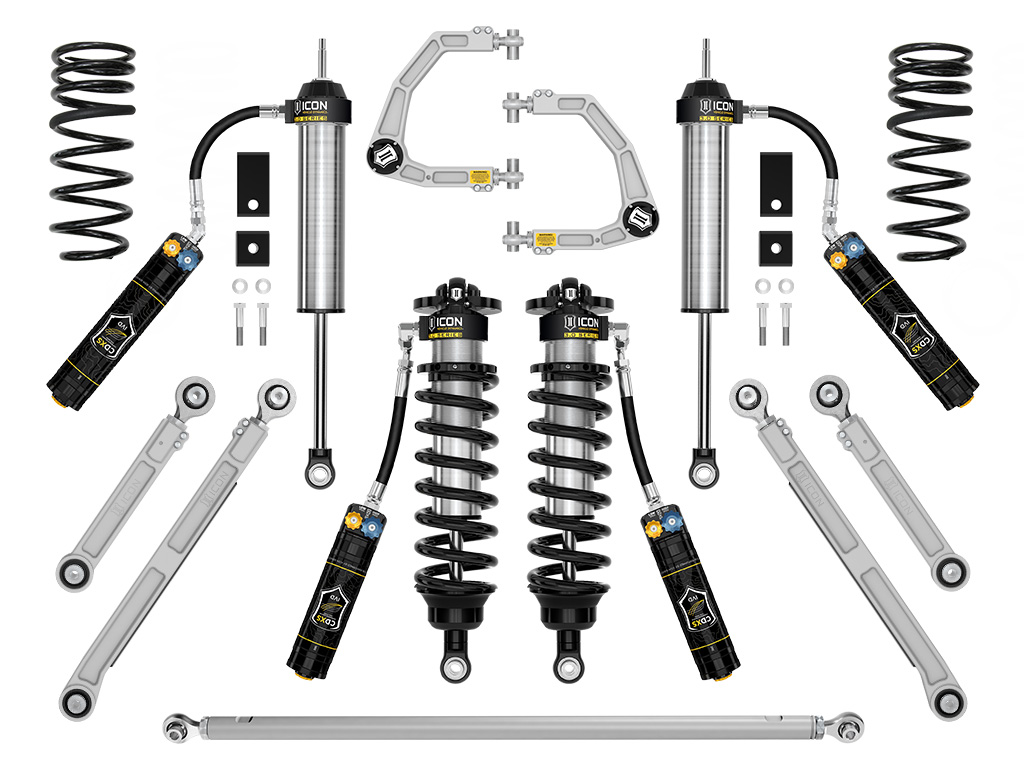

The ICON Vehicle Dynamics Stage 3 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 2 3.0 suspension system with the addition of triple rate rear coils springs and an adjustable rear track bar. To compliment the coils and track bar 3.0 Series CDXS front coilovers are included along with billet front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, and 3.0 Series CDXS rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Dual Speed/Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	3
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3.25
Maximum Lift Front	3.25
Maximum Lift Rear	.5
Minimum Lift Front	.75
Minimum Lift Rear	0
Mounting Hardware Included	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	3
Rear Spring Rate Type	Progressive Triple Rate
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Country of Origin	US
Condition	New
