ICON Vehicle Dynamics Suspension Lift Kit - K53236T

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53236T
SKU: K53236T
Price: 4033.28 USD
Availability: InStock

23-25 SEQUOIA 3-4.5" STAGE 6 SUSPENSION SYSTEM TUBULAR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53236T

Old price: $4,234.95

Price: $4,033.28

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

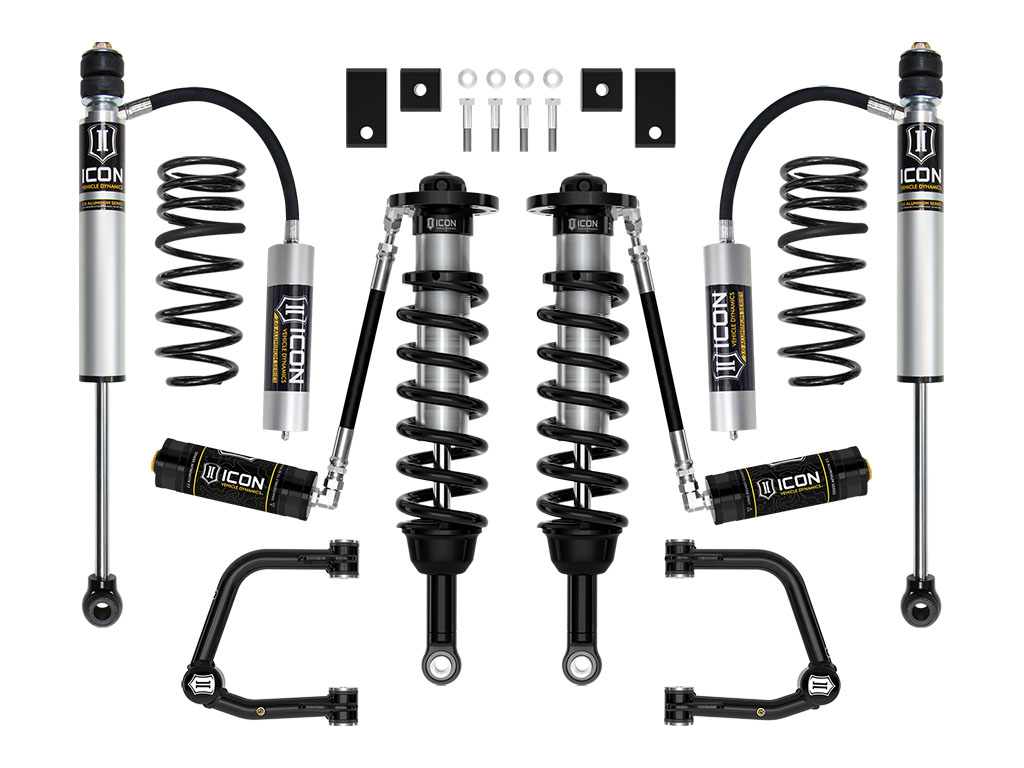

The ICON Vehicle Dynamics Stage 6 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 5 system with the upgrade of the 2.5 Series front coilovers to remote reservoir versions. This system offers improved on- and off-road performance, with greater front and rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the remote reservoir coilover shock and tubular steel upper control arm combo, a sway bar drop kit for the front of the truck is included along with our dual rate coil springs and proven 2.0 nitrogen charged monotube shocks with remote reservoirs for the rear.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Bushings Included	Yes
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Control Arm	No
Adjustable Damping	No
Adjustable Rebound	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	2
Minimum Lift Front	3
Minimum Lift Rear	0
Rear Shock Body Diameter	2
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Rear Spring Rate Type	Progressive Dual Rate
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191013 - NIPPLE GREASING ADAPTER KIT
Country of Origin	US
Condition	New
