ICON Vehicle Dynamics Suspension Lift Kit - K53237

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53237
SKU: K53237
Price: 5283.32 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 7 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53237

Old price: $5,547.49

Price: $5,283.32

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

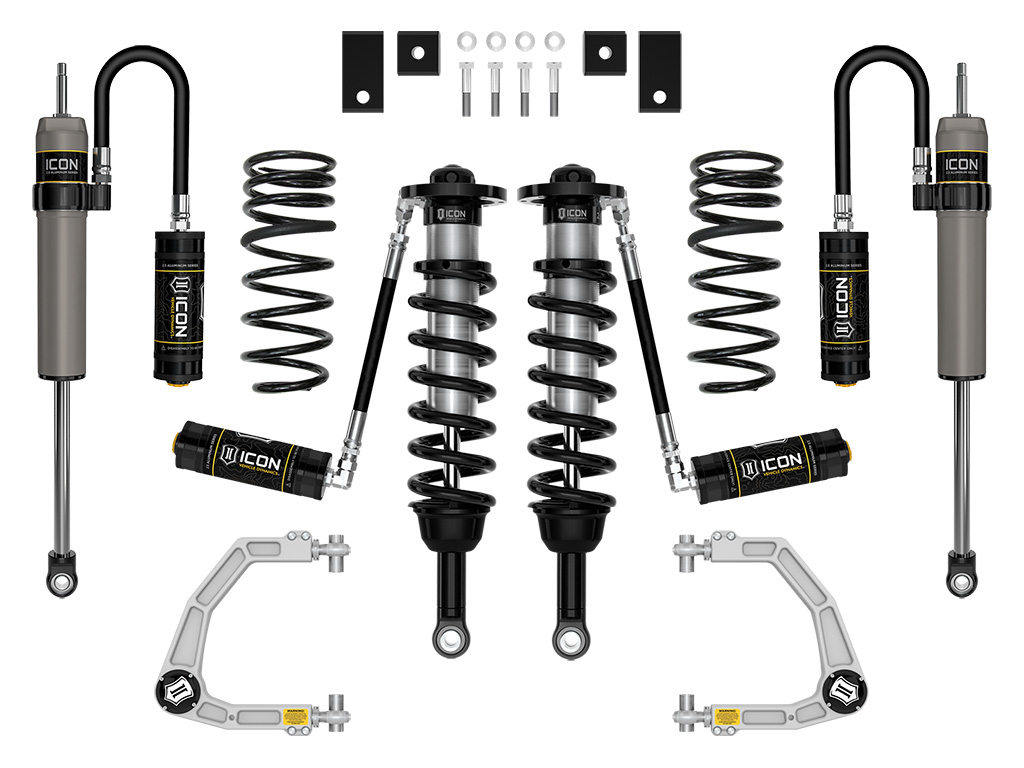

The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.5 Aluminum Series remote reservoir rear shocks, dual rate rear coils are included with a 2.5 Series remote reservoir front coilover shock and billet front upper control arm combo and a front sway bar drop kit.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Bushings Included	Yes
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Control Arm	yes
Adjustable Damping	No
Adjustable Rebound	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	2
Minimum Lift Front	3
Minimum Lift Rear	0
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Rear Spring Rate Type	Progressive Dual Rate
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	191014 - .25" COLLAR SPANNER PIN WRENCH, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 191013 - NIPPLE GREASING ADAPTER KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Country of Origin	US
Condition	New
