ICON Vehicle Dynamics Suspension Lift Kit - K53240TDS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53240TDS
SKU: K53240TDS
Price: 7663.67 USD
Availability: OutOfStock

23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53240TDS

Old price: $8,046.85

Price: $7,663.67

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

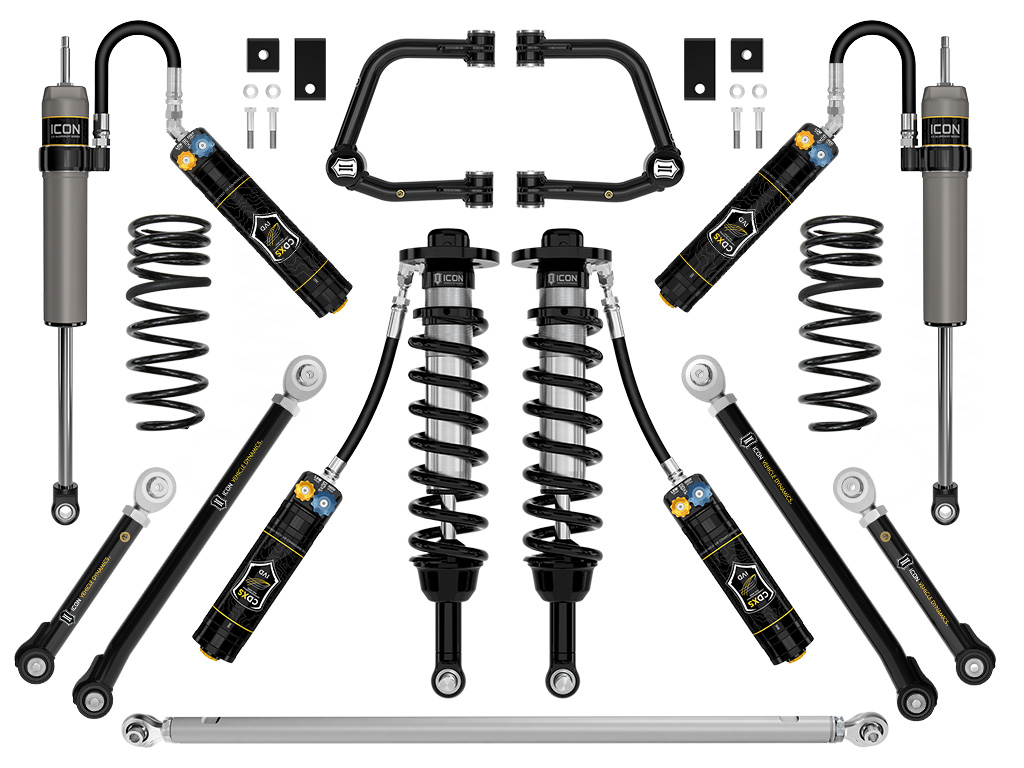

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 9 system with the addition of billet aluminum upper and lower rear links and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet rear link and track bar combo, a billet front upper control arm kit is included along with a front sway bar drop kit and dual rate rear coil springs and CDXS 2.5 Series coilovers and rear shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Dual Speed/Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	4
Minimum Lift Front	3
Minimum Lift Rear	2
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	Yes
Country of Origin	US
Condition	New
