ICON Vehicle Dynamics Suspension Lift Kit - K53251TS

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53251TS
SKU: K53251TS
Price: 8444.34 USD
Availability: InStock

23-25 SEQUOIA 3-4.25" STAGE 1 3.0 SUSPENSION SYSTEM TUBULAR CDCV (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53251TS

Old price: $8,866.54

Price: $8,444.34

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

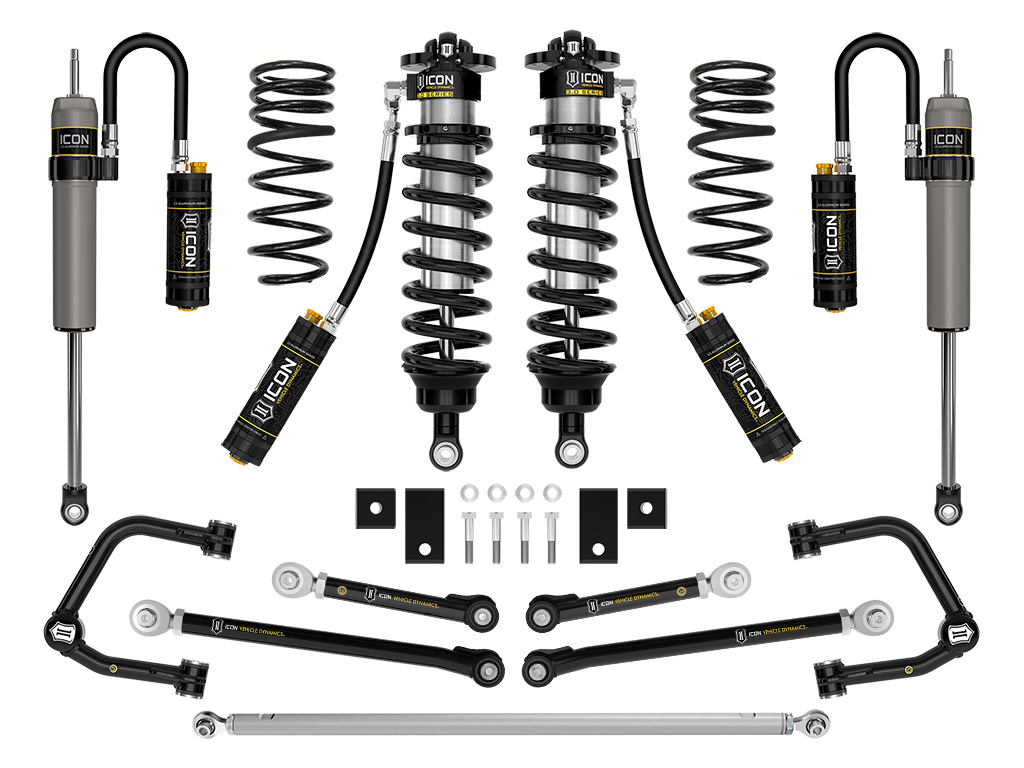

The ICON Vehicle Dynamics Stage 1 3.0 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 10 2.5 suspension system with the upgrade to 3.0 Series front coilovers. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDCV rear remote reservoir shocks are included along with tubular front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, adjustable rear track bar, and dual rate rear coil springs.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	3
Grade Type	Performance
Maximum Lift	4.25
Maximum Lift Front	4.25
Maximum Lift Rear	4
Minimum Lift Front	3
Front Spring Rate Type	Linear
Minimum Lift Rear	2
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT
Country of Origin	US
Condition	New
