ICON Vehicle Dynamics Suspension Lift Kit - K53399T

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53399T
SKU: K53399T
Price: 6941.01 USD
Availability: InStock

23-25 SEQUOIA TRD PRO 2.5" STAGE 9 SUSPENSION SYSTEM TUBULAR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53399T

Old price: $7,288.06

Price: $6,941.01

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

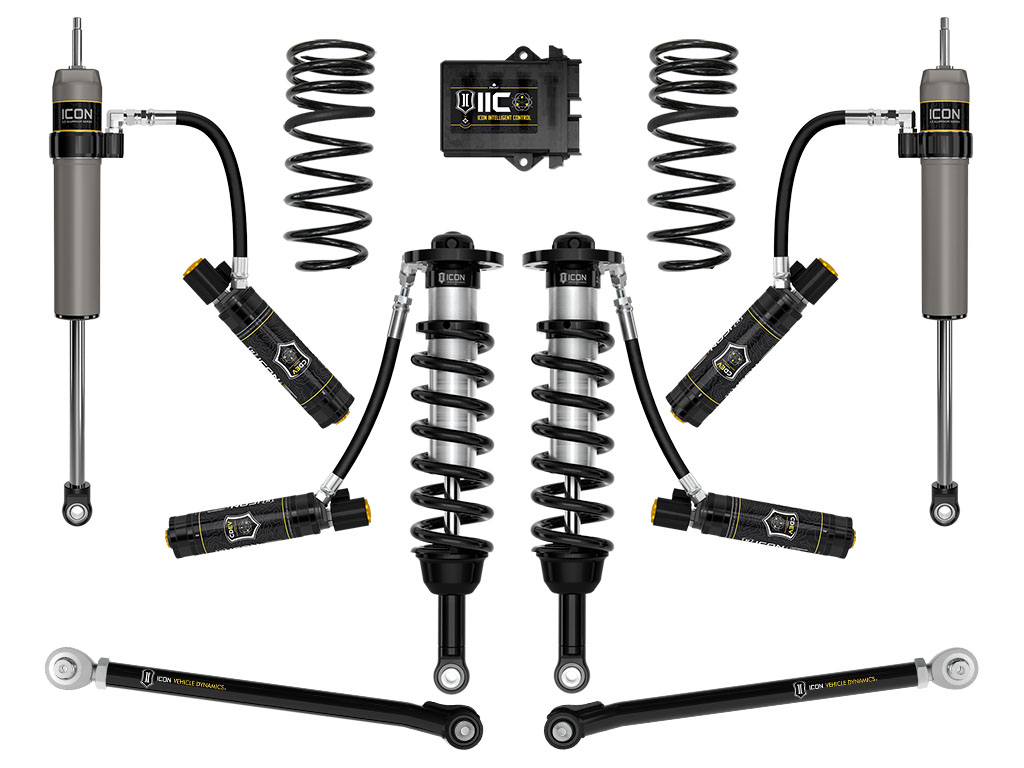

The ICON Vehicle Dynamics Stage 9 complete suspension system for the 2023-2025 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features 2.5 Series remote reservoir coilover shocks with CDEV for the front of the truck along with dual rate coil springs and our proven 2.5 Aluminum Series shocks with remote reservoirs and CDEV for the rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

Note: OEM Wheels & Tires Fitment: Yes

Watch product video

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Active
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Electronic
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	2.5
Maximum Lift Front	2.5
Maximum Lift Rear	2
Minimum Lift Front	1
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Front Spring Rate Type	Linear
Add-On Part	55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Country of Origin	US
Condition	New
