ICON Vehicle Dynamics Suspension Lift Kit - K53426

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53426
SKU: K53426
Price: 5274.09 USD
Availability: InStock

25 4RUNNER 2WD 1.25-3" LIFT STAGE 6 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53426

Old price: $5,537.80

Price: $5,274.09

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

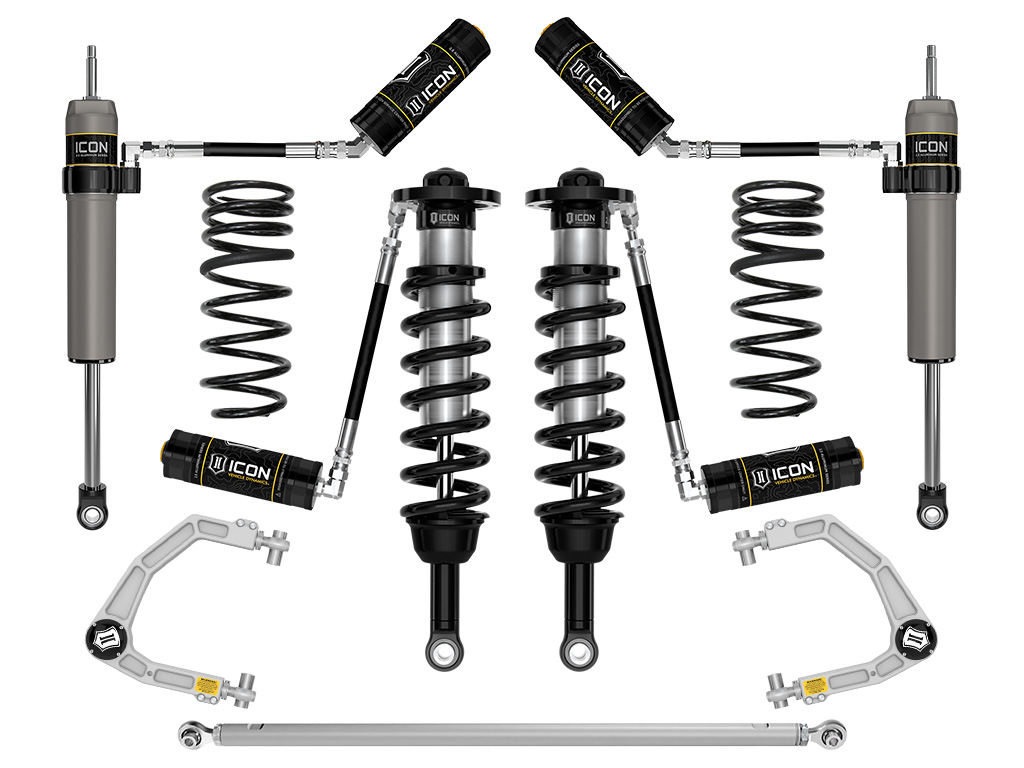

ICON Vehicle Dynamics 2025 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s specifically designed coilover lengths, optimized for 2WD models, maximizes the available front wheel travel for improved suspension performance.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 191013 - NIPPLE GREASING ADAPTER KIT, 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 252012 - -4 TO -10 HOSE SHIELD KIT, 56120 - 24-25 LAND CRUISER 250 SERIES/25 4RUNNER FRONT SKID PLATE, 56121 - 24-25 LAND CRUISER 250 SERIES/25 4RUNNER HYBRID TRANS SKID PLATE, 56122 - 24-25 LAND CRUISER 250 SERIES/25 4RUNNER FRONT SKID PLATE FASCIA, 56117 - 24-25 TACOMA/25 4RUNNER GAS TRANSMISSION SKID PLATE
Adjustable Compression	No
Adjustable Control Arm	yes
Adjustable Damping	No
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
Coil Spring Material	Steel
Coils Quantity Front	2
Coils Quantity Rear	2
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3
Maximum Lift Front	3
Maximum Lift Height Front	3
Maximum Lift Height Rear	.75
Maximum Lift Rear	.75
Minimum Lift Front	1.25
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset, 17x8.5 with 6.32” Backspace / 40mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Country of Origin	US
Condition	New
