ICON Vehicle Dynamics Suspension Lift Kit - K62564

Name: ICON Vehicle Dynamics Suspension Lift Kit - K62564
SKU: K62564
Price: 4212.63 USD
Availability: InStock

23 FORD F250/F350 DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K62564

Old price: $4,423.26

Price: $4,212.63

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

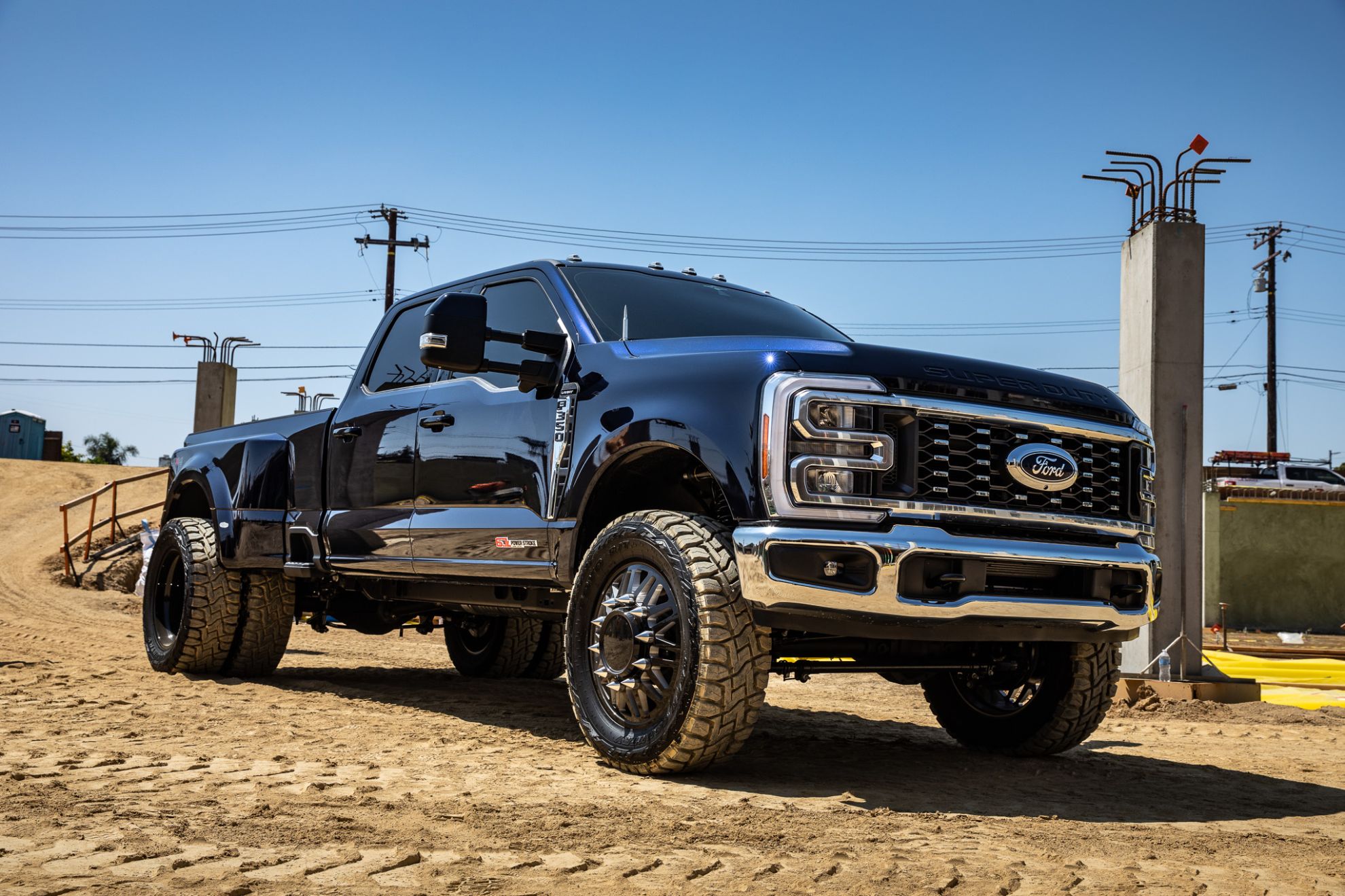

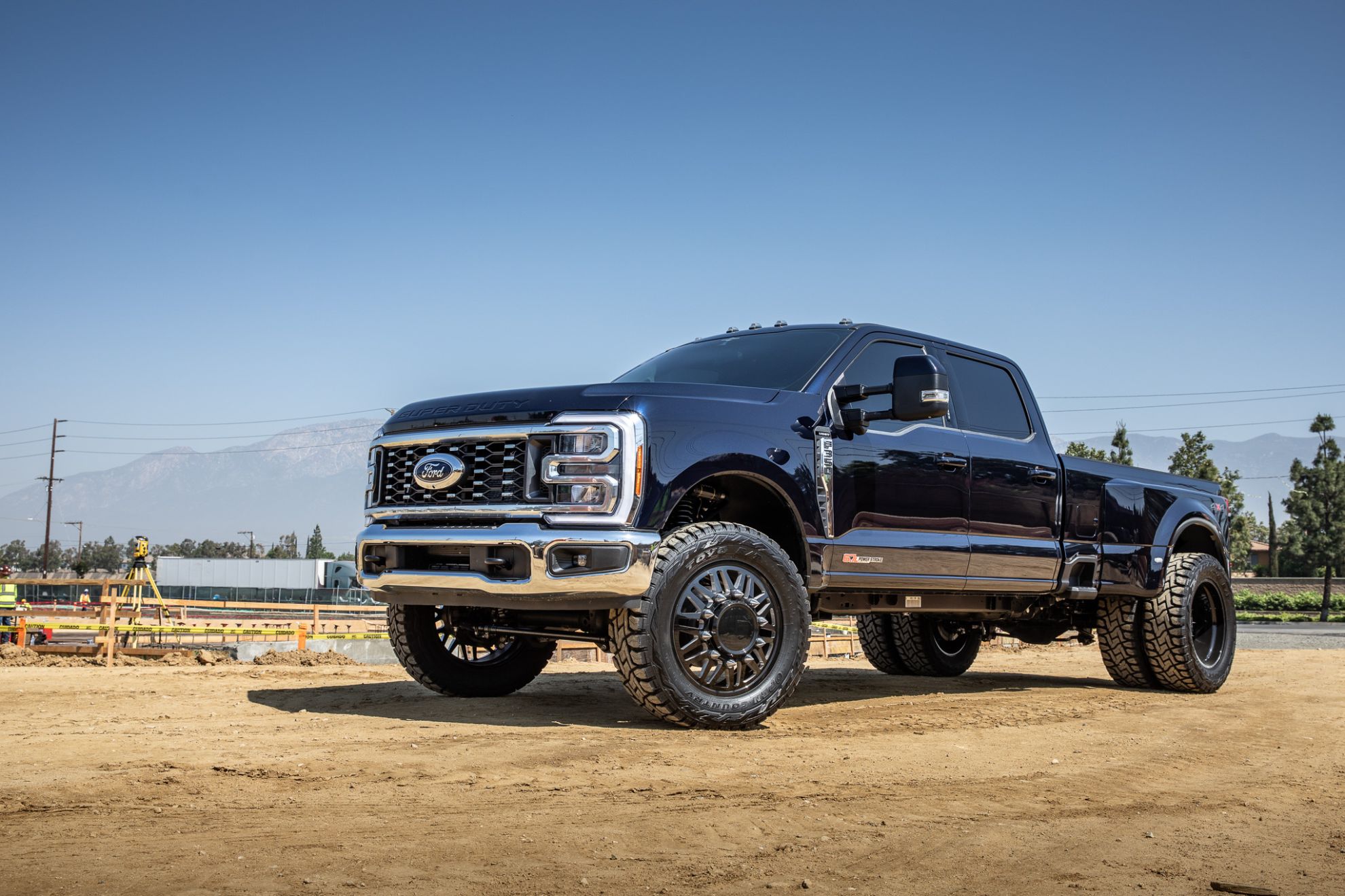

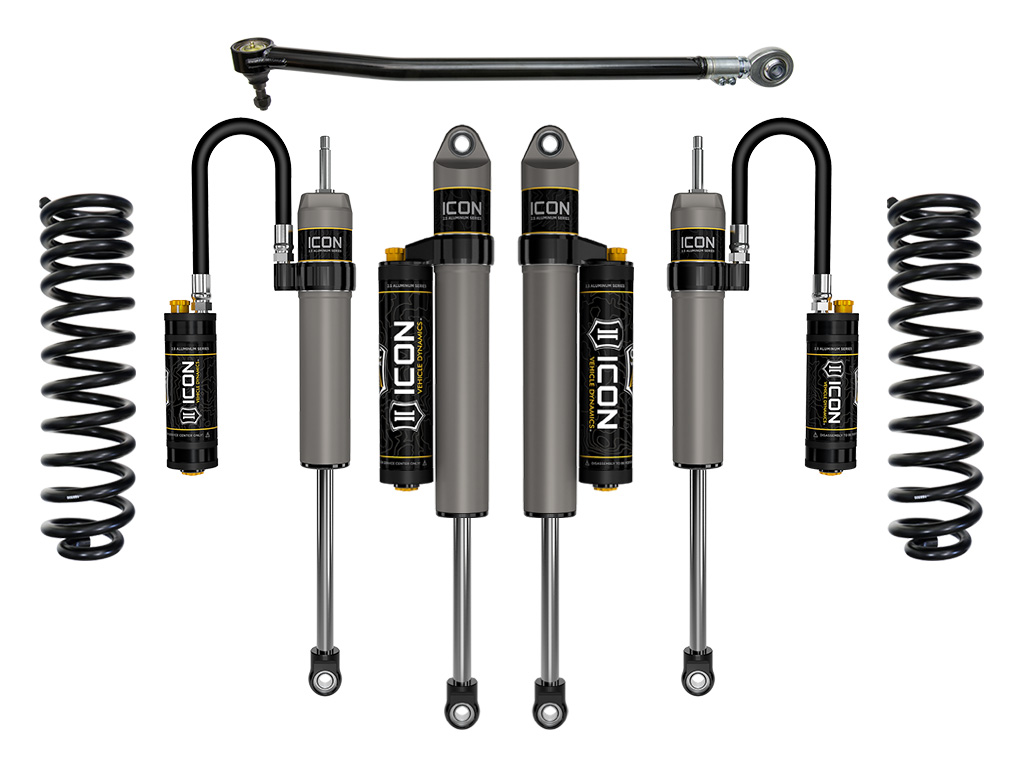

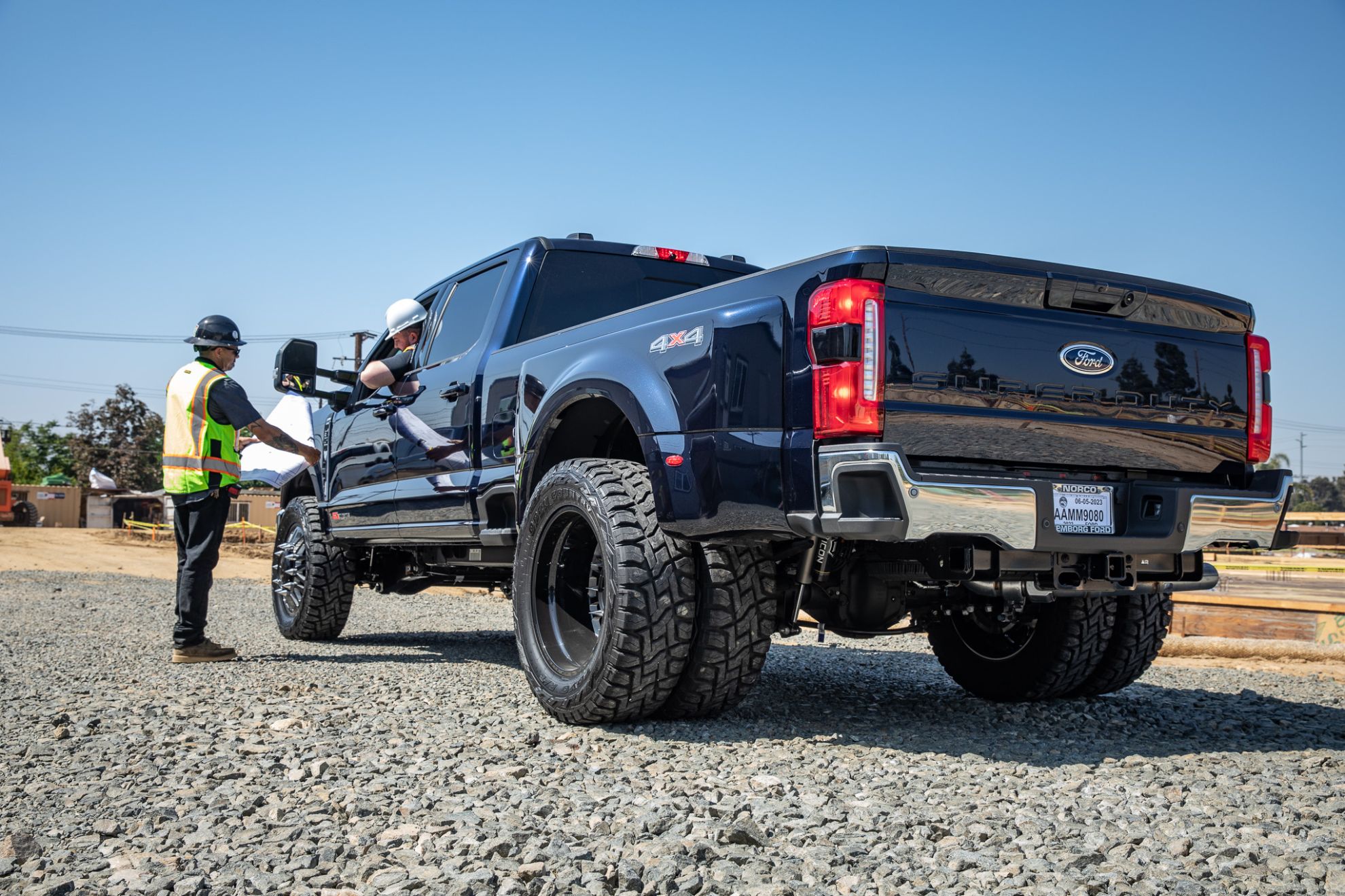

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty, and spirited off-road adventure. ICON's Stage 4 System combines dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams, ICON CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, and an all-new adjustable track bar designed specifically for the 2017-2024 Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Maximum Lift Height Front	2.5
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Piggyback
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Active or Passive Suspension	Passive
Add-On Part	191014 - .25" COLLAR SPANNER PIN WRENCH, 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Minimum Lift Front	1.5
Mounting Hardware Included	Yes
Front Shock Body Diameter	2.5
Front Spring Rate Type	Progressive Dual Rate
Grade Type	Performance
Maximum Lift	2.5
Maximum Lift Front	2.5
Coil Spring Material	Steel
Coils Quantity Front	2
Damping Adjustment Type	Manual
Dual Rate Coil Springs	Yes
Front Reservoir Style	Remote
Country of Origin	US
Condition	New
