ICON Vehicle Dynamics Suspension Lift Kit - K63178

Name: ICON Vehicle Dynamics Suspension Lift Kit - K63178
SKU: K63178
Price: 11915.60 USD
Availability: InStock

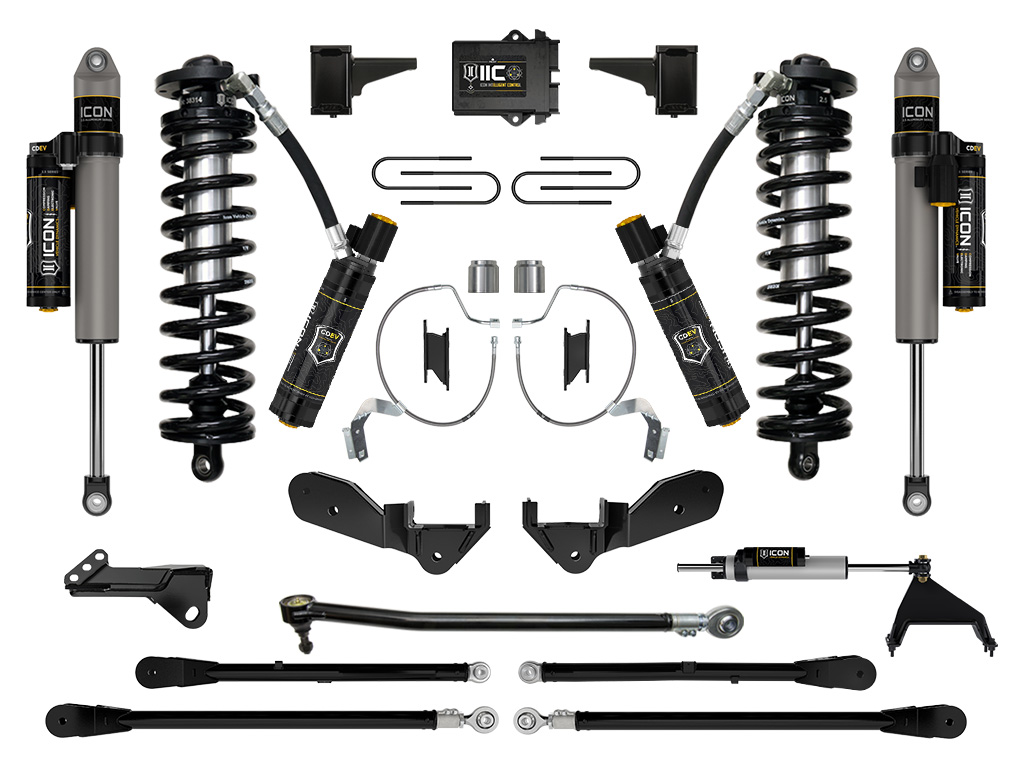

23-25 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONVERSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K63178

Old price: $12,511.38

Price: $11,915.60

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 8 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Leaf Spring Bracket Color	Black
Leaf Spring Bracket Material	Steel
Maximum Lift	6
Maximum Lift Front	6
Maximum Lift Height Front	6
Maximum Lift Height Rear	2
Maximum Lift Rear	2
Minimum Lift Front	3
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Piggyback
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Active or Passive Suspension	Active
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Coil Spring End 1 Type	Square
Coil Spring End 2 Type	Square
Coil Spring Material	Steel
Coils Quantity Front	2
Damping Adjustment Type	Electronic
Add-On Part	67811CP - 23-25 FSD 4.5" FRONT 2.5 VS RR CDCV PAIR, 66518 - 23-25 FSD 4WD 4.5" FRONT 2.0 VS IR, 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT, 66518R - 23-25 FSD 4WD 4.5" FRONT 2.0 VS RR, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 67811EP - 23-25 FSD 4.5" FRONT 2.5 VS RR CDEV PAIR, 252012 - -4 TO -10 HOSE SHIELD KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 198001 - BILLET SPANNER WRENCH KIT, 67811P - 23-25 FSD 4.5" FRONT 2.5 VS RR PAIR, 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Country of Origin	US
Condition	New
