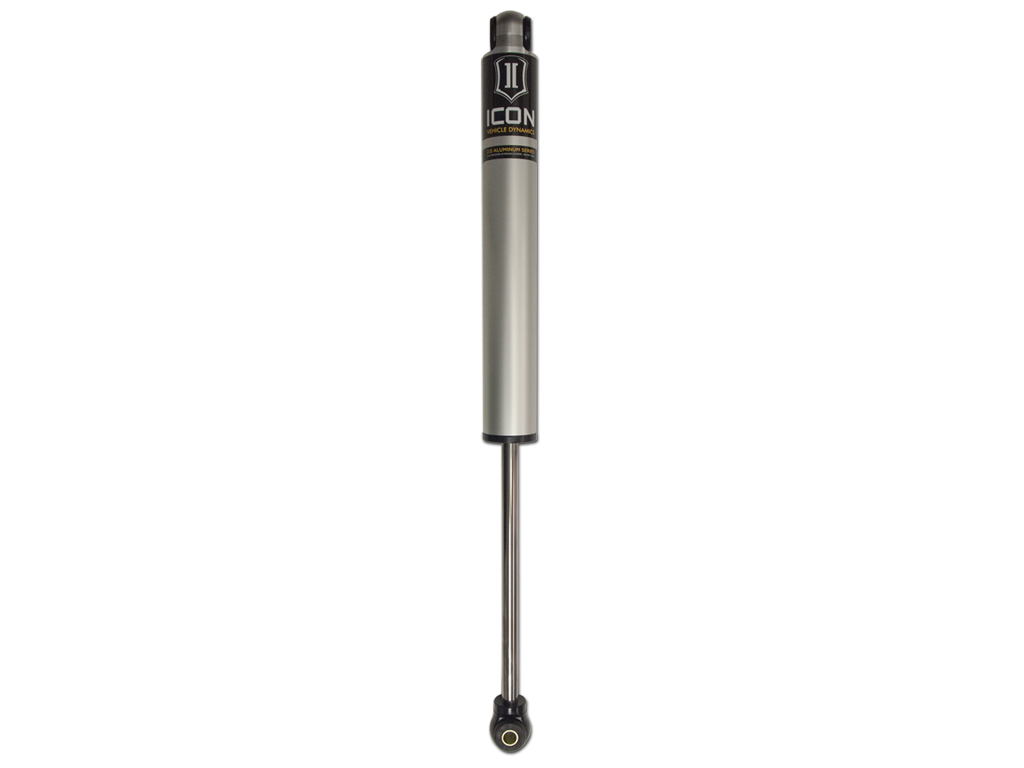

ICON Vehicle Dynamics Suspension Shock Absorber - 206511

UNIVERSAL 7.5" TRAVEL 2.0 NR IFSV

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 206511

Old price: $205.43

Price: $195.65

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Application: ICON UNIVERSAL 7.5" TRAVEL 2.0 NR IFSV

Note: TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
AAP_UDA_12	EA
AAP_UDA_22	1
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH)
Body Color	Gray
Body Diameter	2
Boot Included	No
Adjustable Damping	No
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Travel Length	7.45
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Mounting Hardware Included	No
Dust Shield Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Shield	NO
Remote Reservoir	No
Grade Type	Performance
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Shaft Diameter	0.625
Mounting Width	1.5" x 1/2" Bolt (Upper&Lower)
Compressed Length	11.55
Extended Length	19
Shock Stroke	7.45
Finish	Anodized
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252004 - ECONOMY NEEDLE CHARGING TOOL
Country of Origin	US
Condition	New
Quantity per Application	2
