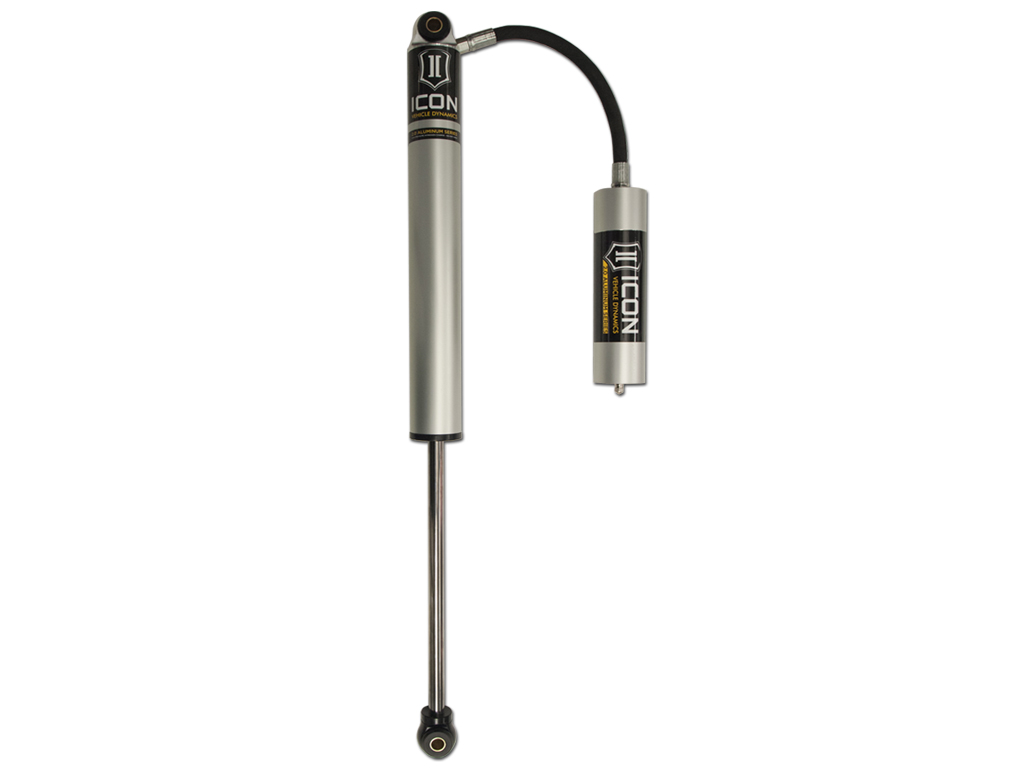

ICON Vehicle Dynamics Suspension Shock Absorber - 56502R

96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56502R

Old price: $324.40

Price: $308.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Products specifications

Attribute name	Attribute value
Boot Included	No
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 614700 - 2.0 SHOCK BOOT KIT (EACH), 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Coil Spring Insulator(s) Included	No
Coil-Over Springs Included	No
Configuration	Performance
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Rod Diameter	.625
Shaft Diameter	0.625
Quantity	1
Maximum Ride Height Raising Distance	1.5
Shock Absorber Bore Size	1.75
Cylinder Outside Diameter	2
Finish	Anodized
Cylinder Finish	Anodized
Shock Absorber Rod End Measuring Point	Center of Eylet
Shock Absorber Body End Measuring Point	Center of Eylet
Internal Rebound Spring	No
Includes Bump Stop	No
Hydraulic Lockout	No
Dust Boot Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Reservoir Type	Remote
Cylinder Color	Silver
Internal Construction Type	Single Tube
Suspension Type	Spring
Mounting Hardware Included	Yes
Gas Charged	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
External Reservoir	Yes
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Self-Leveling	No
Dust Shield Included	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Color	Silver, Gray, Black
Cylinder Material	Aluminum
Material	Steel, Aluminum
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
