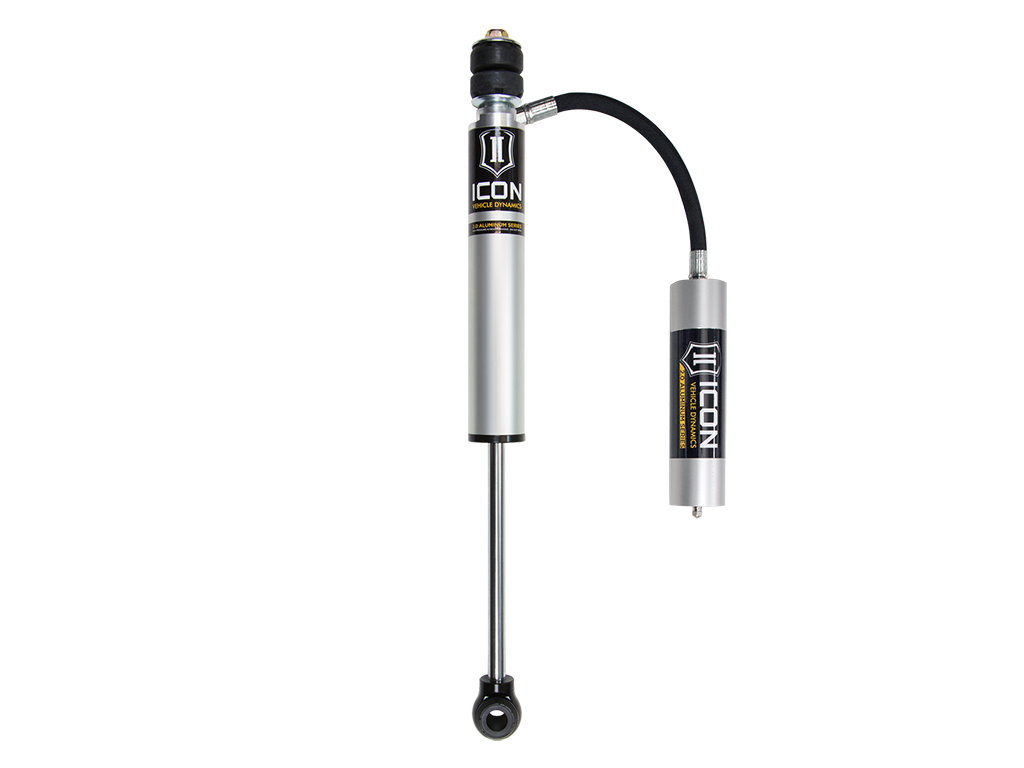

ICON Vehicle Dynamics Suspension Shock Absorber - 56516R

22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56516R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
AAP_UDA_12	EA
Reservoir Hose Inside Diameter	.25
Reservoir Diameter	2
Cylinder Outside Diameter	2
Body Diameter	2
Service Parts	202003 - 2.0 REMOTE RESI REBUILD KIT
Reservoir Hose Length	21
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Maximum Ride Height Raising Distance	3
Reservoir Length	8
Body Material	Aluminum
Finish	Anodized
Cylinder Finish	Anodized
Bushing Color	Black
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Body Color	Gray
Cylinder Color	Gray
Adjustable Compression	No
Adjustable Ride Height	No
Self-Leveling	No
Adjustable Rebound	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Adjustable Damping	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Rod Diameter	.625
Minimum Ride Height Raising Distance	0
Shaft Diameter	0.625
Quantity	1
Bore Diameter	1.75
Shock Absorber Bore Size	1.75
Reservoir Type	Remote
Dust Shield Material	Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Internal Construction Type	Single Tube
Suspension Type	Spring
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Boot Included	Yes
Gas Charged	Yes
Dust Shield Included	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
Bushing Included	yes
California Prop 65 Warning	Yes
Dust Boot Included	Yes
External Reservoir	Yes
Bushing Material	Rubber, Polyurethane
Material	Steel, Aluminum
Shaft Material	Chrome
Cylinder Material	Aluminum
Color	Black, Gray, Silver
Country of Origin	US
Condition	New
Quantity per Application	2
