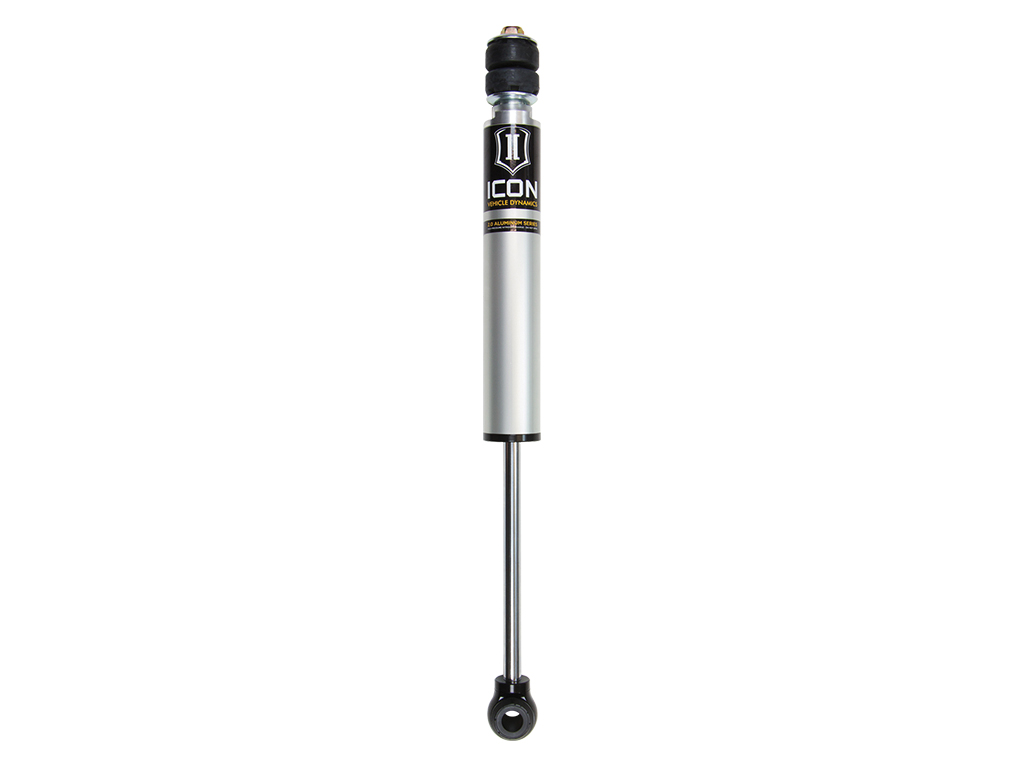

ICON Vehicle Dynamics Suspension Shock Absorber - 56523

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 56523
SKU: 56523
Price: 195.65 USD
Availability: OutOfStock

25 4RUNNER 0-3" REAR 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56523

Old price: $205.43

Price: $195.65

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name	Attribute value
Rod Diameter	.625
Cylinder Outside Diameter	2
Body Diameter	2
Service Parts	202002 - 2.0 IFP REBUILD KIT
Maximum Ride Height Raising Distance	3
AAP_UDA_4	55
Cylinder Material	Aluminum
Body Material	Aluminum
Material	Aluminum, Steel
Finish	Anodized
Cylinder Finish	Anodized
Boot Color	Black
Bushing Color	Black
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shaft Material	Chrome
Valving Type	Digressive, Linear
AAP_UDA_12	EA
Lower Mount Type	Eyelet
Body Color	Gray
Cylinder Color	Gray
Reservoir Type	Internal
Adjustable Compression	No
Adjustable Ride Height	No
Self-Leveling	No
Mounting Hardware Included	No
Boot Included	No
Adjustable Rebound	No
Internal Rebound Spring	No
Remote Reservoir	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Minimum Ride Height Raising Distance	0
Shaft Diameter	0.625
AAP_UDA_22	1
Shock Absorber Bore Size	1.75
Hydraulic Lockout	No
Adjustable Damping	No
Dust Shield	NO
External Reservoir	No
Damping Type	Oil
Active or Passive Suspension	Passive
Grade Type	Performance
Bushing Material	Polyurethane, Rubber
Dust Shield Material	Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Color	Silver, Black, Gray
Internal Construction Type	Single Tube
Suspension Type	Spring
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Dust Shield Included	Yes
Internal Rebound Bumper	Yes
Bushing Included	yes
California Prop 65 Warning	Yes
Country of Origin	US
Condition	New
Quantity per Application	2
