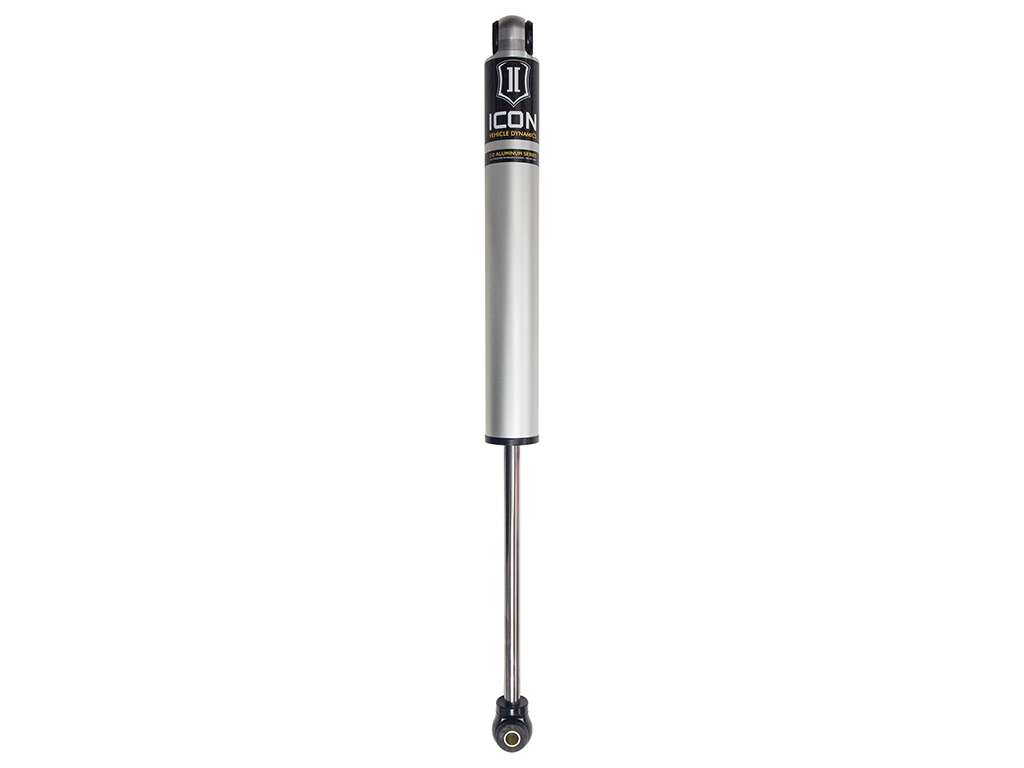

ICON Vehicle Dynamics Suspension Shock Absorber - 86533

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 86533
SKU: 86533
Price: 195.65 USD
Availability: InStock

22-25 FRONTIER 0-1.5" REAR 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 86533

Old price: $205.43

Price: $195.65

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name	Attribute value
Dust Boot Included	No
Dust Shield	NO
Dust Shield Included	Yes
External Reservoir	No
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Sleeve Inside Diameter	14
Lower Mount Sleeve Overall Length	1.65
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Ride Height Raising Distance	1.5
Minimum Ride Height Raising Distance	0
Mounting Hardware Included	No
Remote Reservoir	No
Reservoir Type	Internal
Rod Diameter	.625
Self-Leveling	No
Service Parts	202002 - 2.0 IFP REBUILD KIT
Shaft Diameter	0.625
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Suspension Type	Spring
Upper Mount Sleeve Inside Diameter	16
Damping Type	Oil
Cylinder Outside Diameter	2
Cylinder Material	Aluminum
Cylinder Finish	Anodized
Cylinder Color	Gray
Color	Gray, Silver, Black
Upper Mount Sleeve Overall Length	1.35
Upper Mount Type	Eyelet
Valving Type	Linear, Digressive
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable	No
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane, Rubber
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Spring Insulator(s) Included	No
Country of Origin	US
Condition	New
Quantity per Application	2
