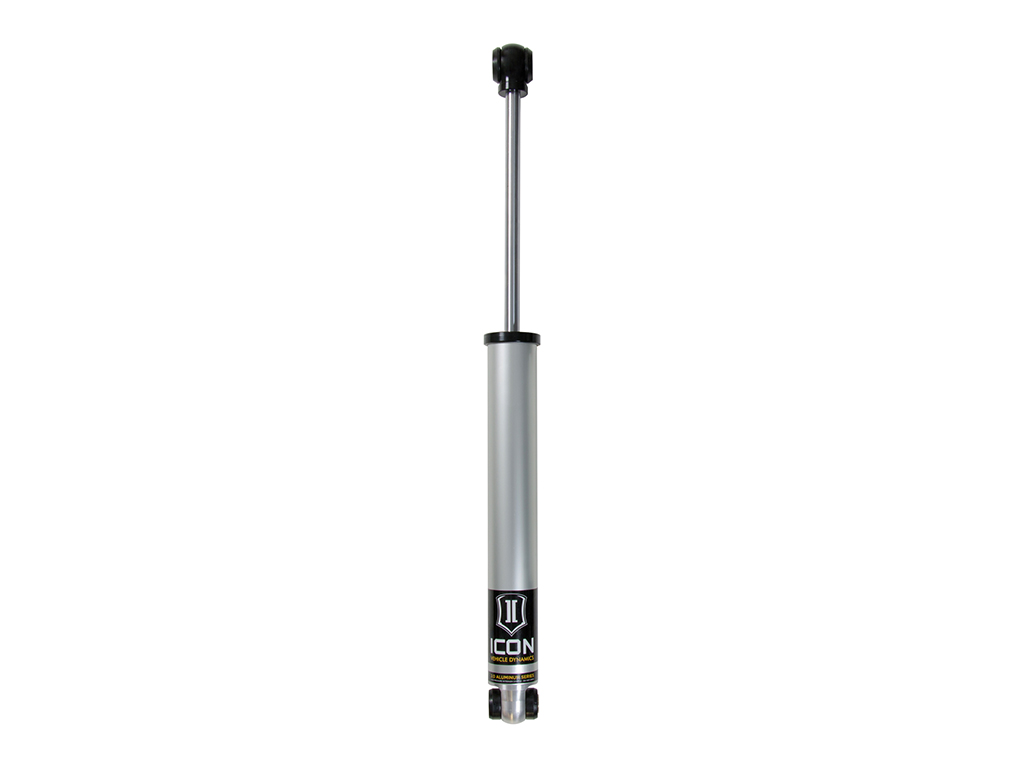

ICON Vehicle Dynamics Suspension Shock Absorber - 96519

19-23 RANGER 0-1.5" REAR 2.0 VS NR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 96519

Old price: $208.68

Price: $198.74

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Compatible with Rangers equipped with 0-1.5" of rear lift over stock

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
AAP_UDA_22	1
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Adjustable Damping	No
Finish	Anodized
Cylinder Finish	Anodized
Color	Black, Silver
Shock Absorber Rod End Measuring Point	Center of Eylet
Shock Absorber Body End Measuring Point	Center of Eylet
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Cylinder Color	Gray
Self-Leveling	No
Mounting Hardware Included	No
Dust Shield Included	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
External Reservoir	No
Remote Reservoir	No
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Internal Construction Type	Single Tube
Suspension Type	Spring
Material	Steel, Aluminum
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Rod Diameter	.625
Shaft Diameter	0.625
Quantity	1
Maximum Ride Height Raising Distance	1.5
Shock Absorber Bore Size	1.75
Cylinder Outside Diameter	2
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Service Parts	252004 - ECONOMY NEEDLE CHARGING TOOL, 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Cylinder Material	Aluminum
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
