ICON Vehicle Dynamics Suspension Shock Absorber Set - 57845XP

Name: ICON Vehicle Dynamics Suspension Shock Absorber Set - 57845XP
SKU: 57845XP
Price: 2379.95 USD
Availability: InStock

22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDXS PAIR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 57845XP

Old price: $2,498.95

Price: $2,379.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

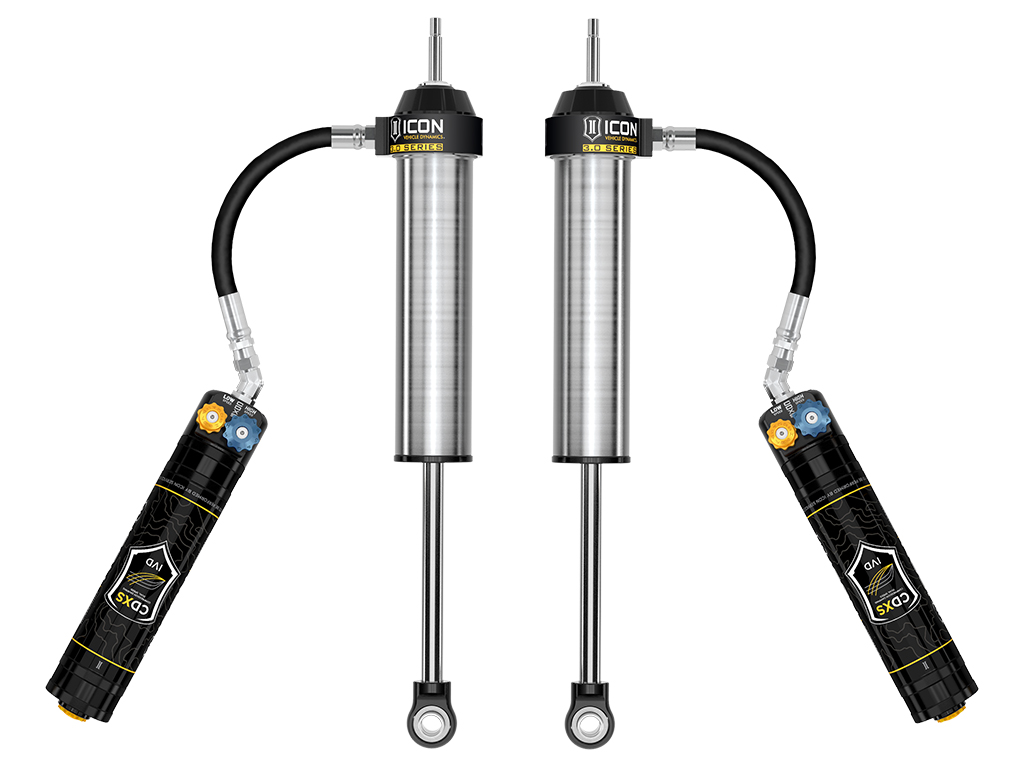

ICON's 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or 4" over stock on Sequoia.

Note: APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.

Products specifications

Attribute name	Attribute value
Adjustable	Yes
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Boot Included	No
Bore Diameter	2.75
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color	Grey
Cylinder Diameter	3
Cylinder Material	Steel
Damping Adjustment Type	Dual Speed/Manual
Damping Type	Oil
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
External Reservoir	Yes
Shaft Diameter	0.875
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Tube Outside Diameter	3
Upper Mount Type	Stem
Valving Type	Linear/Digressive
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Lower Mount Type	Eyelet
Mounting Hardware Included	Yes
Reservoir Type	Remote
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Country of Origin	US
Condition	New
