JE Pistons Engine Piston Kit - 166036

Name: JE Pistons Engine Piston Kit - 166036
SKU: 166036
Price: 899.99 USD
Availability: OutOfStock

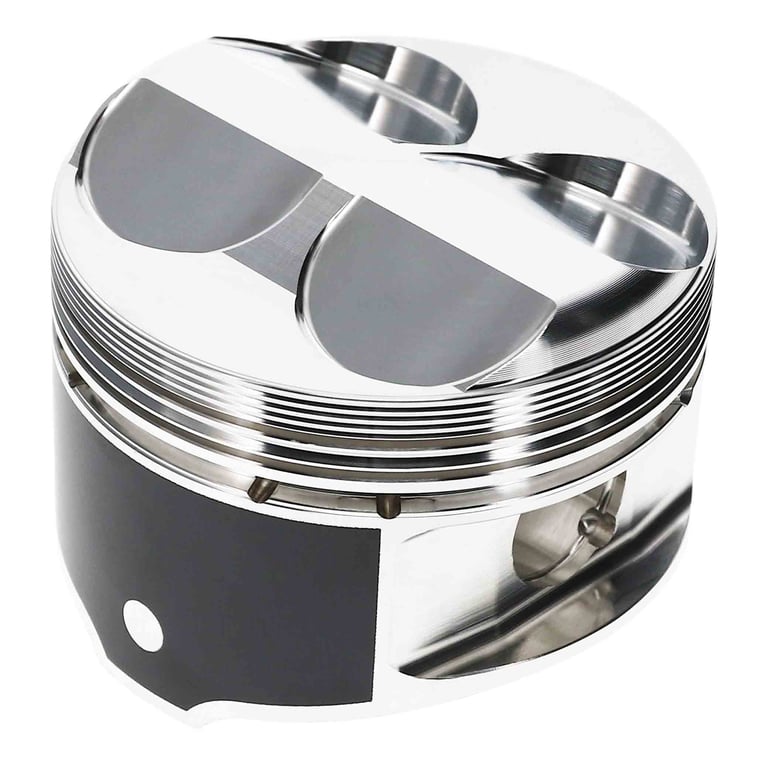

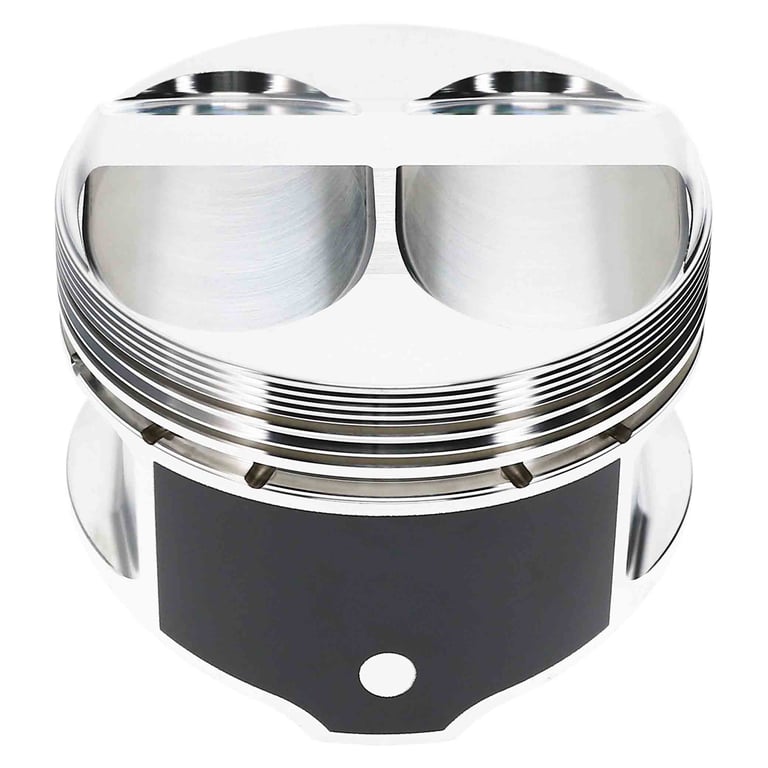

Piston Set, 2618, Dome, 3.425 Bore, 1.220 CD, 0.866 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 166036

$899.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Honda H22A1

Products specifications

Attribute name	Attribute value
Cylinder Head	H22A VTEC
Bore Diameter	87.00
Piston Head Type	Dome
Compression Height	1.220
Piston Volume	1.30
Material	2618
Piston Quantity	4
Forging Type	Round
Piston Average Weight	328
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.866
Wrist Pin Length	2.500
Wrist Pin Wall Thickness	0.150
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	87.00 MM
EBAY Category ID	33623
Country of Origin	US
Condition	New
