JE Pistons Engine Piston Kit - 170232

Name: JE Pistons Engine Piston Kit - 170232
SKU: 170232
Price: 1024.99 USD
Availability: OutOfStock

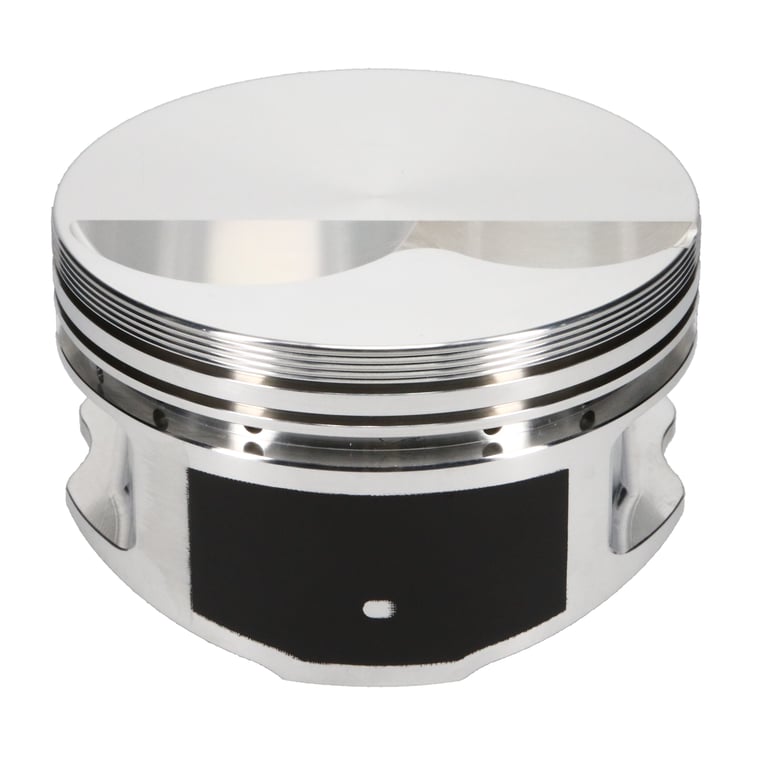

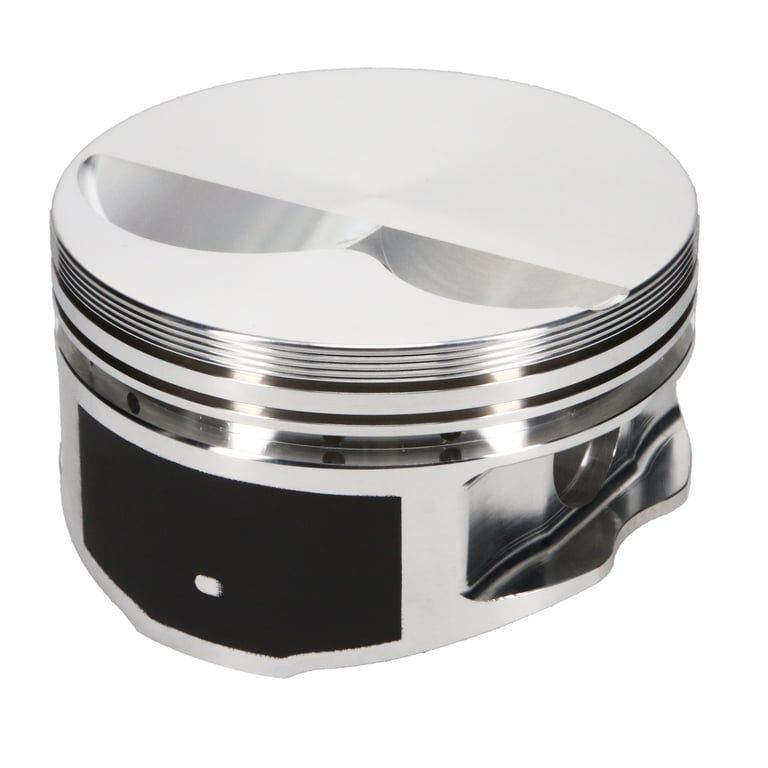

Piston Set, 2618, Flat Top, 4.030 Bore, 1.280 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 170232

$1,024.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Ford Small Block 351W Windsor

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	SMALL BLOCK FORD 20 DEG
Bore Diameter	4.030
Piston Head Type	Flat
Compression Height	1.280
Piston Volume	-5.00
Material	2618
Piston Quantity	8
Forging Type	Round
Piston Average Weight	478
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.188
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Product Type	Engine Piston Kit
Bore Diameter - Web	4.030 IN
EBAY Category ID	33623
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Country of Origin	US
Condition	New
