JE Pistons Engine Piston Kit - 172945

Name: JE Pistons Engine Piston Kit - 172945
SKU: 172945
Price: 1034.99 USD
Availability: OutOfStock

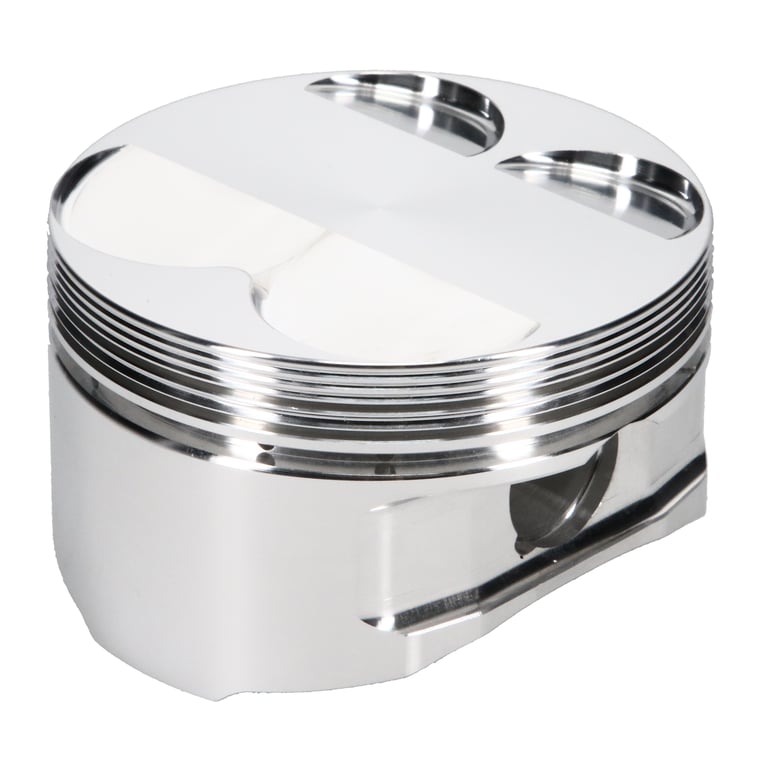

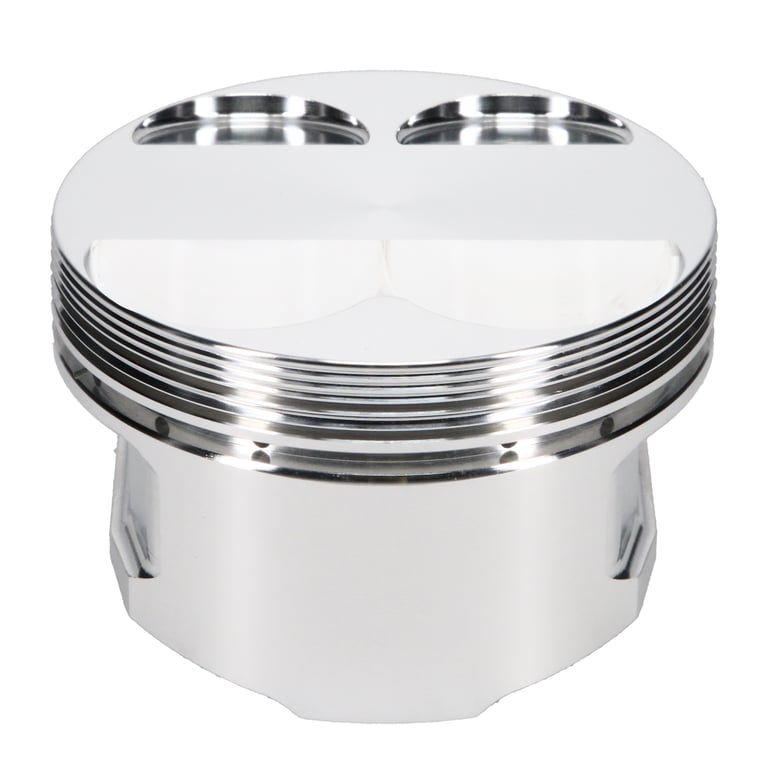

Piston Set, 2618, Flat Top, 3.307 Bore, 0.994 CD, 0.787 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 172945

$1,034.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for sport bike and other motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and riding application to provide the ultimate combination of durability and performance. From the road course to the drag strip everything in between, JE Pistons? performance is proven with every handful of throttle and wave of the checkered flag. Equip your bike with the best in forged pistons.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Piston Average Weight	244
Ring Set Included	Yes
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter	0.787
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.110
Product Type	Engine Piston Kit
Category Hierarchy	Powersports>Pistons>Piston Kits>Street
Forging Type	Round
Material	2618
Piston Volume	0.00
Piston Head Type	Flat
Compression Ratio Actual	12.80:1
Bore Diameter	84.00
Cylinder Head	BMW 4 VALVE
EBAY Category ID	177976
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	84.00 MM
Country of Origin	US
Condition	New
