JE Pistons Engine Piston Kit - 207481

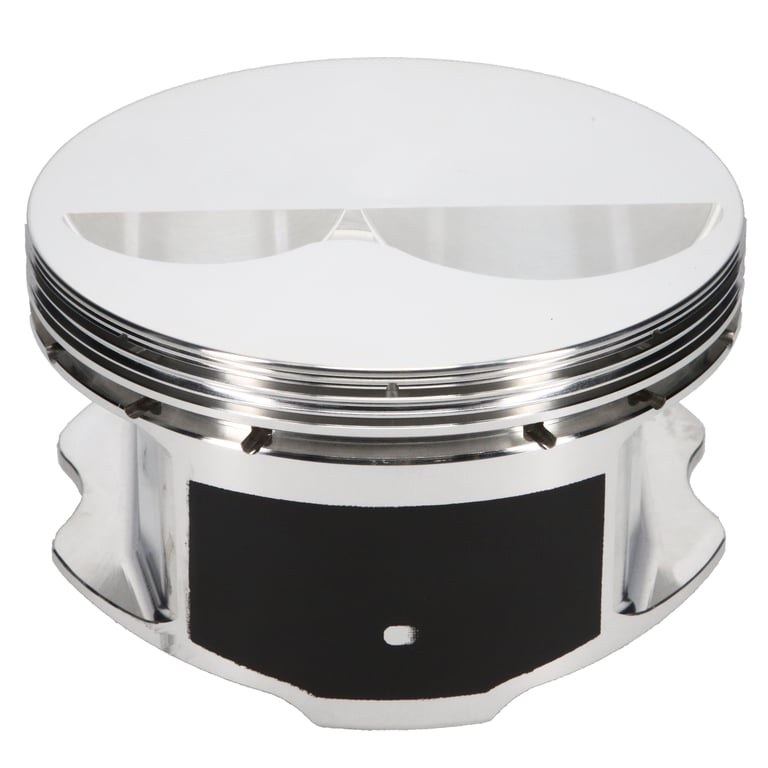

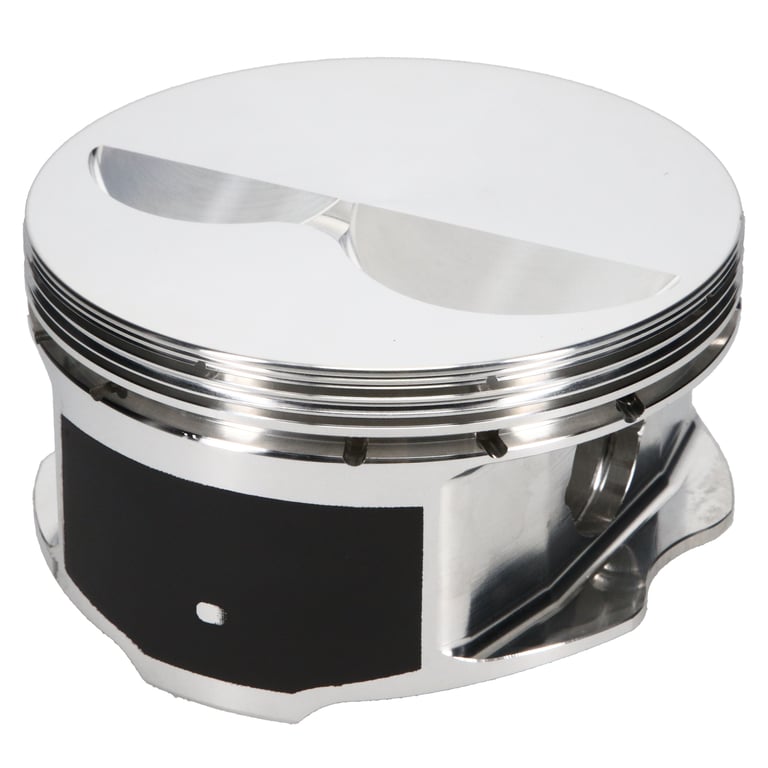

Piston Set, 2618, Flat Top, 4.035 Bore, 1.000 CD, 0.927 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 207481
$1,099.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Ultra Series forged pistons from JE are the industry?s strongest, most fully featured pistons available off the shelf. Offered for a wide range of domestic applications from LS to Big Block and HEMI to Ford Modular, Ultra Series pistons feature JE?s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with custom level features including thermal barrier crown coating, skirt coating, gas ports, and more, Ultra Series are the ideal pistons for your boost-heavy or nitrous-huffing V8 engine build. As with all JE Pistons products, Ultra Series pistons are made 100% in the USA.

Application: Chevrolet Small Block 350

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Piston Series JE Ultra Series
Cylinder Head STD CHEVROLET 23 DEG
Bore Diameter 4.035
Piston Head Type Flat
Compression Height 1.000
Piston Volume -1.80
Material 2618
Forging Type Round
Piston Average Weight 318
Ring Set Included No
Top Compression Ring Thickness 0.0436
Second Compression Ring Thickness 0.0440
Oil Ring Thickness 0.119
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.927
Wrist Pin Length 2.400
Wrist Pin Wall Thickness 0.130
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.035 IN
EBAY Category ID 33623
Country of Origin US
Condition New
